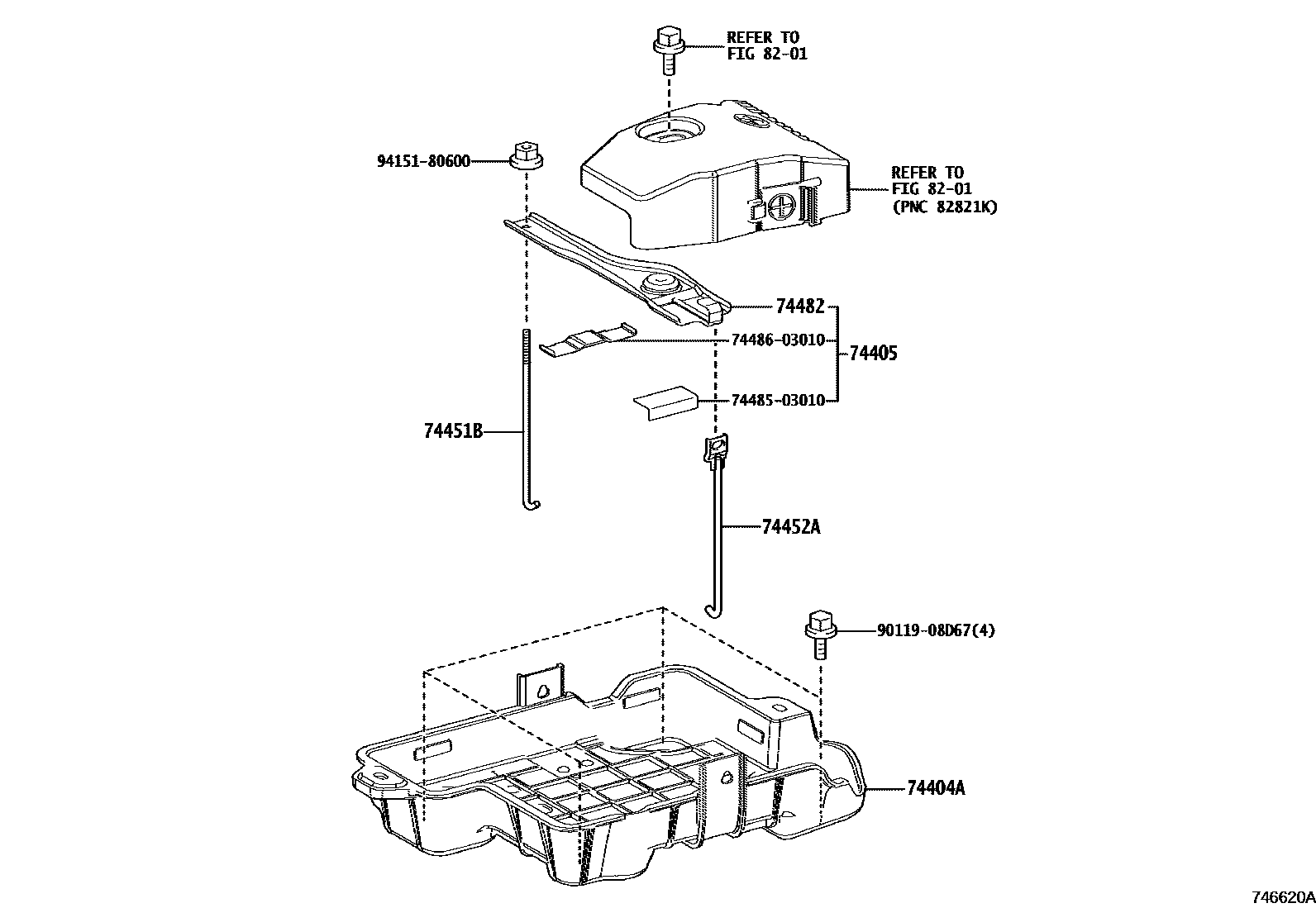

Toyota BZ3 — BATTERY CARRIER

0001 1 0003 1

74404ACLAMP SUB-ASSY, BATTERY

main74404-03020iBEJG10202407-202411

main74404-03020iBEAM10202301

main74404-03040iBEJG10202412

74405CLAMP SUB-ASSY, BATTERY, NO.2

main74405-03020iBEJG10202407-202411

sub74405-03040

main74405-03020iBEAM10202301

sub74405-03040

main74405-03040iBEJG10202412

74451BBOLT, BATTERY CLAMP

main74451-03020iBEJG10202407

main74451-03020iBEAM10202301

74452ABOLT, BATTERY CLAMP, NO.2

main74452-03010iBEJG10202407-202412

main74452-03010iBEAM10202301

74482CLAMP, BATTERY, NO.2

main74482-03020iBEJG10202407-202412

main74482-03020iBEAM10202301

8201

7448503010PLATE, BATTEY HOLD DOWN CLAMP, RH

main74485-03010

7448603010SUPPORT, BATTERY CLAMP, LOWER

main74486-03010

9011908D67

main90119-08D67¥160

9415180600

main94151-80600¥60

10 parts on this diagram · 2 diagrams in section
