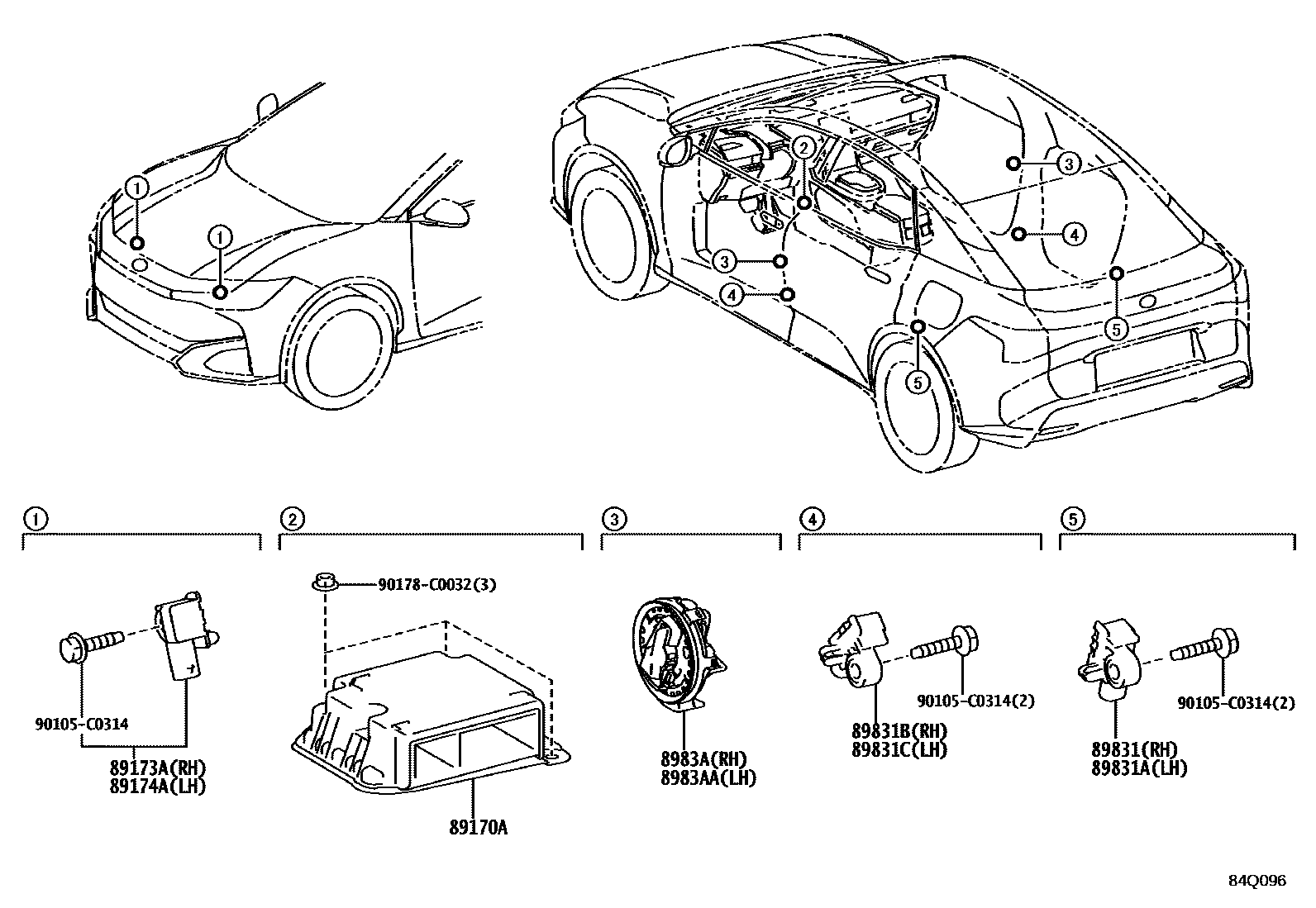

Toyota BZ3 — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-03010iBEJG10..J,M,N202407

main89170-03010iBEAM10202301

main89170-03030iBEJG10..H202407

89173ASENSOR, AIRBAG, FRONT RH

main89173-09E00iBEAM10202301

main89173-09E00iBEJG10202407

89174ASENSOR, AIRBAG, FRONT LH

main89173-09E00iBEJG10202407

main89173-09E00iBEAM10202301

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-03010iBEJG10202407

main89831-03010iBEAM10202301

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-03010iBEJG10202407

main89831-03010iBEAM10202301

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-03010iBEJG10202407

main89831-03010iBEAM10202301

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-03010iBEJG10202407

main89831-03010iBEAM10202301

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-03010iBEJG10202407

main8983A-03010iBEAM10202301

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-03010iBEJG10202407

main8983A-03010iBEAM10202301

90105C0314

main90105-C0314

90178C0032

main90178-C0032

11 parts on this diagram · 1 diagram in section
