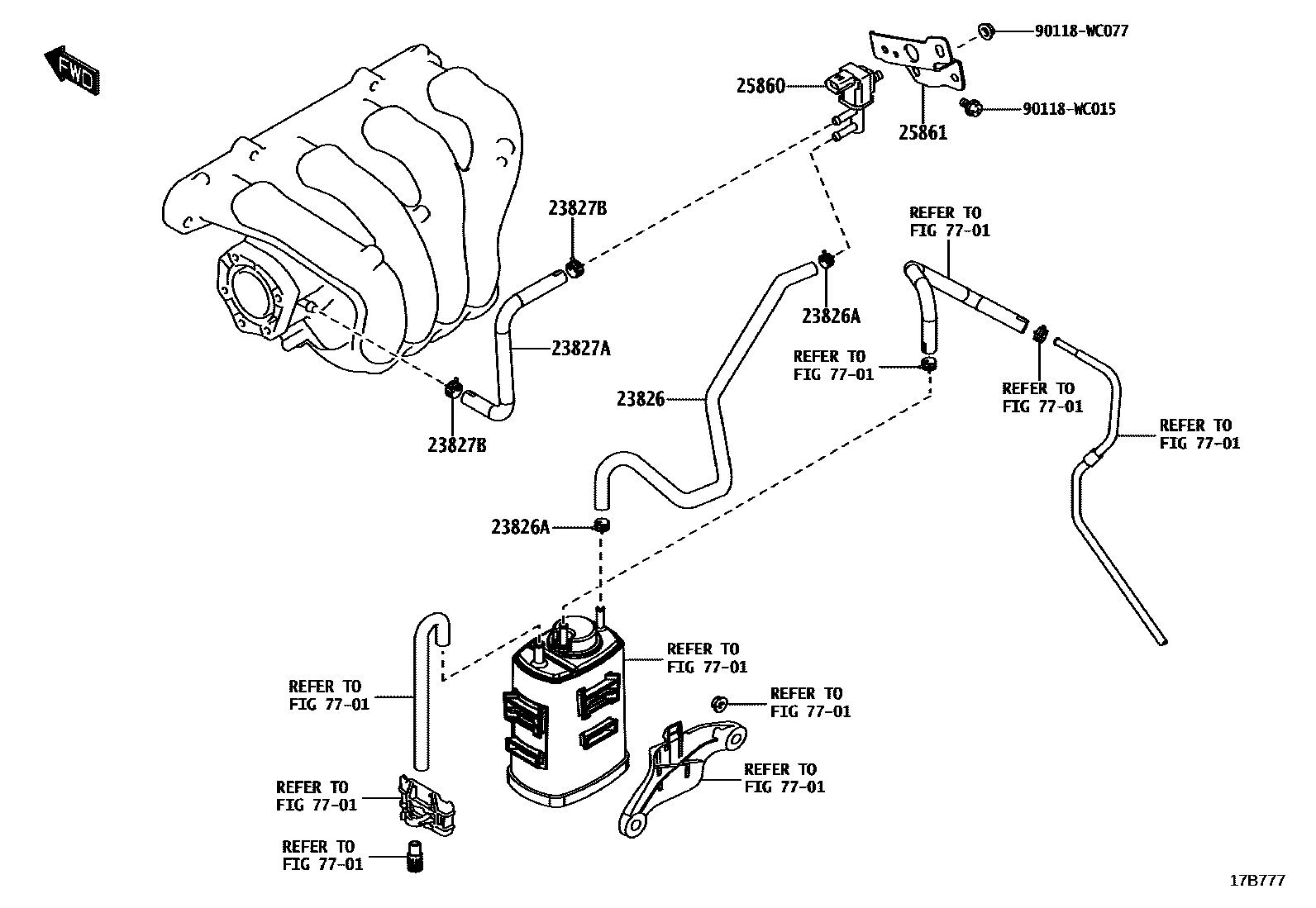

Toyota BELTA — VACUUM PIPING

0001 1 0002 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23286-WC001

main23826-WC009

main23826-WC026

main90118-WC234

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

23827AHOSE, FUEL VAPOR FEED, NO.2

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-WC001

25861BRACKET, VACUUM SWITCHING VALVE

main25861-WC001

7701

90118WC015

main90118-WC015

90118WC077

main90118-WC077

9 parts on this diagram · 2 diagrams in section
