Toyota BELTA — TIMING GEAR COVER & REAR END PLATE

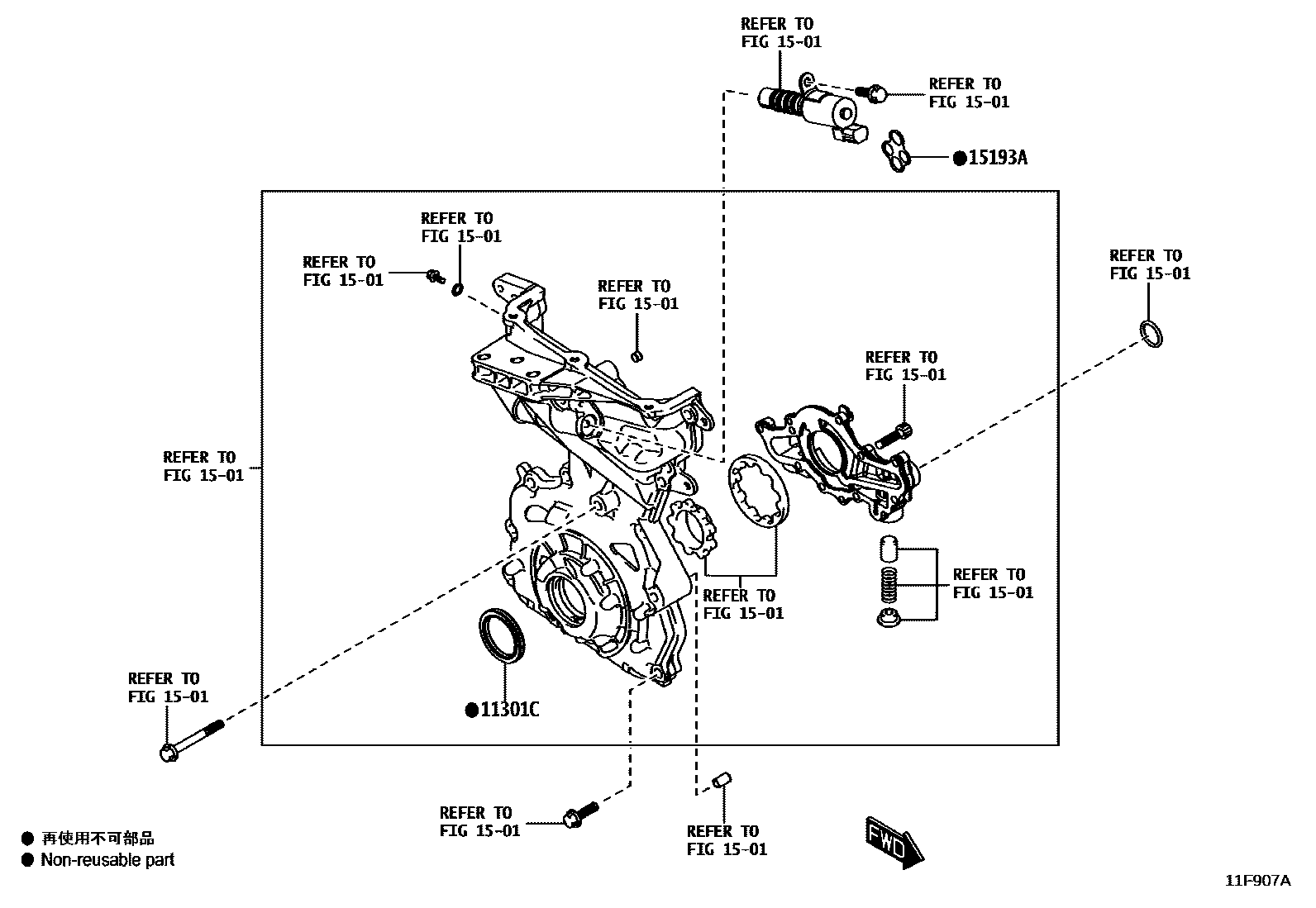

Parts diagram

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

1501

15193AGASKET, OIL PUMP

3 parts on this diagram · 2 diagrams in section
