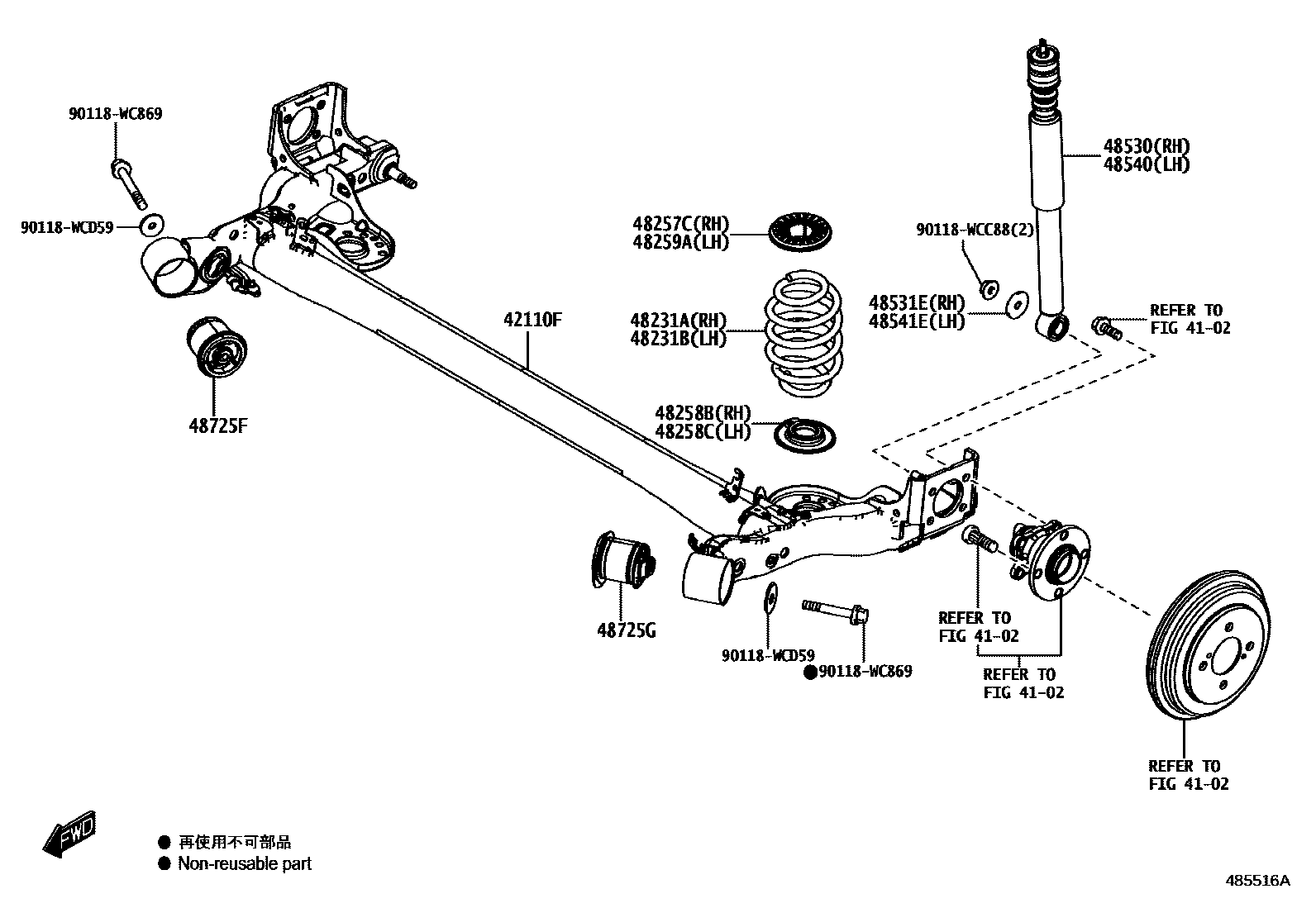

Toyota BELTA — REAR SPRING & SHOCK ABSORBER

4102

42110FBEAM ASSY, REAR AXLE

48231ASPRING, COIL, REAR RH

48231BSPRING, COIL, REAR LH

48257CINSULATOR, REAR COIL SPRING, UPPER RH

48258BINSULATOR, REAR COIL SPRING, LOWER RH

48258CINSULATOR, REAR COIL SPRING, LOWER LH

48259AINSULATOR, REAR COIL SPRING, UPPER LH

48530ABSORBER ASSY, SHOCK, REAR RH

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

48540ABSORBER ASSY, SHOCK, REAR LH

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

48725FBUSH, REAR AXLE CARRIER, RH

48725GBUSH, REAR AXLE CARRIER, LH

90118WC869

90118WCC88

90118WCD59

17 parts on this diagram · 1 diagram in section
