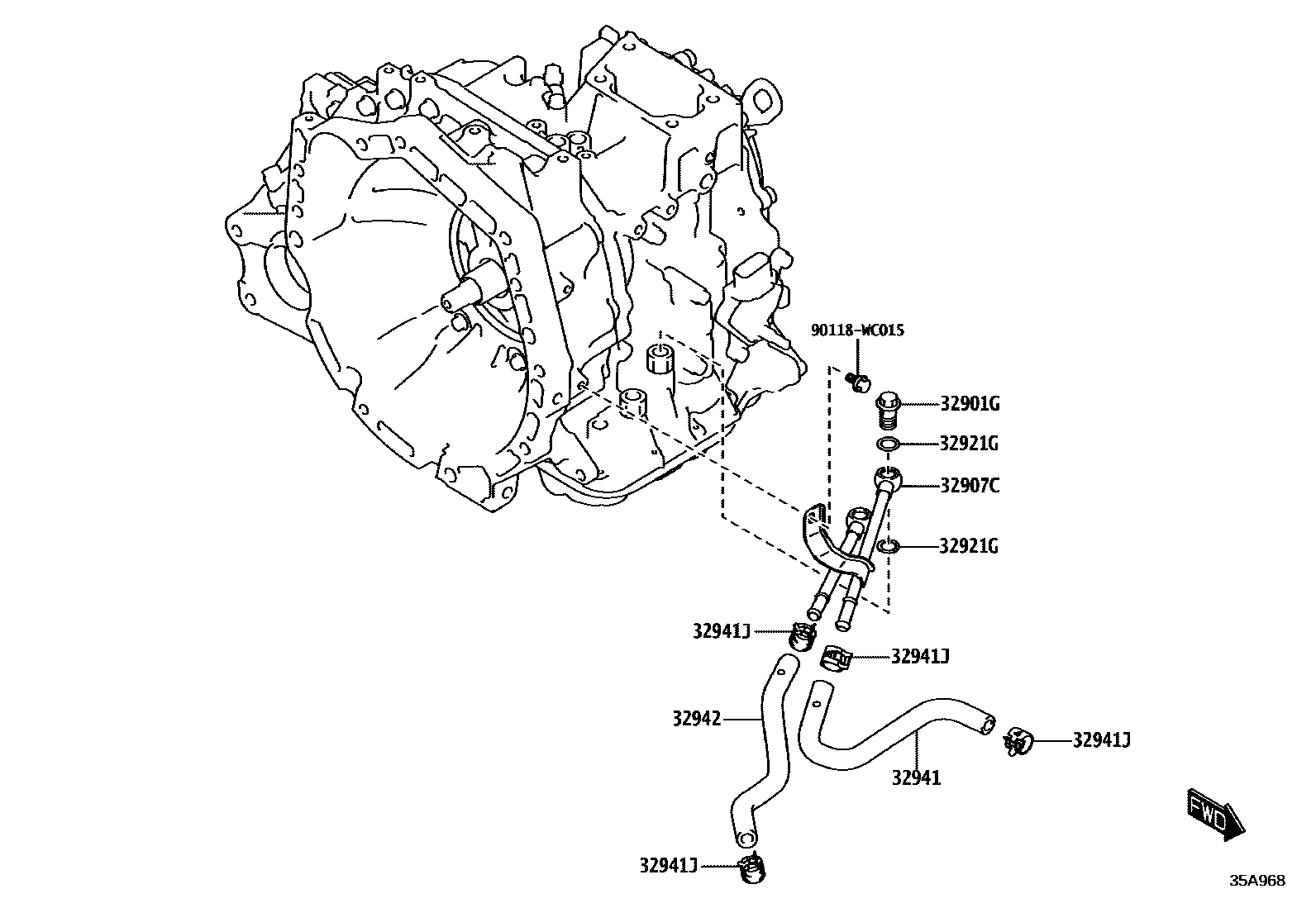

Toyota BELTA — OIL COOLER & TUBE (ATM)

32901GBOLT, UNION(FOR OIL COOLER)

32907CTUBE SUB-ASSY, OIL COOLER W/O HOSE, NO.1

32921GRING, O(FOR OIL COOLER TUBE UNION)

32941HOSE, OIL COOLER INLET, NO.1

main32941-WC004

main90118-WC687

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-WC004

90118WC015

main90118-WC015

7 parts on this diagram · 1 diagram in section
