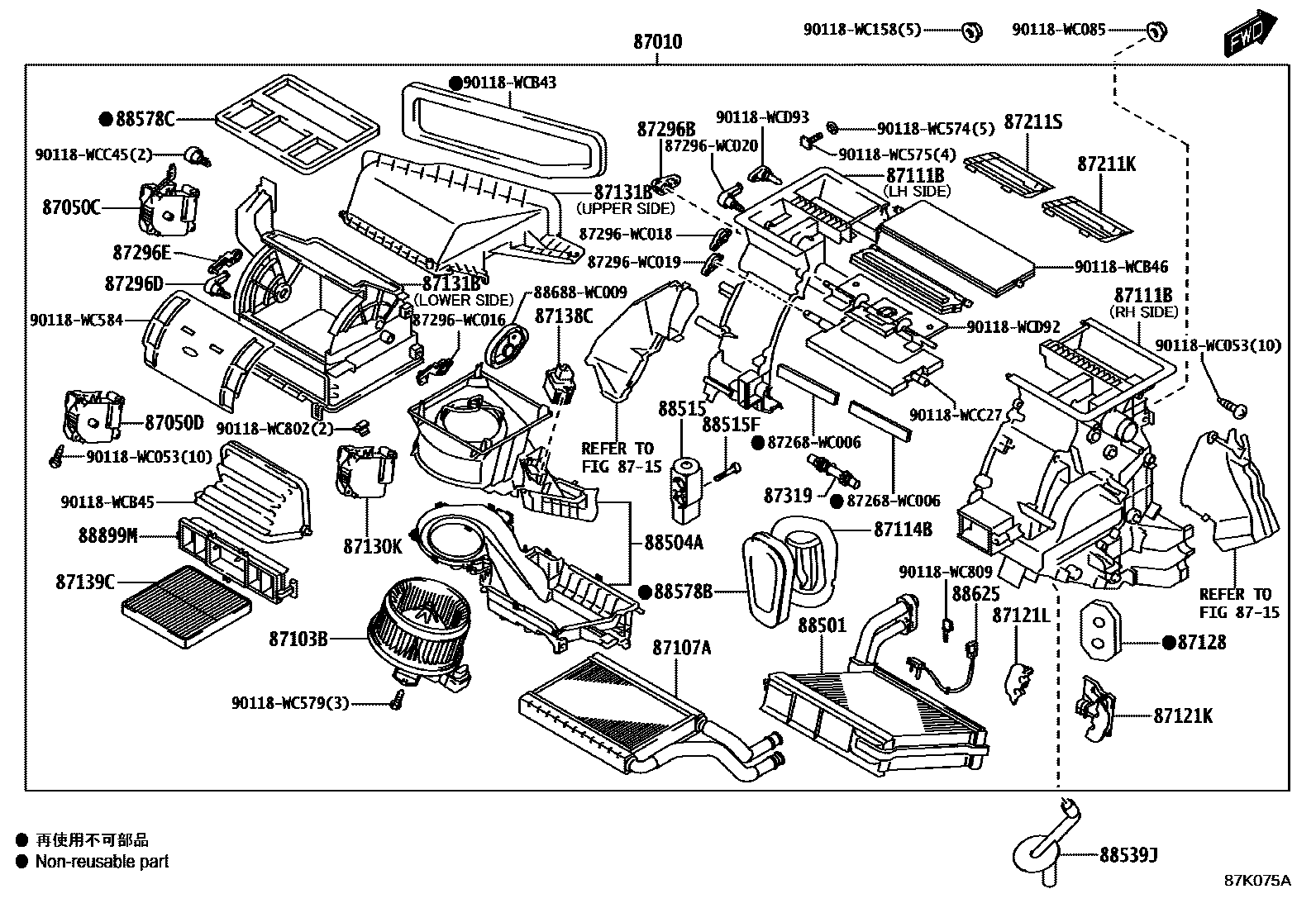

Toyota BELTA — HEATING & AIR CONDITIONING - COOLER UNIT
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87111BCASE, HEATER
87114BCOVER, HEATER
87121KBRACKET, HEATER
87121LBRACKET, HEATER
87128GROMMET, HEATER
main87128-WC001
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87131BCASE, HEATER BLOWER
87138CRESISTOR, BLOWER
87139CFILTER, CLEAN AIR
8715
87211KDUCT, AIR
87211SDUCT, AIR
87296BLEVER, HEATER AIR DAMPER CONTROL
87296DLEVER, HEATER AIR DAMPER CONTROL, NO.2
87296ELEVER, HEATER AIR DAMPER CONTROL, NO.3
88504ACASE SUB-ASSY, BLOWER
88515FBOLT(FOR COOLER EXPANSION VALVE)
88539JHOSE, DRAIN COOLER
88578BPACKING, COOLING UNIT, NO.1
88578CPACKING, COOLING UNIT, NO.2
88625THERMISTOR, COOLER, NO.1
main88625-WC003
88899MPLATE, COVER(FOR AIR FILTER)
87268WC006COCK, WATER HOSE DRAIN(FOR REAR HEATER)
main87268-WC006
87296WC016WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC016
87296WC018WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC018
87296WC019WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC019
87296WC020WIRING, HEATER, NO.2 (FOR SWITCH TO HEATER)
main87296-WC020
88688WC009BRACKET, COOLER DIAPHRAGM
main88688-WC009
90118WC053
main90118-WC053
90118WC085
main90118-WC085
90118WC158
main90118-WC158
90118WC574
main90118-WC574
90118WC575
main90118-WC575
90118WC579
main90118-WC579
90118WC584
main90118-WC584
90118WC802
main90118-WC802
90118WC809
main90118-WC809
90118WCB43
main90118-WCB43
90118WCB45
main90118-WCB45
90118WCB46
main90118-WCB46
90118WCC27
main90118-WCC27
90118WCC45
main90118-WCC45
90118WCD92
main90118-WCD92
90118WCD93
main90118-WCD93
52 parts on this diagram · 2 diagrams in section
