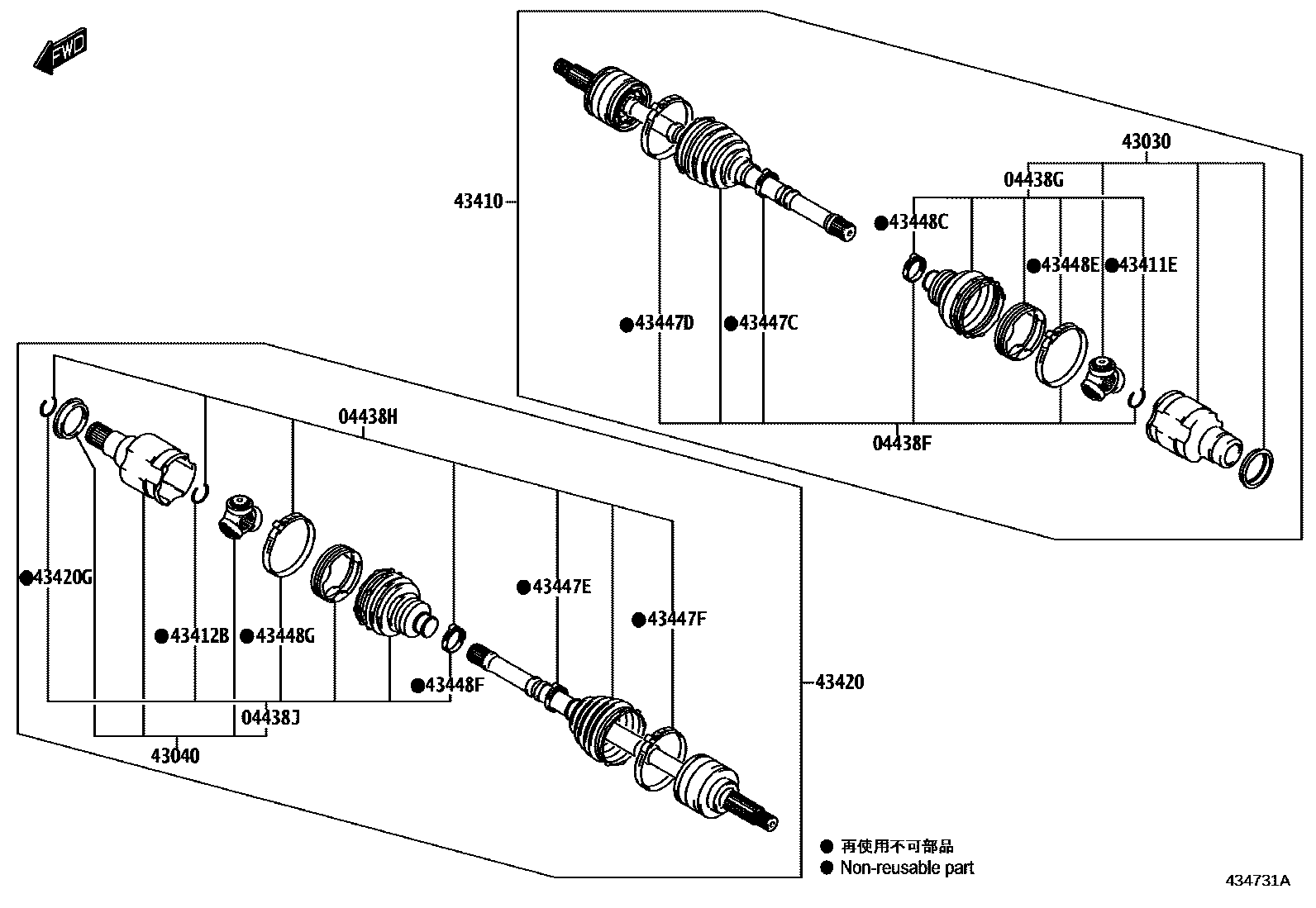

Toyota BELTA — FRONT DRIVE SHAFT

0001 1 0002 1 0003 1 0004 1

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-WC005

main43030-WC006

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-WC007

main43040-WC008

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-WC009

main43410-WC010

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

43420SHAFT ASSY, FRONT DRIVE, LH

main43425-WC001

main43425-WC004

main43420-WC009

main43420-WC010

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

19 parts on this diagram · 4 diagrams in section
