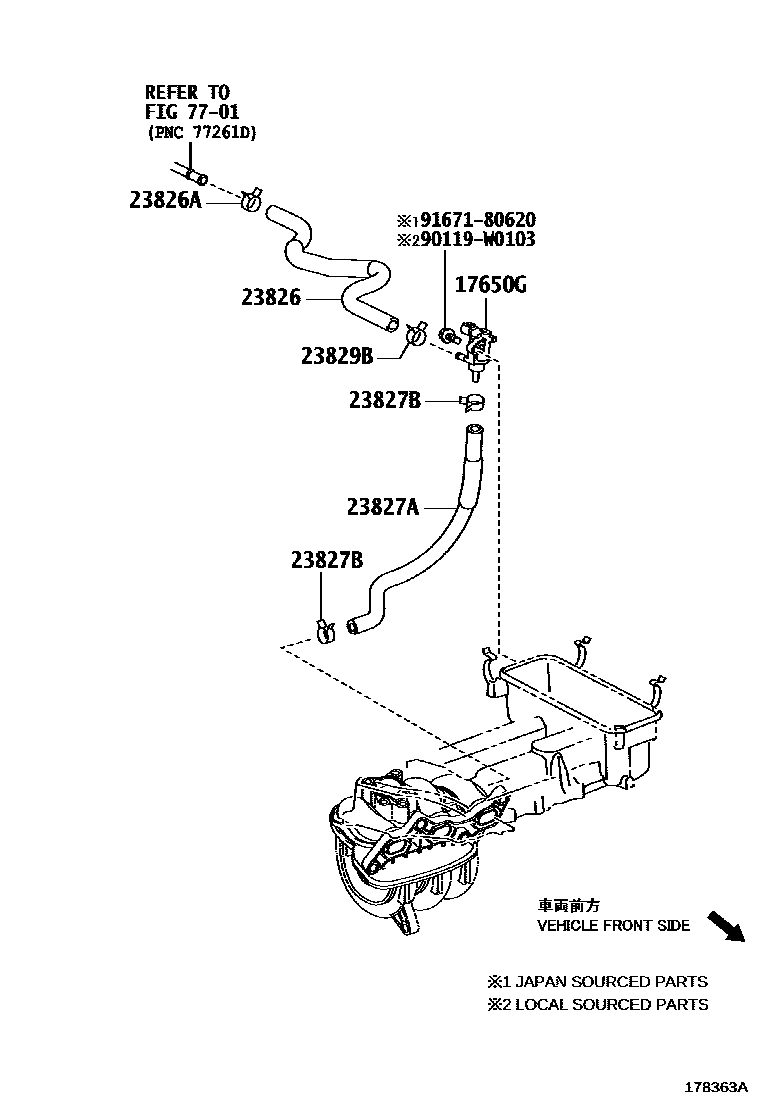

Toyota AYGO — VACUUM PIPING

0001 1 0002 1 0003 1FUEL VAPOR FEED HOSE & VACUUM0004 1VACUUM PIPE

17650GVALVE, DUTY VACUUM SWITCHING

main90910-12280i1KRFE..KGB40¥0201405-201905

(J),MARK=30L

main90910-12282i1KRFE..KGB40..5D201905-202104

MARK=60L

main90910-WC003i1KRFE..KGB40201405-201905

(L),MARK=30L

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0Q030i1KRFE..KGB40201405-201905

main23826-0Q060i1KRFE..KGB40..5D201905-202104

main23826-YV010i1PP..PAB40201405-201805

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003i1KRFE..KGB40..5D¥100201905-202104

TYPE A:REFER ILLUST.

main90466-11004i1KRFE..KGB40..5D¥100201905-202104

TYPE B:REFER ILLUST.

main96132-41000i1KRFE..KGB40¥80201405-201905

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0Q010i1KRFE..KGB40..3D201805-202104

main23827-40050i1KRFE..KGB40¥1,070201405-201805

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300i1KRFE..KGB40¥120201405-201702

main96133-41301i1KRFE..KGB40¥90201703-201805

main96137-41501i1KRFE..KGB40¥120201805-202003

main96138-41501i1KRFE..KGB40..3D¥120202004-202104

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003i1KRFE..KGB40¥100201405-201905

main90466-11003i1KRFE..KGB40..3D¥100201905-202104

TYPE A:REFER ILLUST.

main90466-11004i1KRFE..KGB40..3D¥100201905-202104

TYPE B:REFER ILLUST.

7701

90119W0103

main90119-W0103

9167180620

main91671-80620¥60

9 parts on this diagram · 4 diagrams in section
