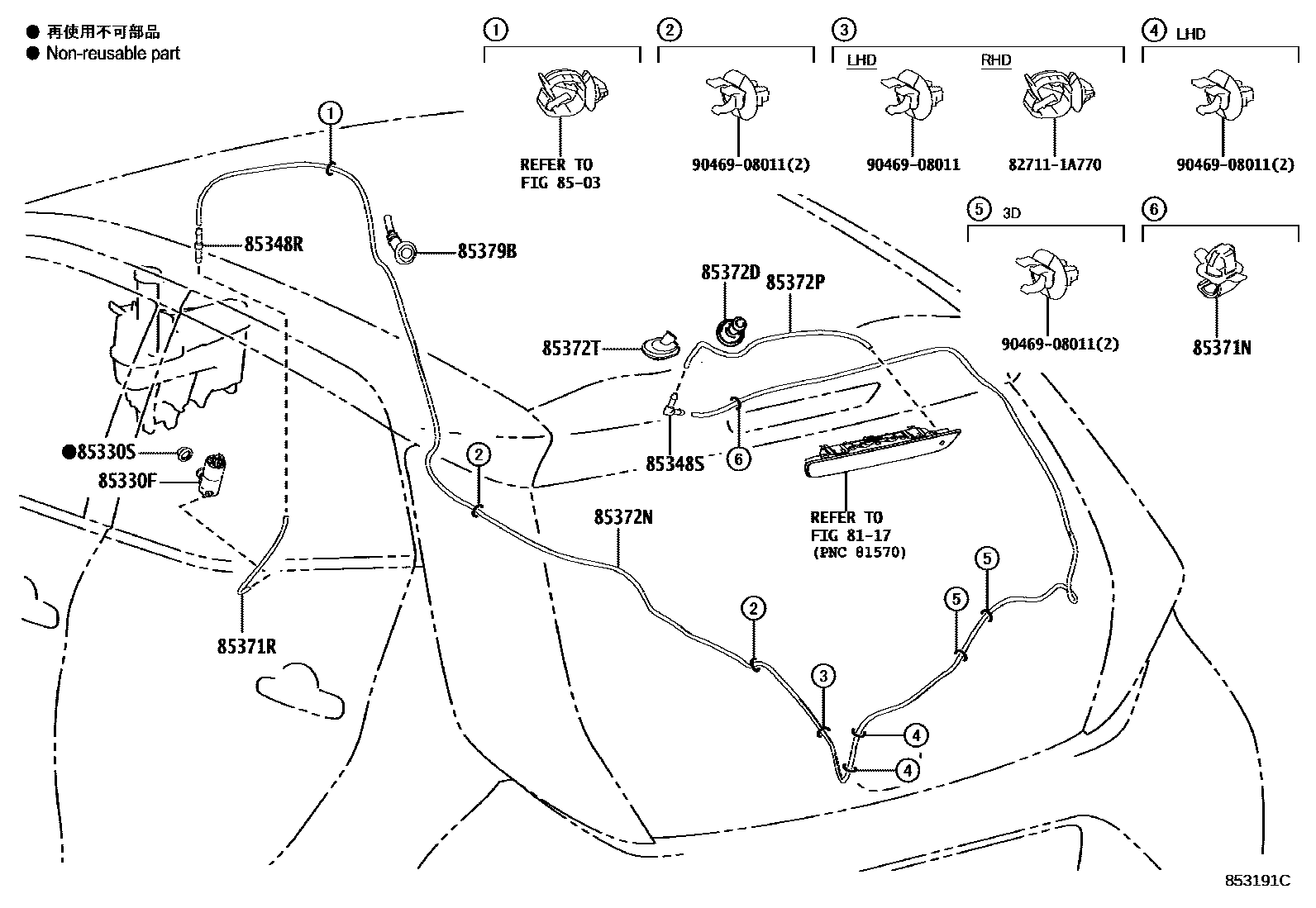

Toyota AYGO — REAR WASHER
8117
8503
85330FMOTOR & PUMP ASSY, RR WASHER
85330SBUSH, REAR WASHER JAR
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
*H,L=220
*H,L=220
*H,L=220
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
*H,L=4655
*H,L=4655
*H,L=4655
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
*H,L=406
*H,L=406
*H,L=406
85372TGROMMET, WASHER
85379BGROMMET, WASHER, A
827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9046908011
15 parts on this diagram · 1 diagram in section
