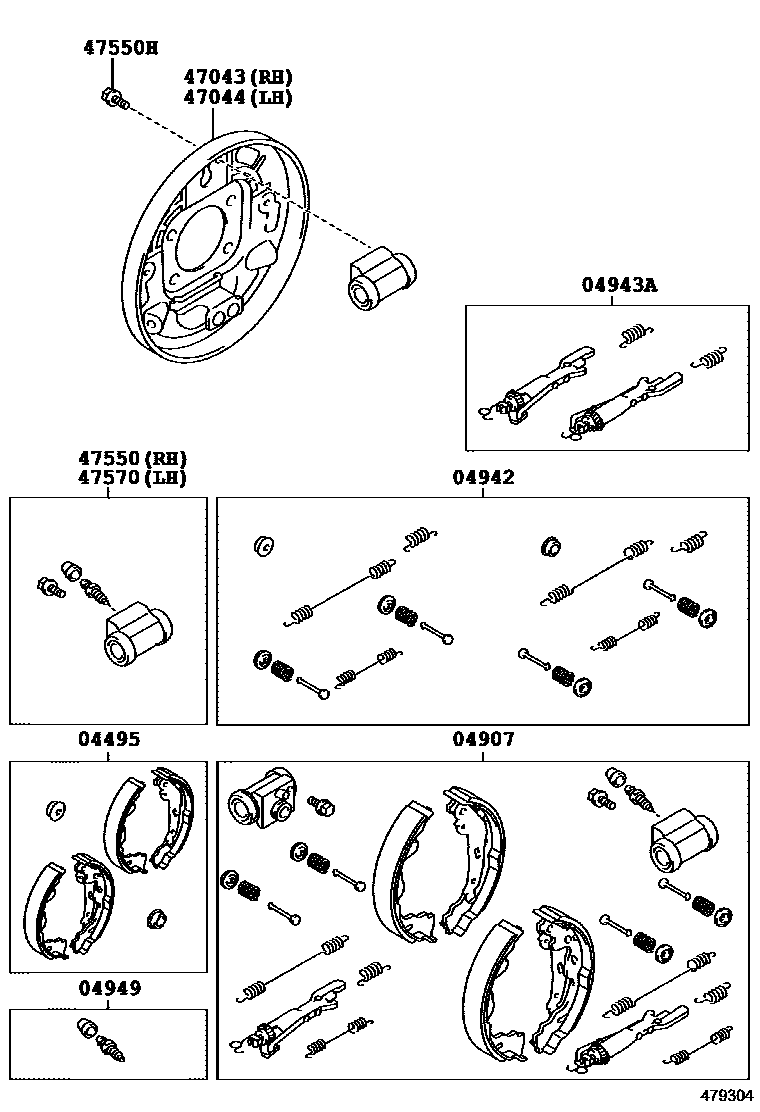

Toyota AYGO — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-0H010iKGB40,PAB40¥3,780201405-201805

main04495-0H010iKGB40..3D¥3,780201805-202104

main04495-0H010iKGB40..5D¥3,780201805

04907FITTING KIT, REAR DRUM BRAKE

main04907-0H040iKGB40,PAB40201405-201805

main04907-0H040iKGB40..3D201805-202104

main04907-0H040iKGB40..5D201805

04942SPRING KIT, REAR BRAKE

main04942-0D010iKGB40,PAB40201405-201805

main04942-0D010iKGB40..3D201805-202104

main04942-0D010iKGB40..5D201805

04943ASTRUT KIT, REAR BRAKE

main04943-0H020iKGB40,PAB40201405-201805

main04943-0H020iKGB40..3D201805-202104

main04943-0H020iKGB40..5D201805

04949PLUG KIT, REAR BRAKE

main04949-0H030iKGB40,PAB40201405-201805

main04949-0H030iKGB40..3D201805-202104

main04949-0H030iKGB40..5D201805

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-0H010iKGB40,PAB40201405-201805

main47043-0H010iKGB40..3D201805-202104

main47043-0H010iKGB40..5D201805

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-0H010iKGB40,PAB40201405-201805

main47044-0H010iKGB40..3D201805-202104

main47044-0H010iKGB40..5D201805

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-09140iKGB40,PAB40201405-201805

main47550-09140iKGB40..3D201805-202104

main47550-09140iKGB40..5D201805

47550HBOLT(FOR REAR WHEEL CYLINDER)

main47553-0H010iKGB40,PAB40201405-201805

main47553-0H010iKGB40..3D201805-202104

main47553-0H010iKGB40..5D201805

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-09140iKGB40,PAB40201405-201805

main47550-09140iKGB40..3D201805-202104

main47550-09140iKGB40..5D201805

10 parts on this diagram · 1 diagram in section
