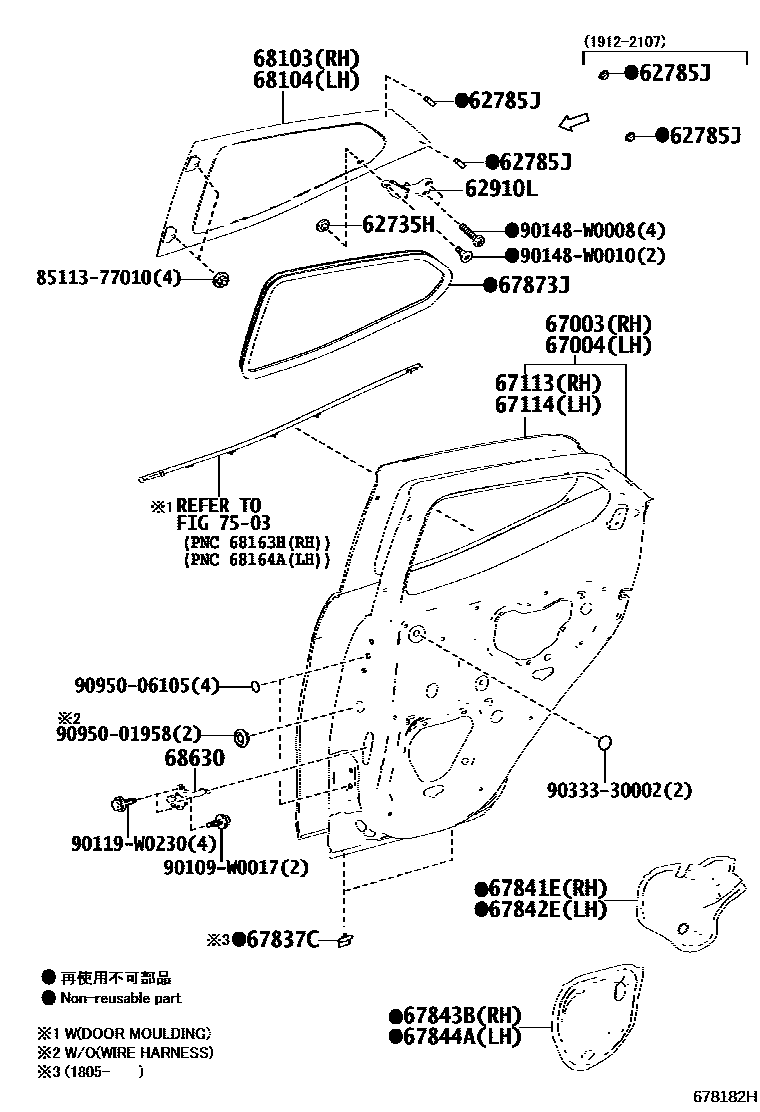

Toyota AYGO — REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

62735HRETAINER, QUARTER WINDOW HINGE

main62735-YV010iKGB40,PAB40..5D201405-201805

62785JSPACER, QUARTER WINDOW GLASS

main62785-0H020iKGB40,PAB40..5D201405-201805

62910LLOCK ASSY, SIDE WINDOW

main62910-0H030iKGB40,PAB40..5D201405-201805

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-0H030iKGB40,PAB40..5D201405-201805

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-0H030iKGB40,PAB40..5D201405-201805

67113PANEL, REAR DOOR, OUTER RH

main67113-0H030iKGB40,PAB40..5D201405-201805

67114PANEL, REAR DOOR, OUTER LH

main67114-0H030iKGB40,PAB40..5D201405-201805

67837CSEAL, REAR DOOR DUST PROOF

main67837-48050iKGB40..5D¥80201805

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-0H020iKGB40,PAB40..5D201405-201805

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-0H020iKGB40,PAB40..5D201405-201805

67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH

main67843-0H020iKGB40,PAB40..5D201405-201805

67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH

main67844-0H020iKGB40,PAB40..5D201405-201805

67873JWEATHERSTRIP, REAR DOOR GLASS, FRONT

main67873-0H030iKGB40,PAB40..5D201405-201805

68103GLASS SUB-ASSY, REAR DOOR, RH

main68130-0H050iKGB40,PAB40..5D201405-201701

sub68130-0H051

main68130-0H051iKGB40,PAB40..5D201702-201805

68104GLASS SUB-ASSY, REAR DOOR, LH

main68140-0H050iKGB40,PAB40..5D201405-201701

sub68140-0H051

main68140-0H051iKGB40,PAB40..5D201702-201805

68630CHECK ASSY, REAR DOOR

main68630-0H020iKGB40,PAB40..5D201405-201805

7503

8511377010FRAME, WINDSHIELD WIPER MOTOR END

main85113-77010¥110

90109W0017

main90109-W0017¥60

90119W0230

main90119-W0230

90148W0008

main90148-W0008

90148W0010

main90148-W0010

9033330002

main90333-30002¥70

9095001958

main90950-01958¥120

9095006105

main90950-06105¥110

25 parts on this diagram · 2 diagrams in section
