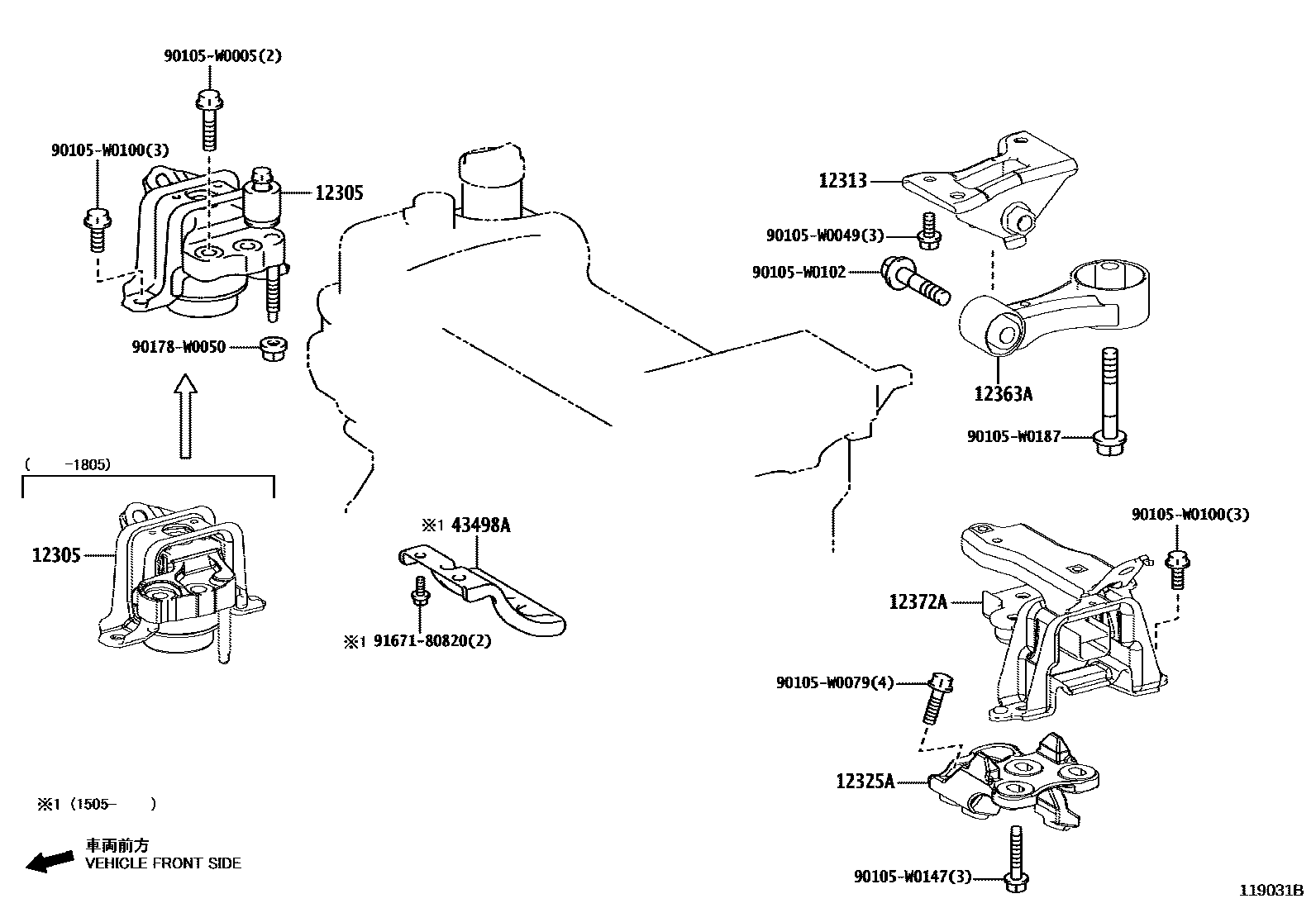

Toyota AYGO — MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0Q031i1KRFE..KGB40201405-201802

main12305-0Q032i1KRFE..KGB40201803-201805

main12305-0Q040i1KRFE..KGB40..3D201805-202104

main12305-0Q040i1KRFE..KGB40..5D201805

main12305-YV020i1PP..PAB40201405

12313BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)

main12313-0Q010i1KRFE..KGB40..3D201805-202104

main12313-0Q010i1KRFE..KGB40201405-201805

main12313-0Q010i1KRFE..KGB40..5D201805

main12313-YV020i1PP..PAB40201405

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0Q041i1KRFE..KGB40201405-201805

main12325-0Q041i1KRFE..KGB40..3D201805-202104

main12325-0Q041i1KRFE..KGB40..5D201805

main12325-YV020i1PP..PAB40201405

12363AROD, ENGINE MOVING CONTROL

main12363-0Q040i1KRFE..KGB40..3D201805-202104

main12363-0Q040i1KRFE..KGB40201405-201805

main12363-0Q040i1KRFE..KGB40..5D201805

main12363-YV020i1PP..PAB40201405

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0Q051i1KRFE..KGB40201405-201805

main12372-0Q051i1KRFE..KGB40..3D201805-202104

main12372-0Q051i1KRFE..KGB40..5D201805

main12372-YV030i1PP..PAB40201405

43498AINSULATOR, DRIVE SHAFT HEAT, NO.1

main43498-0D080iKGB40..5D..5F;KGB40..LHD..3D..5F201505-201805

EXHAUST EMISSION CONTROL-EUROPE STEP5 WITHOUT(ON BOARD DIAGNOSIS)

main43498-0D080iKGB40..5D..5F;KGB40..LHD..3D..5F201505-201805

EXHAUST EMISSION CONTROL-EUROPE STEP4 WITHOUT(ON BOARD DIAGNOSIS)

main43498-0D080iKGB40..3D201805-202104

main43498-0D080iKGB40..5D201805

ENGINE-1KR(HIGH SULFUR FUEL)

90105W0005

main90105-W0005

90105W0049

main90105-W0049¥100

90105W0079

main90105-W0079

90105W0100

main90105-W0100

90105W0102

main90105-W0102

90105W0147

main90105-W0147

90105W0187

main90105-W0187¥330

90178W0050

main90178-W0050

9167180820

main91671-80820¥80

15 parts on this diagram · 2 diagrams in section
