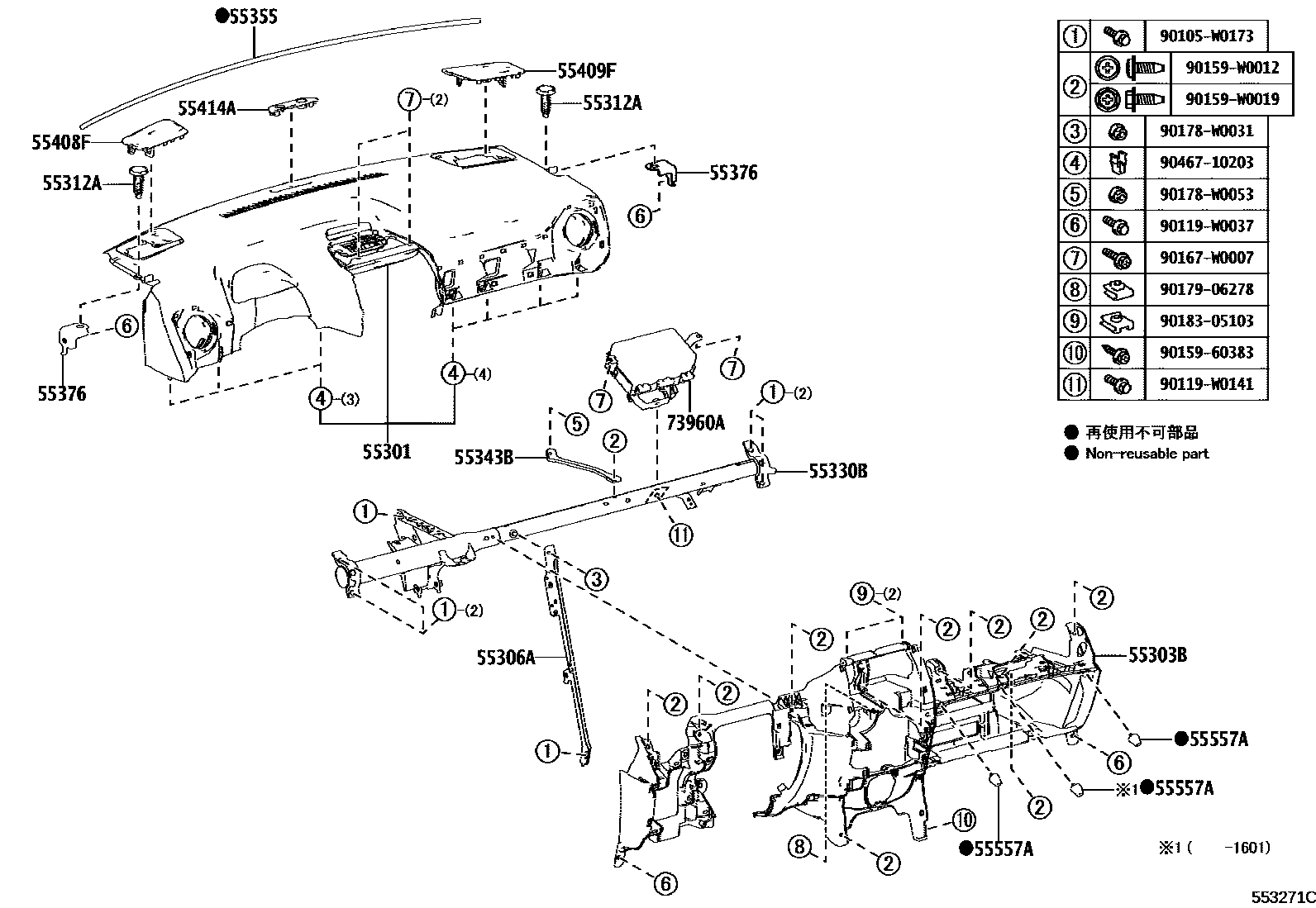

Toyota AYGO — INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
MISTRAL,TRIM2#
MISTRAL,TRIM2#,8#,9#
MISTRAL,TRIM2#
MISTRAL,TRIM2#
MISTRAL,TRIM2#,8#,9#
MISTRAL,TRIM2#,8#,9#
MISTRAL,TRIM2#,8#,9#
MISTRAL,TRIM0#,1#,2#,4#,8#,9#
MISTRAL,TRIM2#
MISTRAL,TRIM2#
MISTRAL,TRIM2#,8#,9#
MISTRAL,TRIM2#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#,9#
PSA MISTRAL HZD,TRIM2#,8#,9#
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM2#,8#,9#
PSA MISTRAL HZD,TRIM2#,8#,9#
PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#,9#
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM2#,8#,9#
PSA MISTRAL HZD,TRIM2#
55312ACLIP, INSTRUMENT PANEL
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55355CUSHION, INSTRUMENT PANEL, NO.1
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#,9#
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM2#,8#,9#
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM2#,8#,9#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM0#,1#,2#,4#,8#,9#
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM2#,8#,9#
PSA MISTRAL HZD,TRIM2#
PSA MISTRAL HZD,TRIM2#,8#,9#
55414APANEL, INSTRUMENT CLUSTER FINISH, END
MISTRAL,TRIM2#
MISTRAL,TRIM0#,1#,2#,4#,8#,9#
MISTRAL,TRIM2#
MISTRAL,TRIM2#,8#,9#
MISTRAL,TRIM2#
MISTRAL,TRIM2#,8#,9#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
90105W0173
main90105-W0173
90119W0037
90119W0141
main90119-W0141
9015960383
90159W0012
main90159-W0012
90159W0019
main90159-W0019
90167W0007
90178W0031
90178W0053
main90178-W0053
9017906278
9018305103
9046710203
25 parts on this diagram · 8 diagrams in section
