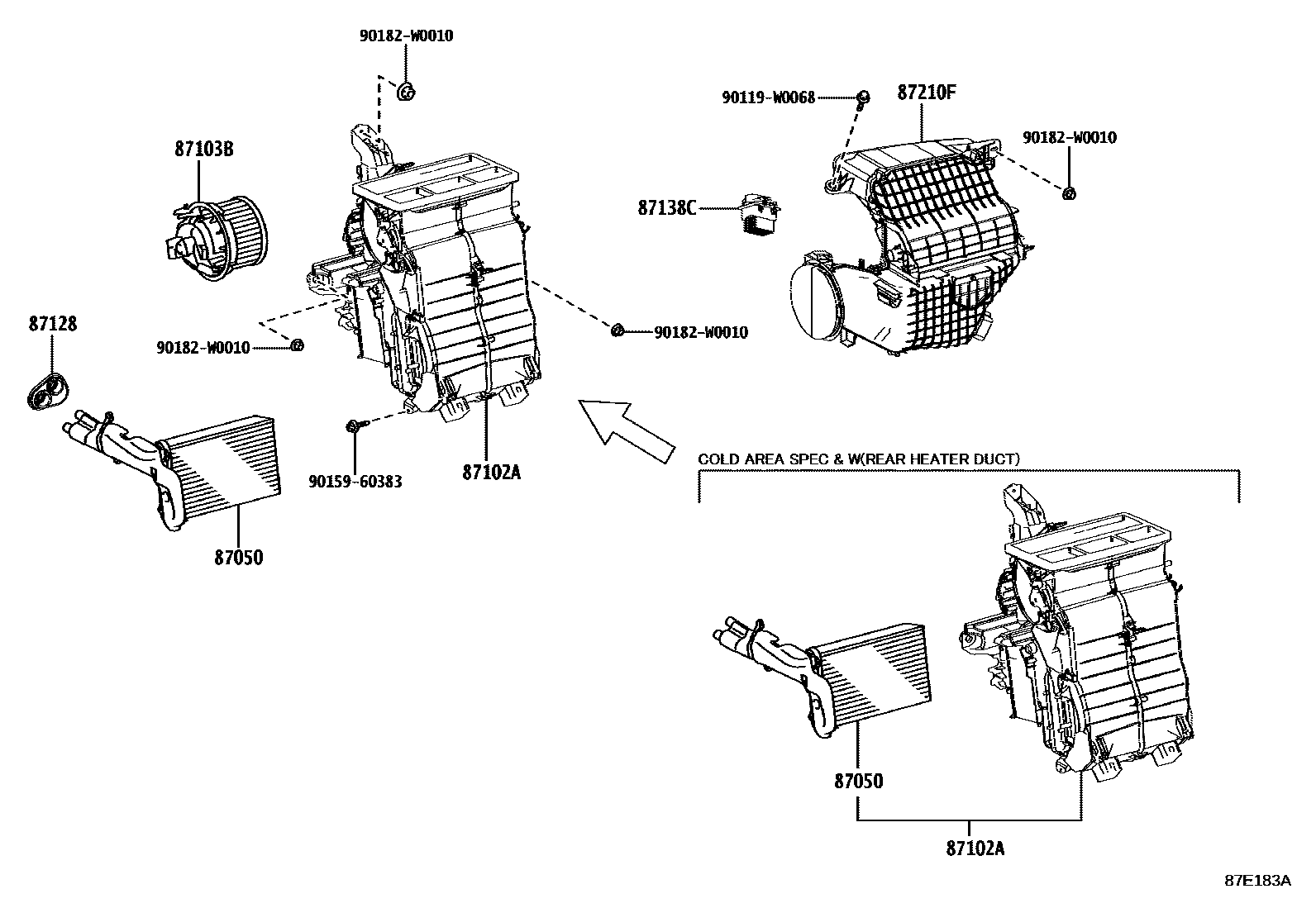

Toyota AYGO — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL HEATER 0002 1MANUAL HEATER 0003 1MANUAL AIR CONDITIONER 0004 1MANUAL AIR CONDITIONER 0005 1AUTO AIR CONDITIONER 0006 1AUTO AIR CONDITIONER

87050RADIATOR ASSY, AIR CONDITIONER

main87050-YV030iKGB40..LHD..3D201405-202104

main87050-YV040iKGB40..RHD..3D201405-202104

87102ACASE SUB-ASSY, RADIATOR

main87102-YV020iKGB40,PAB40..LV1201405-202105

FRONT AIR CONDITIONER-WITHOUT

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-YV010iKGB40..LHD..5D201405-202104

main87103-YV030iKGB40..RHD..3D201405-202104

87128GROMMET, HEATER

main87128-0H010iKGB40..3D201405-202104

87138CRESISTOR, BLOWER

main87138-YV010iKGB40,PAB40201405-202104

87210FCASE ASSY, AIR DAMPER

main87210-YV010iKGB40,PAB40..LHD..LV1201405-202104

COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL

main87210-YV010iKGB40,PAB40..LHD..LV1201405-202104

FRONT AIR CONDITIONER-MANUAL

main87210-YV010iKGB40..LHD..5D..LEDIN201805

main87210-YV020iKGB40,PAB40..LHD..LV1201405-202105

COLD AREA SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT

main87210-YV020iKGB40..LHD..LEDIN201405-202105

FRONT AIR CONDITIONER-WITHOUT

main87210-YV030iKGB40..RHD..3D..LV1201405-202104

FRONT AIR CONDITIONER-MANUAL

main87210-YV030iKGB40..RHD..5D..LV1201805

main87210-YV040iKGB40..RHD..5D..LEDIN201405-202105

FRONT AIR CONDITIONER-WITHOUT

90119W0068

main90119-W0068¥80

9015960383

main90159-60383¥70

90182W0010

main90182-W0010

9 parts on this diagram · 6 diagrams in section
