Toyota AYGO — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

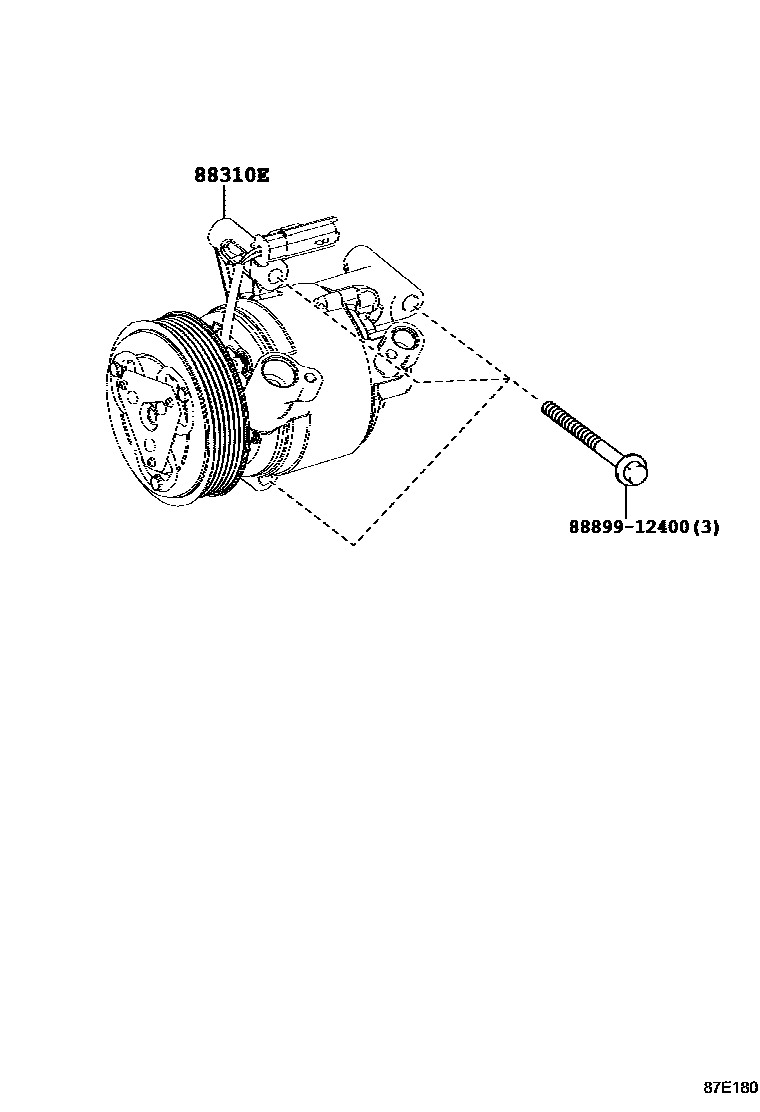

88310ECOMPRESSOR, W/MAGNET CLUTCH

main88310-YV010iKGB40..LV1201405-201805

FRONT AIR CONDITIONER-MANUAL

main88310-YV010iKGB40..LV1201405-201805

FRONT AIR CONDITIONER-WITHOUT

main88310-YV010iKGB40..5D..LV1201805

main88310-YV010iKGB40..5D..LEDIN202105

main88310-YV010iKGB40..3D..LV1201805-202104

FRONT AIR CONDITIONER-MANUAL

main88310-YV020iPAB40201405-201805

FRONT AIR CONDITIONER-WITHOUT

8889912400COVER, EVAPORATOR

main88899-12400¥0

2 parts on this diagram · 2 diagrams in section
