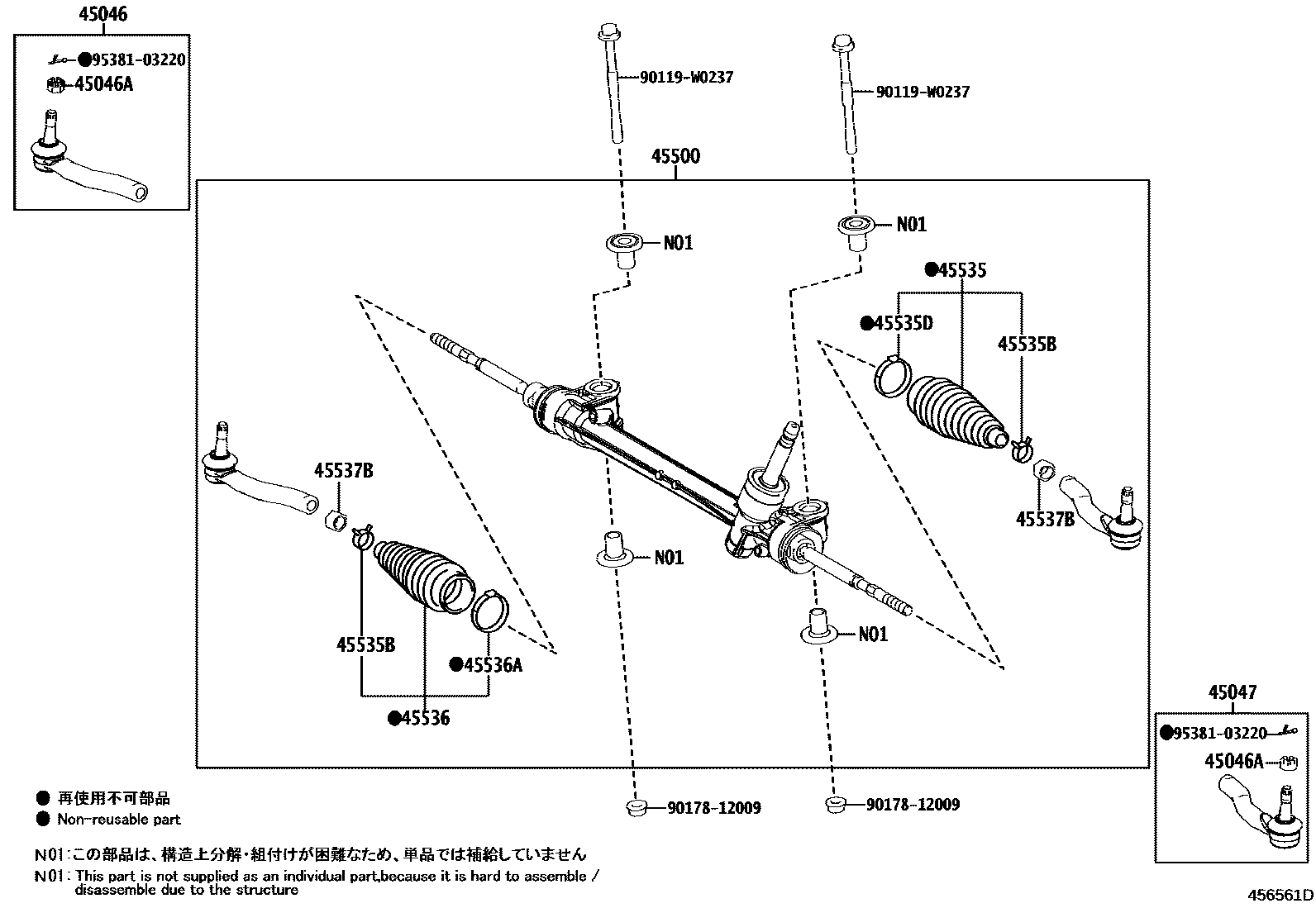

Toyota AYGO — FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09295iKGB40..3D201405-202105

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iKGB40,PAB40¥130201405-202105

45047END SUB-ASSY, TIE ROD, LH

main45047-09125iKGB40,PAB40201405-202105

45500LINK ASSY, STEERING

main45500-0H060iKGB40..LHD201405-201805

TIRE & DISC WHEEL-165/65R14 STEEL, W/O(WHEEL CAP)

main45500-0H060iPAB40..LHD201405-201805

TIRE & DISC WHEEL-165/65R14 STEEL

main45500-0H060iKGB40..LHD..3D201805-202105

main45500-0H070iKGB40..RHD..3D201805-202105

main45500-0H070iPAB40..RHD201405-201805

TIRE & DISC WHEEL-165/65R14 STEEL, W/O(WHEEL CAP)

main45500-0H080iKGB40..LHD..LV1201405-201805

TIRE & DISC WHEEL-165/60R15 ALUMI, BLACK PAINTED

main45500-0H080iPAB40..LHD201405-201805

TIRE & DISC WHEEL-165/60R15 ALUMINUM, SILVER

main45500-0H080iPAB40..LHD201405-201805

TIRE & DISC WHEEL-165/60R15 STEEL

main45500-0H080iPAB40..LHD201405-201805

TIRE & DISC WHEEL-165/60R15 ALUMI, MACHINING TYPE

main45500-0H090iKGB40..RHD..LV1201405-201805

TIRE & DISC WHEEL-165/60R15 ALUMI, MACHINING TYPE

main45500-0H090iPAB40..RHD201405-201805

TIRE & DISC WHEEL-165/60R15 ALUMINUM, SILVER

main45500-0H090iPAB40..RHD201405-201805

TIRE & DISC WHEEL-165/60R15 STEEL

main45500-0H090iPAB40..RHD201405-201805

TIRE & DISC WHEEL-165/60R15 ALUMI, BLACK PAINTED

45535BOOT, STEERING RACK, NO.1

main45535-09370iKGB40,PAB40201405-202105

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0H010iKGB40,PAB40201405-202105

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D040iKGB40,PAB40¥290201405-202105

45536BOOT, STEERING RACK, NO.2

main45535-09370iKGB40,PAB40201405-202105

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D040iKGB40,PAB40¥290201405-202105

45537BNUT, RACK END LOCK

main90170-12018iKGB40,PAB40¥80201405-202105

90119W0237

main90119-W0237¥400

9017812009

main90178-12009¥120

9538103220

main95381-03220¥70

13 parts on this diagram · 2 diagrams in section
