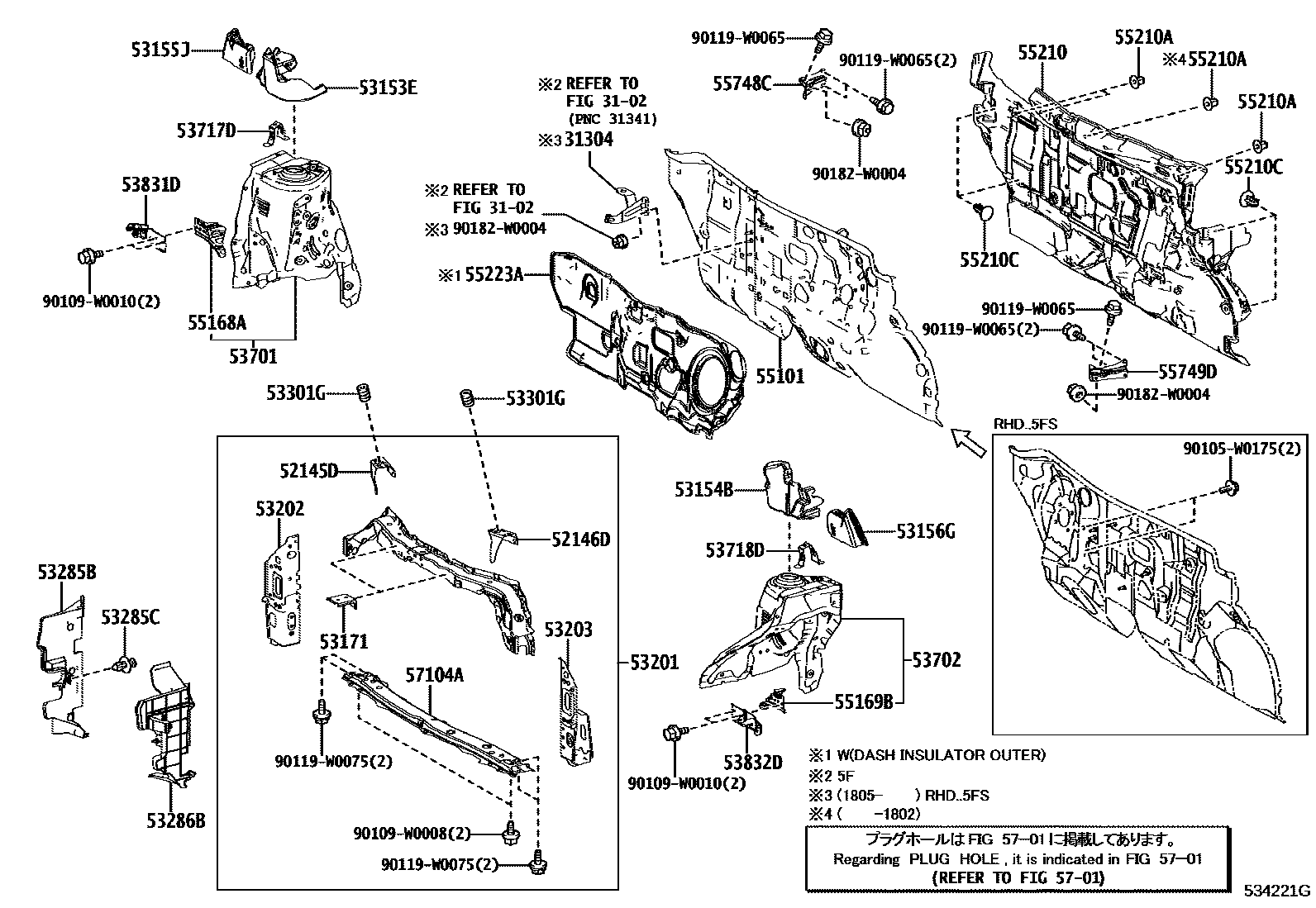

Toyota AYGO — FRONT FENDER APRON & DASH PANEL
3102
31304BRACKET SUB-ASSY, CLUTCH CABLE
52145DBRACKET, FRONT BUMPER SIDE MOUNTING, RH
52146DBRACKET, FRONT BUMPER SIDE MOUNTING, LH
53153EGUIDE, FRONT SIDE AIR
53154BGUIDE, FRONT SIDE AIR, NO.2
53155JSEAL, RADIATOR GRILLE, NO.1
53156GSEAL, RADIATOR GRILLE, NO.2
53171RETAINER, RADIATOR SUPPORT
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53285BSEAL, RADIATOR SIDE AIR, NO.1
WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITHOUT
WITH(STOP & START SYSTEM)
WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-WITHOUT
53285CCLIP(FOR RADIATOR SIDE AIR SEAL)
53286BSEAL, RADIATOR SIDE AIR, NO.2
WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITHOUT
FRONT AIR CONDITIONER-MANUAL
WITH(STOP & START SYSTEM)
WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-WITHOUT
WITH(STOP & START SYSTEM)
WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-MANUAL
WITH(STOP & START SYSTEM)&FRONT AIR CONDITIONER-WITHOUT
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-WITHOUT
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53831DPANEL, FRONT FENDER SIDE, RH
53832DPANEL, FRONT FENDER SIDE, LH
55101PANEL SUB-ASSY, DASH
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-WITHOUT
FRONT AIR CONDITIONER-MANUAL
FRONT AIR CONDITIONER-WITHOUT
sub55101-0H091
sub55101-0H111
55168ABRACKET, FRONT FENDER MOUNTING, RH
55169BBRACKET, FRONT FENDER MOUNTING, LH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55210CCLIP
55223AINSULATOR, DASH PANEL, OUTER
55748CBRACE, COWL TOP INNER TO PILLAR, RH
55749DBRACE, COWL TOP INNER TO PILLAR, LH
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
90105W0175
90109W0008
main90109-W0008
90109W0010
main90109-W0010
90119W0065
main90119-W0065
90119W0075
main90119-W0075
90182W0004
main90182-W0004
39 parts on this diagram · 1 diagram in section
