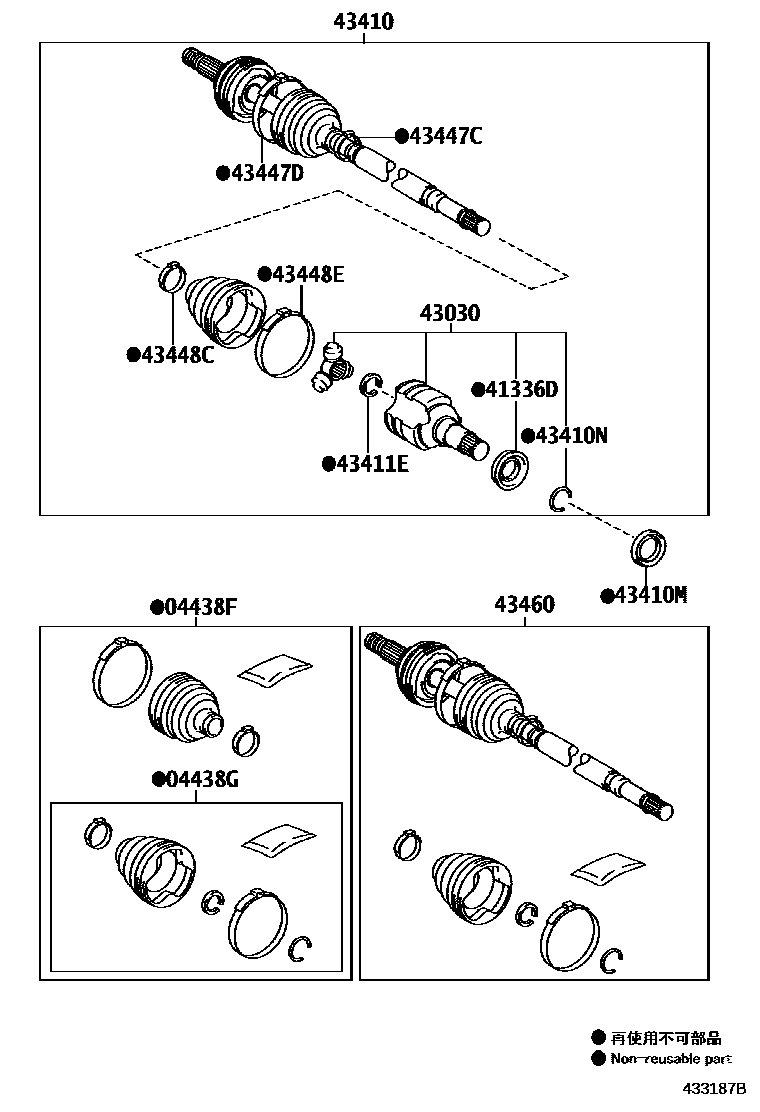

Toyota AYGO — FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0H040iKGB40..3D201405-202104

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0H020iKGB40..3D201405-202104

mainSU00101156iPAB40201405-201805

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-0H010iKGB40201405-202104

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43403-0H020iKGB40..3D201405-202104

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0H040iKGB40..5D¥53,000201405-202104

main43410-YV020iPAB40201405-201805

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-W0015iKGB40¥350201405-201907

sub90311-W0025

main90311-W0025iKGB40..5D201908-202104

mainSU001A0956iPAB40201405-201805

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0H040iKGB40201405-202104

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0H010iKGB40201405-202104

mainSU00101159iPAB40201405-201805

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0H060iKGB40201405-202104

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0H090iKGB40201405-202104

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0H020iKGB40201405-202104

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0H011iKGB40201405-202104

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-09X70iKGB40201405-202104

13 parts on this diagram · 4 diagrams in section
