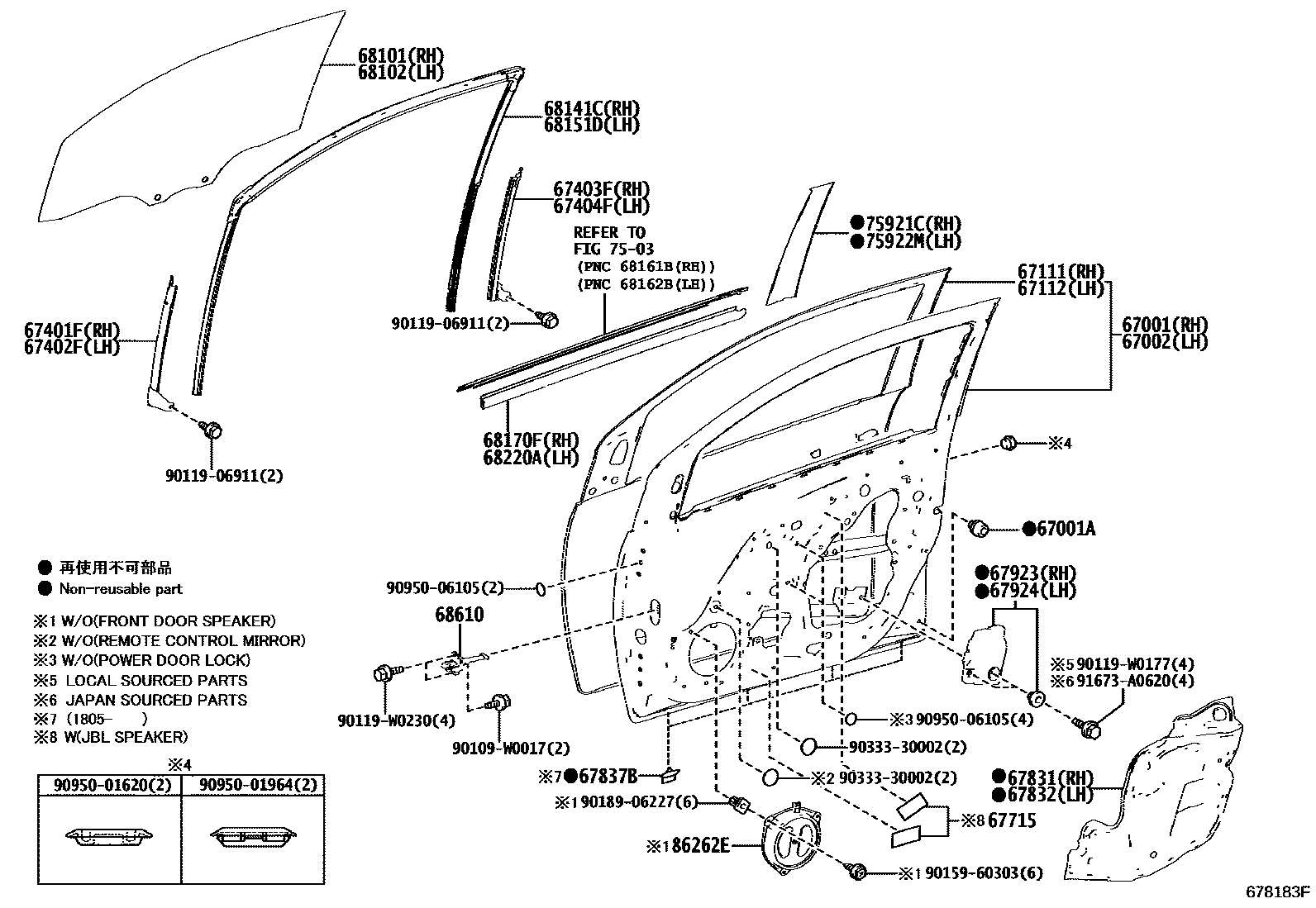

Toyota AYGO — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67715PAD, DOOR TRIM, NO.1
main67715-YY010
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68170FWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER RH
68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH
68610CHECK ASSY, FRONT DOOR
7503
75921CTAPE, BLACK OUT, NO.1 RH
BLACK OUT TAPE-WITH(CENTER PILLAR ONLY)
BLACK OUT TAPE-WITH(CENTER PILLAR ONLY)
75922MTAPE, BLACK OUT, NO.1 LH
BLACK OUT TAPE-WITH(CENTER PILLAR ONLY)
BLACK OUT TAPE-WITH(CENTER PILLAR)
BLACK OUT TAPE-WITH(CENTER PILLAR ONLY)
BLACK OUT TAPE-WITH(CENTER PILLAR ONLY)
86262ECOVER, SPEAKER, FRONT
90109W0017
9011906911
90119W0177
main90119-W0177
90119W0230
main90119-W0230
9015960303
9018906227
9033330002
9095001620
9095001964
9095006105
91673A0620
37 parts on this diagram · 3 diagrams in section
