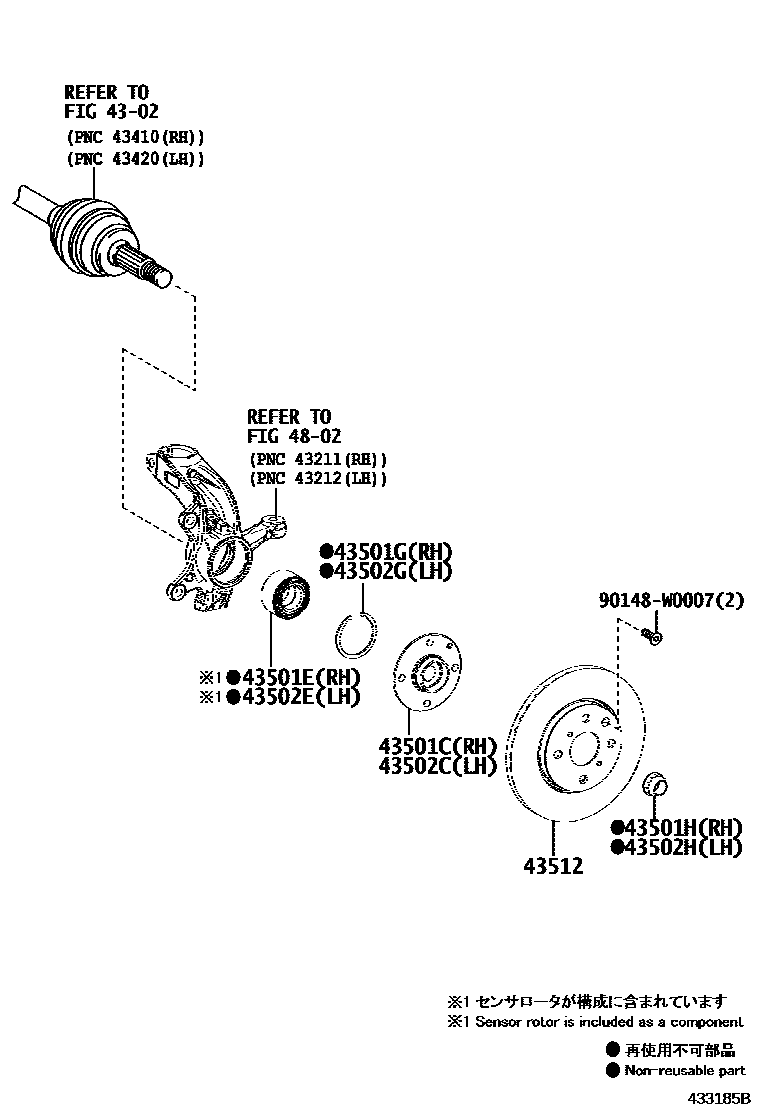

Toyota AYGO — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43511-0H010iKGB40,PAB40201405-202105

43501EBEARING (FOR FRONT AXLE HUB RH)

main90369-W0001iKGB40,PAB40201405-202105

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-W0001iKGB40,PAB40201405-202105

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKGB40,PAB40¥220201405-202105

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43511-0H010iKGB40,PAB40201405-202105

43502EBEARING (FOR FRONT AXLE HUB LH)

main90369-W0001iKGB40,PAB40201405-202105

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-W0001iKGB40,PAB40201405-202105

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKGB40,PAB40¥220201405-202105

43512DISC, FRONT

main43512-0H020iKGB40,PAB40¥12,900201405-201501

sub43512-0H040¥8,900

main43512-0H040iKGB40,PAB40¥8,900201502-202104

4802

90148W0007

main90148-W0007

12 parts on this diagram · 1 diagram in section
