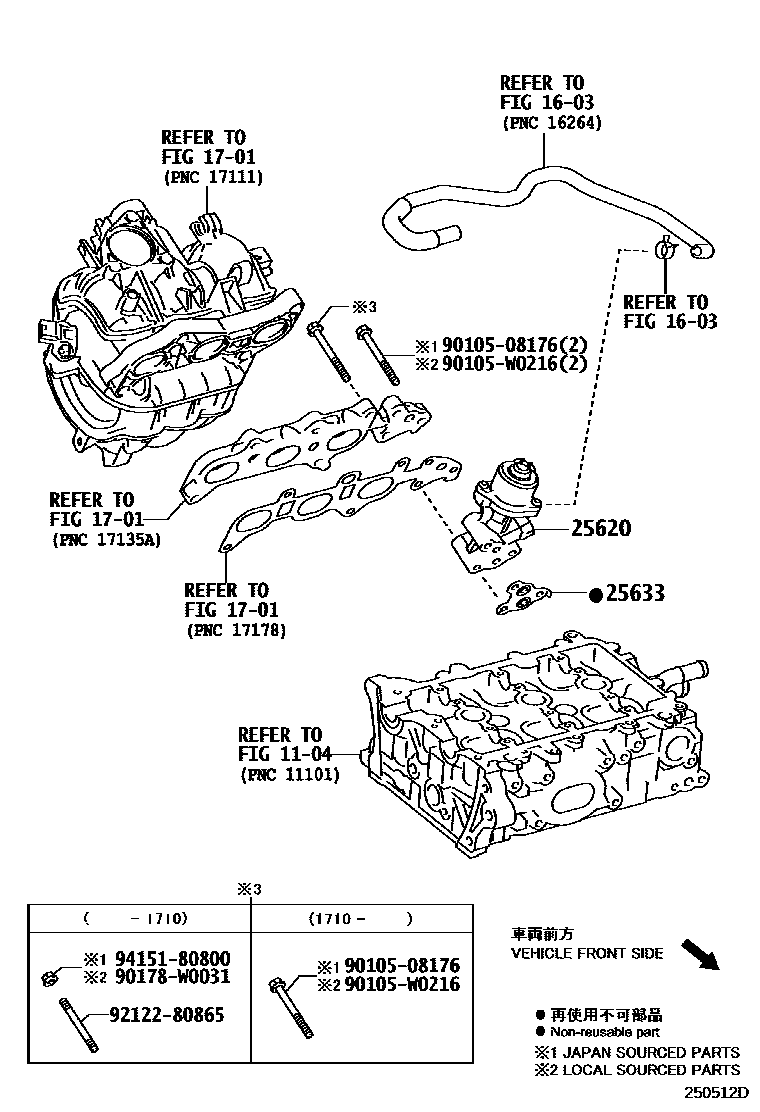

Toyota AYGO — EXHAUST GAS RECIRCULATION SYSTEM

0001 1 0002 1

1104

1603

1701

25620VALVE ASSY, EGR

main25620-40030i1KRFE..KGB40¥18,400201405-201805

main25620-40040i1KRFE..KGB40..3D201805-202104

25633GASKET, EGR VALVE

main25633-0Q020i1KRFE..KGB40¥370201405-201805

main25633-0Q030i1KRFE..KGB40..3D201805-202104

9010508176

main90105-08176¥160

90105W0216

main90105-W0216

90178W0031

main90178-W0031¥100

9212280865

main92122-80865¥120

9415180800

main94151-80800¥80

10 parts on this diagram · 2 diagrams in section
