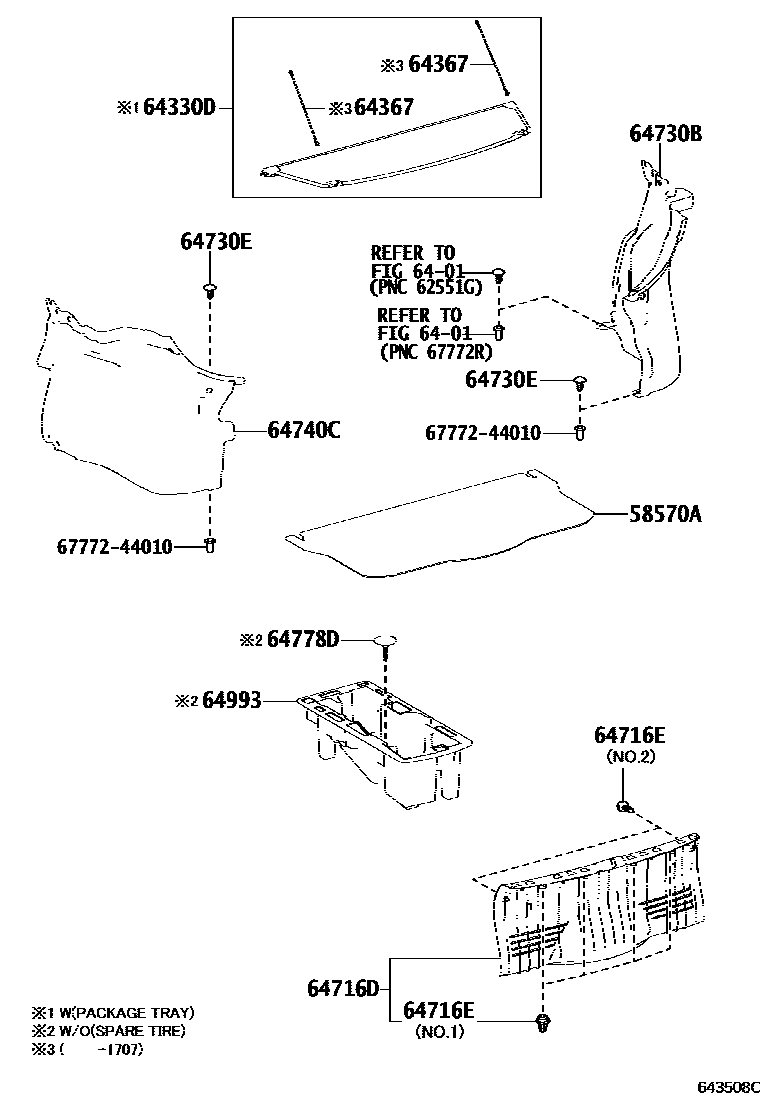

Toyota AYGO — DECK BOARD & DECK TRIM COVER
58570AMAT ASSY, REAR FLOOR
PSA BLACK MISTRAL HZD,TRIM2#
PSA BLACK MISTRAL HZD,TRIM0#,1#,2#,4#,8#
6401
64330DPANEL ASSY, PACKAGE TRAY TRIM
WITHOUT(PACKAGE TRAY OR TONNEAU COVER),BLACK,TRIM2#
sub64330-0H051
WITHOUT(PACKAGE TRAY OR TONNEAU COVER),BLACK,TRIM2#
sub64330-0H052
BLACK,TRIM2#
WITHOUT(PACKAGE TRAY OR TONNEAU COVER),BLACK,TRIM2#
64367SUSPENDER, PACKAGE TRAY TRIM
MISTRAL,TRIM0#,1#,2#,4#,8#
MISTRAL,TRIM2#
WITHOUT(PACKAGE TRAY OR TONNEAU COVER),MISTRAL,TRIM2#
64716DCOVER, DECK TRIM, REAR
LIGHT GREY,TRIM2#
LIGHT GREY,TRIM0#,1#,2#,4#,8#
LIGHT GREY,TRIM2#
MISTRAL -PSA HZD,TRIM2#
64716ECLIP(FOR DECK TRIM REAR COVER)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
64730BPANEL ASSY, DECK TRIM SIDE, RH
PSA BLACK MISTRAL HZD,TRIM2#
PSA BLACK MISTRAL HZD,TRIM0#,1#,2#,4#,8#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64740CPANEL ASSY, DECK TRIM SIDE, LH
PSA BLACK MISTRAL HZD,TRIM0#,1#,2#,4#,8#
PSA BLACK MISTRAL HZD,TRIM2#
64778DPROTECTOR, SPARE WHEEL
64993BOX, DECK FLOOR, REAR
6777244010WEATHERSTRIP, BACK DOOR TRIM, LH
12 parts on this diagram · 1 diagram in section
