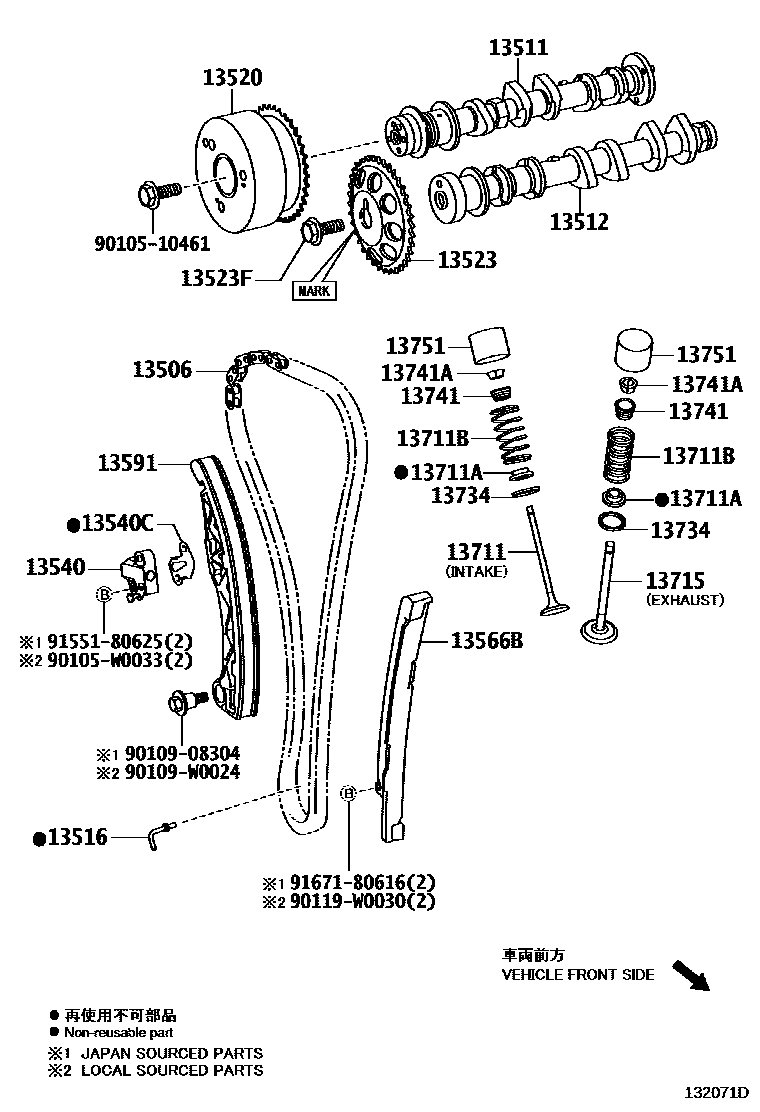

Toyota AYGO — CAMSHAFT & VALVE
13506CHAIN SUB-ASSY
13511CAMSHAFT
13512CAMSHAFT, NO.2
13516JET, OIL
13520SPROCKET ASSY, CAMSHAFT TIMING
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
MARK I
MARK IN
13523FBOLT(FOR CAMSHAFT TIMING GEAR)
13540TENSIONER ASSY, CHAIN, NO.1
(L)
(J)
13540CGASKET(FOR CHAIN TENSIONER)
13566BGUIDE, TIMING CHAIN
13591ARM, TIMING CHAIN TENSION
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE SIDE,(L)
EXHAUST SIDE,(L)
INTAKE SIDE,(J)
EXHAUST SIDE,(J)
subSU001-01187
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.16
T=5.28
T=5.30
T=5.32
T=5.34
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.60
T=5.64
T=5.66
T=5.68
T=2.72
T=2.76
T=2.80
T=2.84
T=2.88
T=2.92
T=2.96
T=3.00
T=3.04
T=3.08
T=3.12
T=3.16
T=3.20
T=3.24
T=3.28
T=3.32
T=3.36
T=3.40
T=3.44
T=3.48
T=3.52
T=3.56
9010510461
90105W0033
9010908304
90109W0024
main90109-W0024
90119W0030
9155180625
9167180616
26 parts on this diagram · 4 diagrams in section
