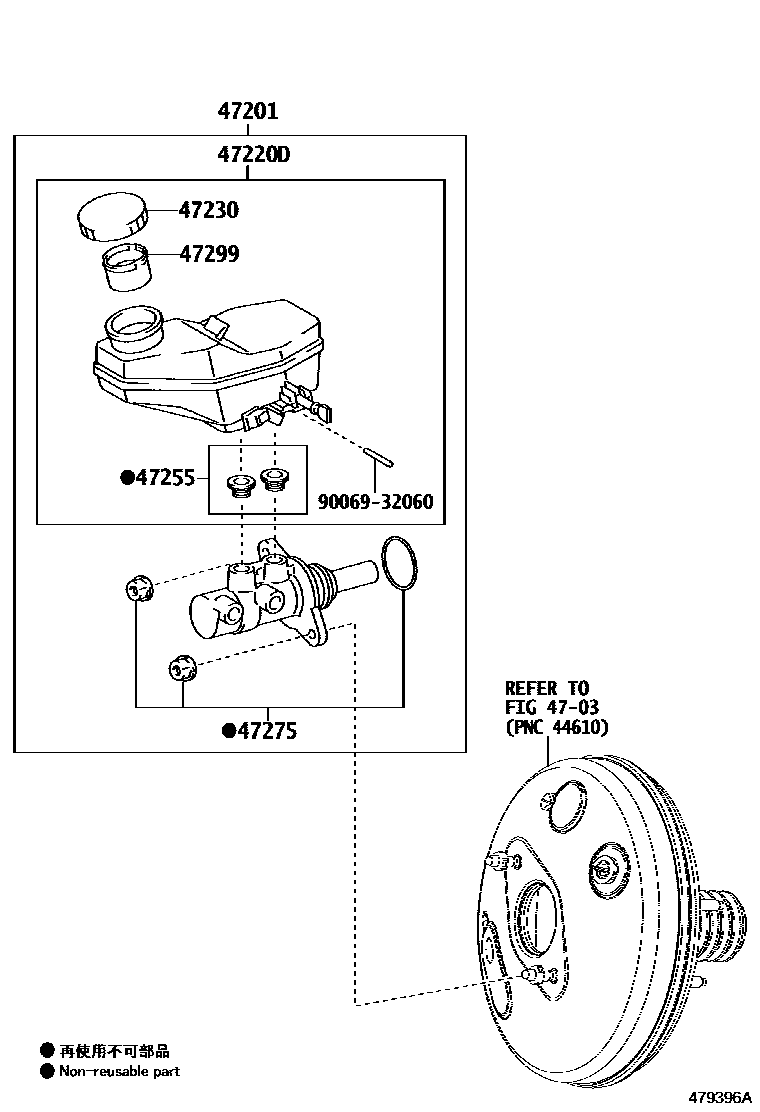

Toyota AYGO — BRAKE MASTER CYLINDER

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09750iKGB40,PAB40..LHD201405-202104

main47201-09770iKGB40,PAB40..RHD201405-202104

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-09210iKGB40,PAB40201405-202104

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D010iKGB40..3D¥1,090201405-202104

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iKGB40,PAB40¥720201405-202104

47275GASKET, BRAKE MASTER CYLINDER

main47275-09010iKGB40,PAB40¥200201405-202104

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-02160iKGB40,PAB40¥600201405-202104

9006932060

main90069-32060

8 parts on this diagram · 1 diagram in section
