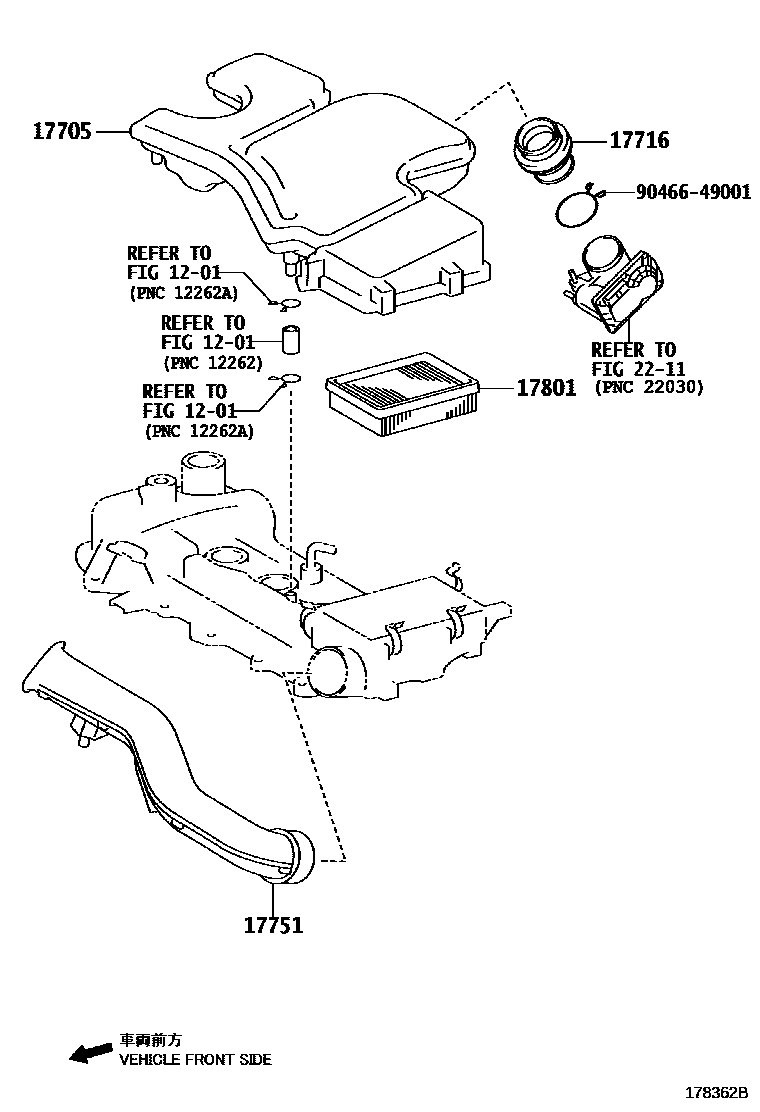

Toyota AYGO — AIR CLEANER

0001 1 0002 1 0003 1

1201

17705CAP SUB-ASSY, AIR CLEANER

main17705-0Q030i1KRFE..KGB40201405-201805

17716SUPPORT,AIR CLEANER CAP

main17716-0Q030i1KRFE..KGB40..3D201805-202104

main17716-40040i1KRFE..KGB40201405-201805

17751INLET, AIR CLEANER, NO.1

main17751-0Q010i1KRFE..KGB40201405-201805

main17751-YV020i1PP..PAB40201405

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0M040i1KRFE..KGB40..3D201505-202104

(L)

main17801-21060i1KRFE..KGB40¥2,600201505-202104

(J)

main17801-21060i1KRFE..KGB40¥2,600201405-201505

mainSU00101147i1PP..PAB40201405

2211

9046649001

main90466-49001¥300

7 parts on this diagram · 3 diagrams in section
