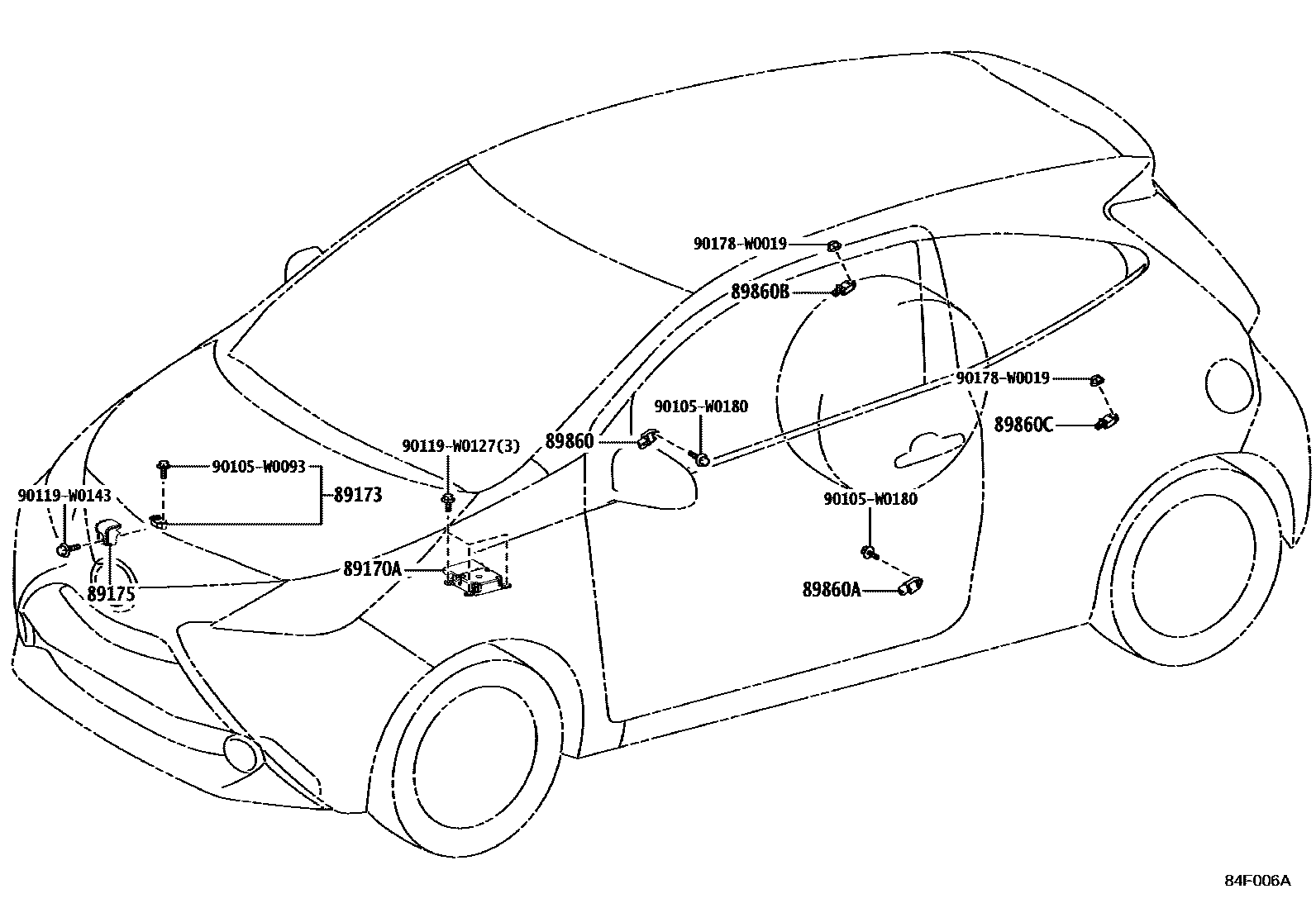

Toyota AYGO — AIR BAG

0001 1 0002 1

89170ACOMPUTER ASSY, AIRBAG

main89170-0H110iKGB40,PAB40..3D201406-201705

P/N LABEL=891700H110

main89170-0H130iKGB40,PAB40..5D201405-201705

P/N LABEL=891700H130

main89170-0H190iKGB40..3D201805-202105

main89170-0H190iKGB40,PAB40..3D201705-201805

P/N LABEL=891700H190

main89170-0H210iKGB40,PAB40..5D201705-201805

P/N LABEL=891700H210

main89170-0H210iKGB40..5D201805

89173SENSOR, AIRBAG, FRONT

main89173-09A70iKGB40..5D201805

main89173-09A70iKGB40,PAB40201405-201805

main89173-09A70iKGB40..3D201805-202105

89175BRACKET, AIRBAG SENSOR

main89175-0H010iKGB40,PAB40201405-201805

main89175-0H010iKGB40..3D201805-202105

main89175-0H010iKGB40..5D201805

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-0H020iKGB40,PAB40..5D201405-201805

main89831-0H020iKGB40..5D201805

main89831-0H030iKGB40,PAB40..3D201406-201805

main89831-0H030iKGB40..3D201805-202105

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-0H020iKGB40,PAB40..5D201405-201805

main89831-0H020iKGB40..5D201805

main89831-0H030iKGB40,PAB40..3D201406-201805

main89831-0H030iKGB40..3D201805-202105

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-0H040iKGB40..3D201805-202105

main89831-0H040iKGB40,PAB40201405-201805

main89831-0H040iKGB40..5D201805

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-0H040iKGB40,PAB40201405-201805

main89831-0H040iKGB40..3D201805-202105

main89831-0H040iKGB40..5D201805

90105W0093

main90105-W0093¥100

90105W0180

main90105-W0180

90119W0127

main90119-W0127¥80

90119W0143

main90119-W0143

90178W0019

main90178-W0019¥110

12 parts on this diagram · 2 diagrams in section
