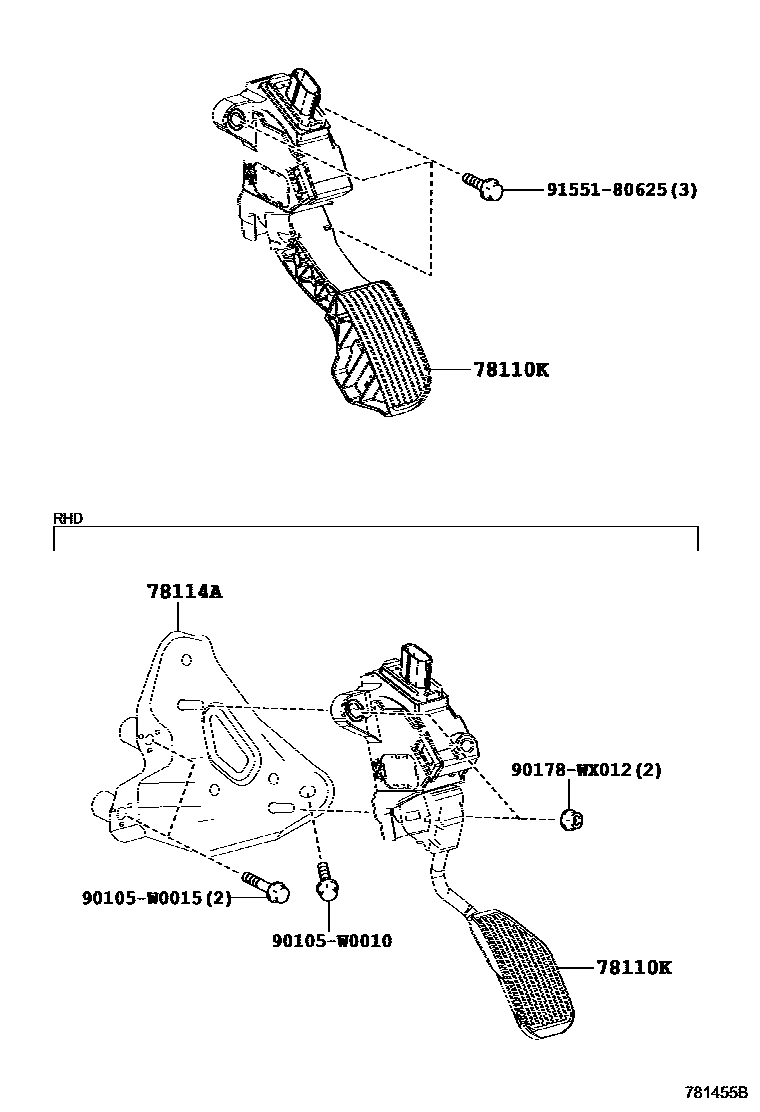

Toyota AYGO — ACCELERATOR LINK

0001 1 0002 1

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78010-YV030iPAB40..LHD201405-201805

main78010-YV040iPAB40..RHD201405-201805

main78110-0H040iKGB40..LHD..5D..LEDIN¥7,600201805

ADJUSTABLE SPEED LIMITER-WITH

main78110-0H040iKGB40..LHD..LV1¥7,600201405-201805

ADJUSTABLE SPEED LIMITER-WITH

main78110-0H040iKGB40..LHD..3D..LV1¥7,600201805-202104

ADJUSTABLE SPEED LIMITER-WITH

main78110-0H050iKGB40..LHD..5D..5F..LV1¥7,600201805

ADJUSTABLE SPEED LIMITER-WITHOUT

main78110-0H050iKGB40..LHD..LEDIN¥7,600201405-201805

ADJUSTABLE SPEED LIMITER-WITHOUT

main78110-0H050iKGB40..LHD..3D..LEDIN¥7,600201805-202104

ADJUSTABLE SPEED LIMITER-WITHOUT

main78110-0H060iKGB40..RHD..LEDIN201405-201805

ADJUSTABLE SPEED LIMITER-WITH

main78110-0H060iKGB40..RHD..3D..LEDIN201805-202104

ADJUSTABLE SPEED LIMITER-WITH

main78110-0H060iKGB40..RHD..5D..LEDIN201805

ADJUSTABLE SPEED LIMITER-WITH

main78110-0H070iKGB40..RHD..3D..LEDIN201805-202104

ADJUSTABLE SPEED LIMITER-WITHOUT

main78110-0H070iKGB40..RHD..LEDIN201405-201805

ADJUSTABLE SPEED LIMITER-WITHOUT

main78110-0H070iKGB40..RHD..5D..LEDIN201805

ADJUSTABLE SPEED LIMITER-WITHOUT

78114ABRACKET, ACCELERATOR PEDAL SUPPORT

main78011-0H010iPAB40..RHD201405-201505

sub78011-0H011

main78011-0H011iPAB40..RHD201506-201805

main78014-0H010iKGB40..RHD201405-201511

sub78014-0H011

main78014-0H011iKGB40..RHD201512-201805

main78014-0H011iKGB40..RHD..3D201805-202104

main78014-0H011iKGB40..RHD..5D201805

90105W0010

main90105-W0010¥90

90105W0015

main90105-W0015

90178WX012

main90178-WX012

9155180625

main91551-80625¥60

6 parts on this diagram · 2 diagrams in section
