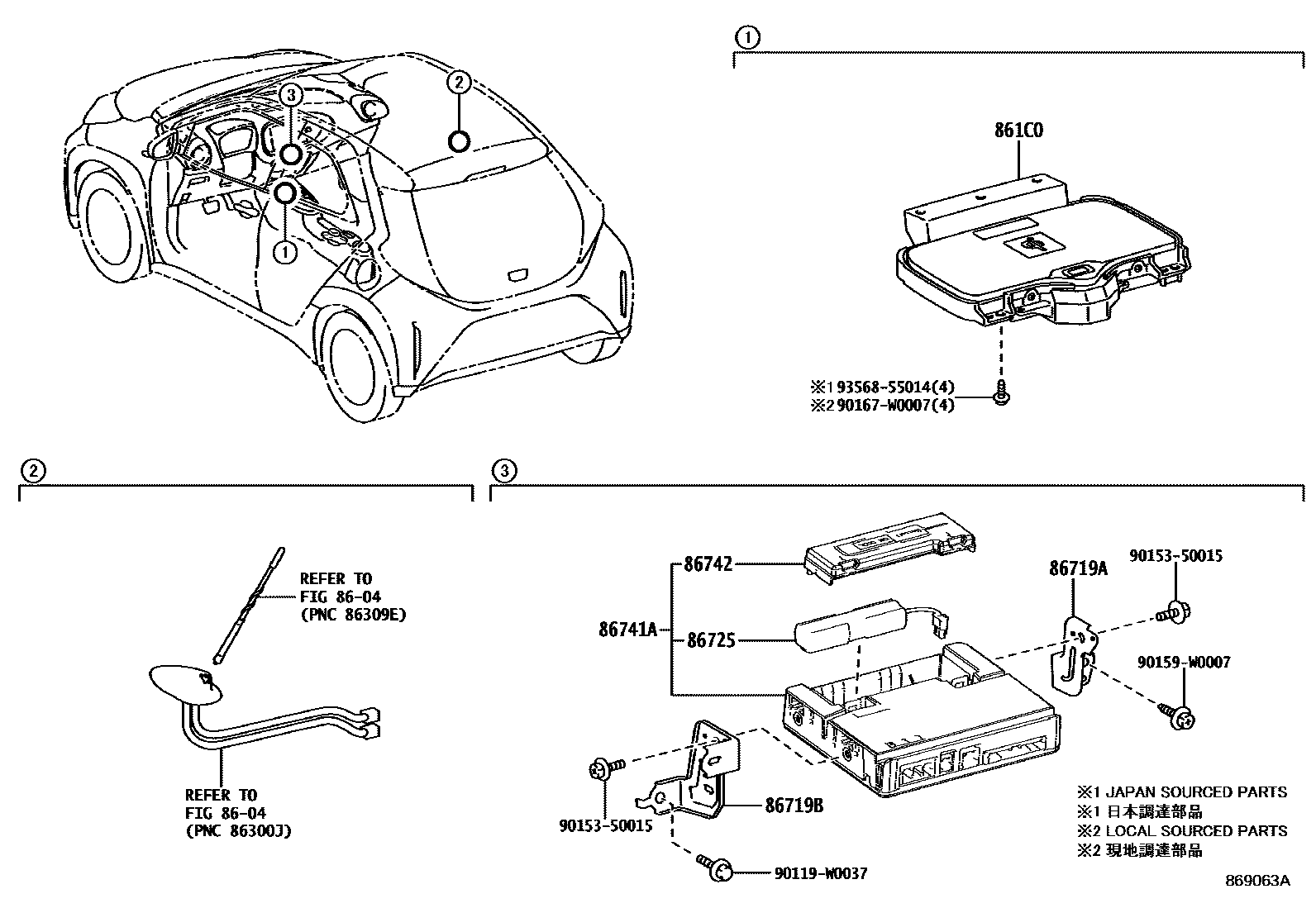

Toyota AYGO X — TELEPHONE & MAYDAY

0001 17 OR 8 INCH DISPLAY 0002 17 OR 8 INCH DISPLAY 0003 19 INCH DISPLAY

8604

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-0H010iKGB70..G202203

WIRELESS CHARGER-WITH

86719ABRACKET, TELEPHONE NO.1

main86719-0H010iKGB70..LHD..R202203-202312

main86719-0H030iKGB70..RHD202203

86719BBRACKET, TELEPHONE NO.2

main86719-0H020iKGB70..LHD..R202203-202312

main86719-0H040iKGB70..RHD202203

86725BATTERY, MOBILEPHONE

main86725-78010iKGB70..RHD;KGB70..LHD..(G,K,N)¥8,300202203-202407

main86725-78011iKGB70..G,K,N¥7,500202408

86741ATRANSCEIVER, TELEMATICS

main86740-02210iKGB70..G,K,N202312

main86740-0H021iKGB70202203-202312

86742COVER, TRANSCEIVER

main86742-0D020iKGB70..LHD..R¥510202203-202401

90119W0037

main90119-W0037¥60

9015350015

main90153-50015¥60

90159W0007

main90159-W0007¥100

90167W0007

main90167-W0007¥110

9356855014

main93568-55014¥70

12 parts on this diagram · 3 diagrams in section
