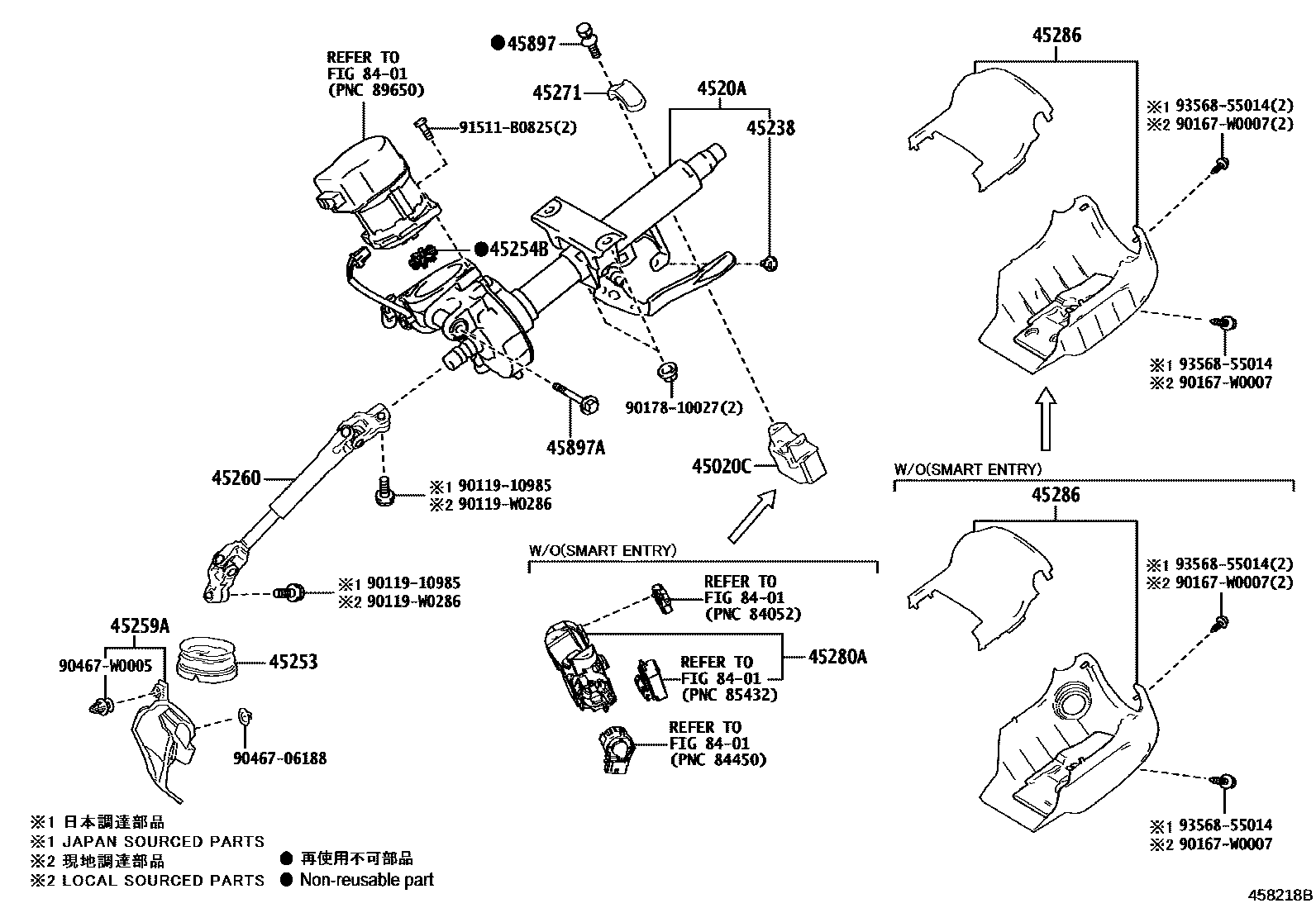

Toyota AYGO X — STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
45253COVER, STEERING COLUMN HOLE
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
REMOTE SERVICE PACKAGE-REMOTE A/C PACKAGE&SMART ENTRY-PUSH & ID & SMART (D+P)
45280ABRACKET ASSY, STEERING COLUMN, UPPER
MALTA SPEC
CYPRUS SPEC
IRELAND SPEC
REMOTE SERVICE PACKAGE-REMOTE A/C PACKAGE&SMART ENTRY-PUSH & ID & SMART (D+P)
IRELAND SPEC
MALTA SPEC
CYPRUS SPEC
45286COVER, STEERING COLUMN
BLACK,TRIM2#
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
45897BOLT, STEERING LOCK SET
MALTA SPEC
CYPRUS SPEC
IRELAND SPEC
REMOTE SERVICE PACKAGE-REMOTE A/C PACKAGE&SMART ENTRY-PUSH & ID & SMART (D+P)
45897ABOLT, TILT STEERING PAWL SET
(J)
(L)
8401
9011910985
90119W0286
main90119-W0286
90167W0007
9017810027
9046706188
90467W0005
91511B0825
9356855014
21 parts on this diagram · 2 diagrams in section
