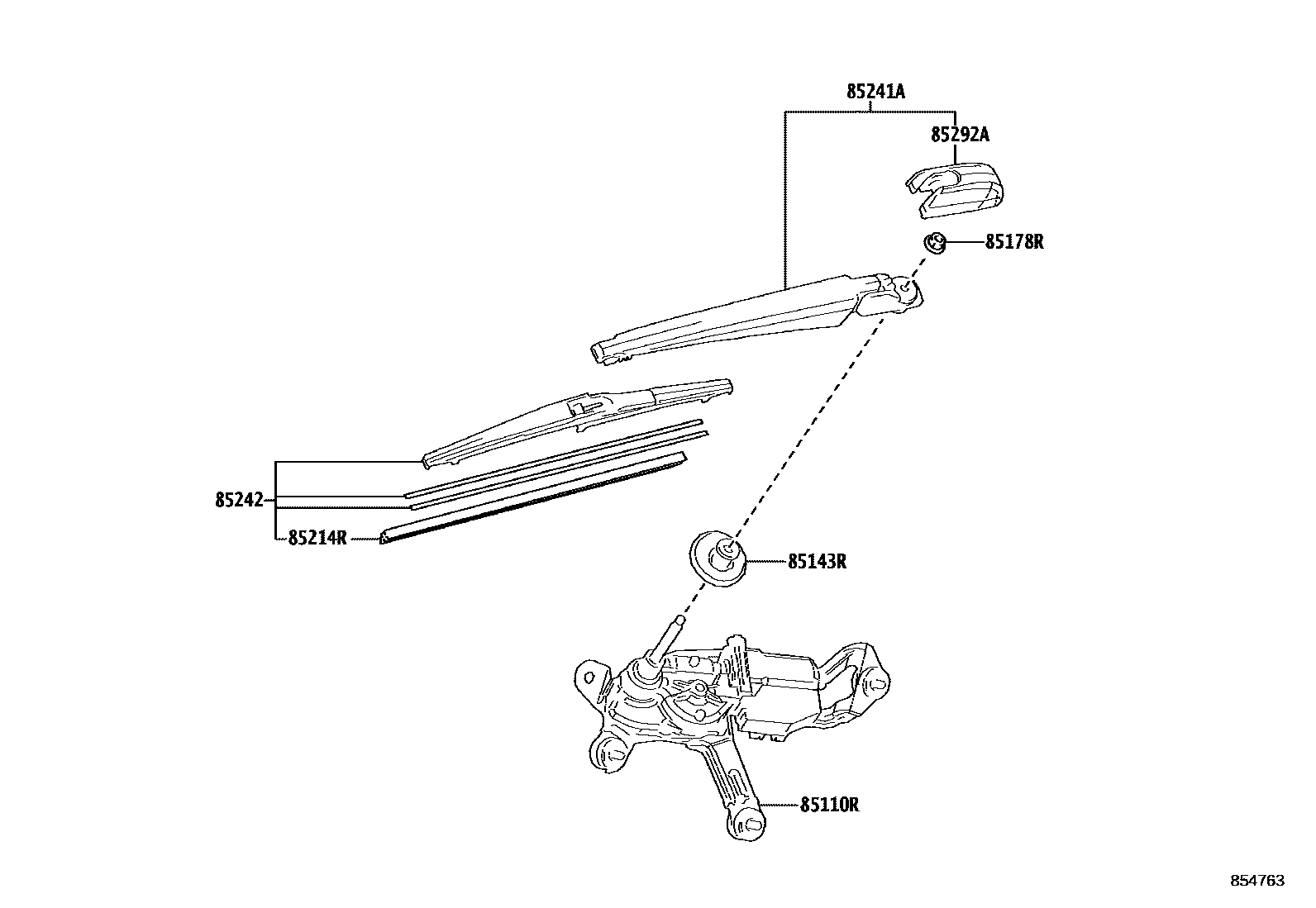

Toyota AYGO X — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-K0010iKGB70..LHD..R202203-202401

85143RGROMMET, REAR WIPER MOTOR

main85143-0H050iKGB70..LHD..R202203-202401

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iKGB70..LHD..R¥70202203-202401

85214RRUBBER, REAR WIPER

main85214-K0010iKGB70..LHD..R202203-202401

85241AARM, REAR WIPER

main85241-K0010iKGB70..LHD..R202203-202401

85242BLADE, RR WIPER

main85242-K0010iKGB70..LHD..R202203-202401

85292ACAP, REAR WIPER ARM HEAD

main85292-02070iKGB70..LHD..R202203-202401

7 parts on this diagram · 1 diagram in section
