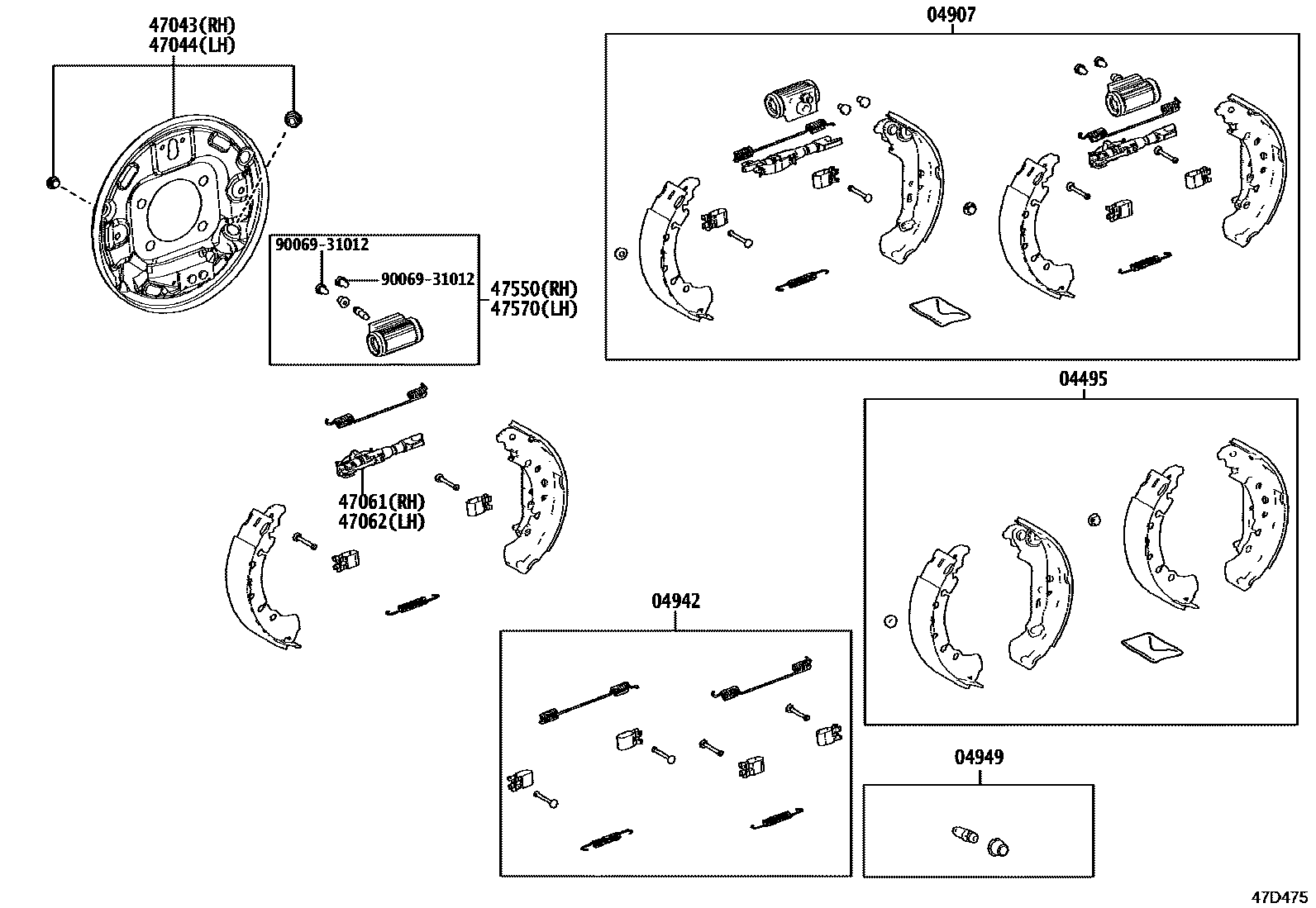

Toyota AYGO X — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04495SHOE KIT, REAR BRAKE

main04495-K0000iKGB70..LHD..R202203-202401

MARK TMD D8273/2

main04495-K0000iKGB70..RHD;KGB70..LHD..(G,K,N)202203

MARK TMD D8273/2

04907FITTING KIT, REAR DRUM BRAKE

main04907-K0000iKGB70..LHD..R202203-202401

main04907-K0000iKGB70..RHD;KGB70..LHD..(G,K,N)202203

04942SPRING KIT, REAR BRAKE

main04942-K0000iKGB70..LHD..R202203-202401

main04942-K0000iKGB70..RHD;KGB70..LHD..(G,K,N)202203

04949PLUG KIT, REAR BRAKE

main04949-09010iKGB70..LHD..R202203-202401

main04949-09010iKGB70..RHD;KGB70..LHD..(G,K,N)202203

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-K9000iKGB70..LHD..R202203-202401

main47043-K9000iKGB70..RHD;KGB70..LHD..(G,K,N)202203

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-K9000iKGB70..LHD..R202203-202401

main47044-K9000iKGB70..RHD;KGB70..LHD..(G,K,N)202203

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-0D040iKGB70..LHD..R202203-202401

main47061-0D040iKGB70..RHD;KGB70..LHD..(G,K,N)202203

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-0D040iKGB70..LHD..R202203-202401

main47061-0D040iKGB70..RHD;KGB70..LHD..(G,K,N)202203

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-K9000iKGB70..LHD..R202203-202401

main47550-K9000iKGB70..RHD;KGB70..LHD..(G,K,N)202203

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-K9000iKGB70..LHD..R202203-202401

main47550-K9000iKGB70..RHD;KGB70..LHD..(G,K,N)202203

9006931012

main90069-31012

11 parts on this diagram · 1 diagram in section
