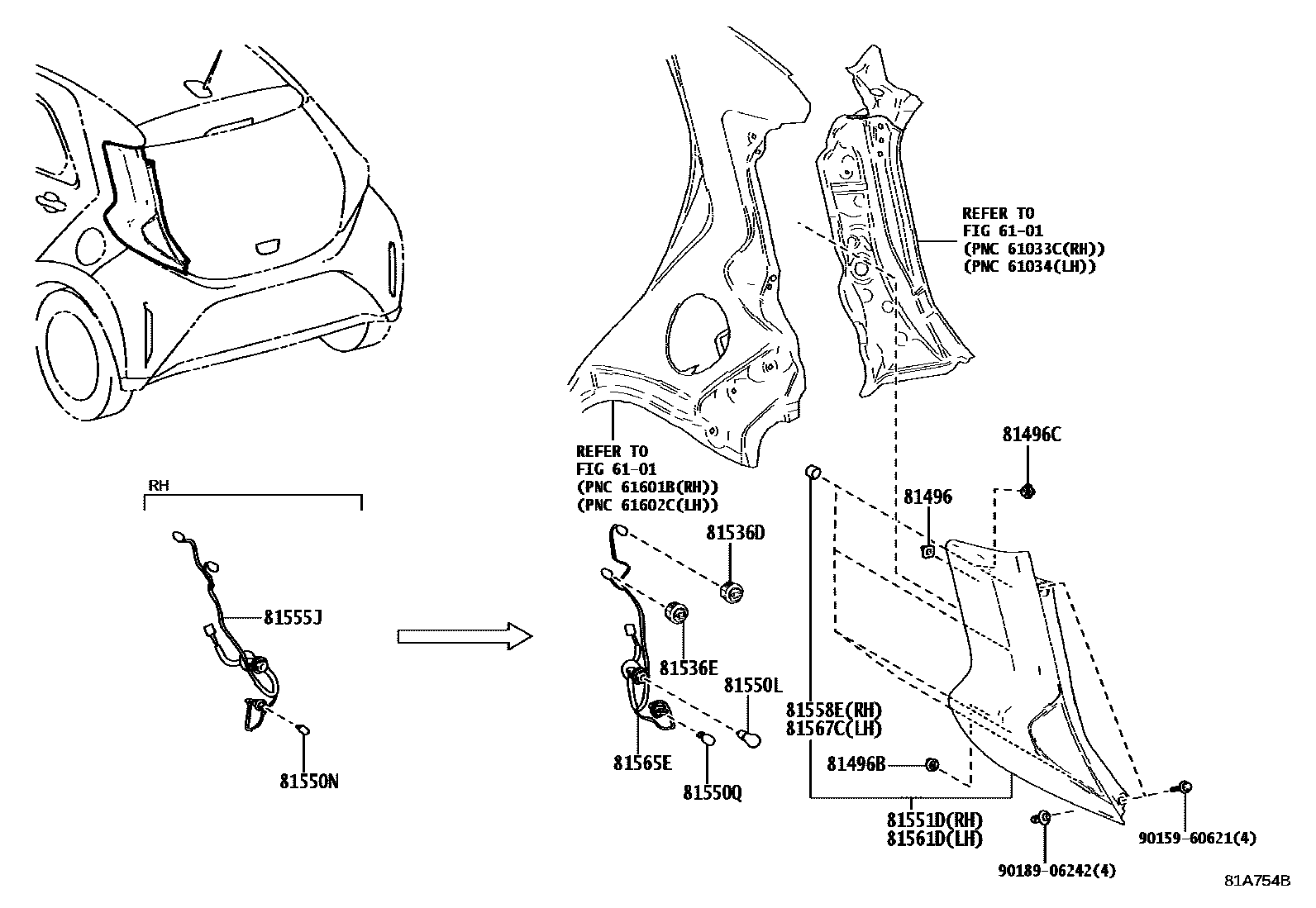

Toyota AYGO X — REAR COMBINATION LAMP

0001 1 0002 1

6101

81496GUIDE, REAR COMBINATION LAMP

main76817-26040iKGB70..LHD..R¥110202203-202401

main76817-26040iKGB70..RHD;KGB70..LHD..(G,K,N)¥110202203

81496BGUIDE, REAR LAMP

main81496-52020iKGB70..LHD..R¥70202203-202401

main81496-52020iKGB70..RHD;KGB70..LHD..(G,K,N)¥70202203

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iKGB70..LHD..R¥100202203-202401

main81496-60010iKGB70..RHD;KGB70..LHD..(G,K,N)¥100202203

81536DLED, TAILLAMP

main81965-70010iKGB70..LHD..R¥3,210202203-202401

main81965-70010iKGB70..RHD;KGB70..LHD..(G,K,N)¥3,210202203

81536ELED, STOP LAMP

main81965-70010iKGB70..LHD..R¥3,210202203-202401

main81965-70010iKGB70..RHD;KGB70..LHD..(G,K,N)¥3,210202203

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15028iKGB70..LHD..R¥350202203-202401

12V 21W,AMBER

main90981-15028iKGB70..RHD;KGB70..LHD..(G,K,N)¥350202203

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iKGB70..LHD..R¥200202203-202401

12V 16W

main90981-11059iKGB70..RHD;KGB70..LHD..(G,K,N)¥200202203

12V 16W

81550QBULB, REAR FOG LAMP, NO.1

main90981-13043iKGB70..LHD..R¥220202203-202401

12V 21W

main90981-13043iKGB70..RHD;KGB70..LHD..(G,K,N)¥220202203

12V 21W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-0H180iKGB70..LHD..R202203-202401

main81551-0H180iKGB70..LHD..(G,K,N)202203

main81551-0H190iKGB70..RHD202203

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-0H180iKGB70..LHD..R202203-202401

main81555-0H180iKGB70..LHD..(G,K,N)202203

main81555-0H190iKGB70..RHD202203

81558ECOVER, REAR COMBINATION LAMP, RH

main90075-15512iKGB70..LHD..R¥610202203-202401

main90075-15512iKGB70..RHD;KGB70..LHD..(G,K,N)¥610202203

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-0H180iKGB70..LHD..(G,K,N)202203

main81561-0H180iKGB70..LHD..R202203-202401

main81561-0H190iKGB70..RHD202203

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81555-0H180iKGB70..RHD202203

main81555-0H190iKGB70..LHD..R202203-202401

main81555-0H190iKGB70..LHD..(G,K,N)202203

81567CCOVER, REAR COMBINATION LAMP, LH

main90075-15512iKGB70..LHD..R¥610202203-202401

main90075-15512iKGB70..RHD;KGB70..LHD..(G,K,N)¥610202203

9015960621

main90159-60621¥60

9018906242

main90189-06242¥70

17 parts on this diagram · 2 diagrams in section
