Toyota AYGO X — RADIO RECEIVER & AMPLIFIER & CONDENSER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0H010iKGB70..G,K,N202312

main86190-12070iKGB70..G,K,N¥3,780202203-202312

AUDIO-7INCH DISPLAY & WITH(DAB)

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-YP010

main86280-YP020

main86280-YP030

86285BRACKET, AMPLIFIER, NO.1

main86285-K0010¥1,400

main86285-YP010

86286BRACKET, AMPLIFIER, NO.2

main86286-K0010

main86286-YP010

86287BCOVER, AMPLIFIER

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF1334-K0010¥570

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150¥170

9011906A06

main90119-06A06¥60

9015350015

main90153-50015¥60

90153W0001

main90153-W0001¥110

90178W0039

main90178-W0039¥60

9046709232

main90467-09232¥70

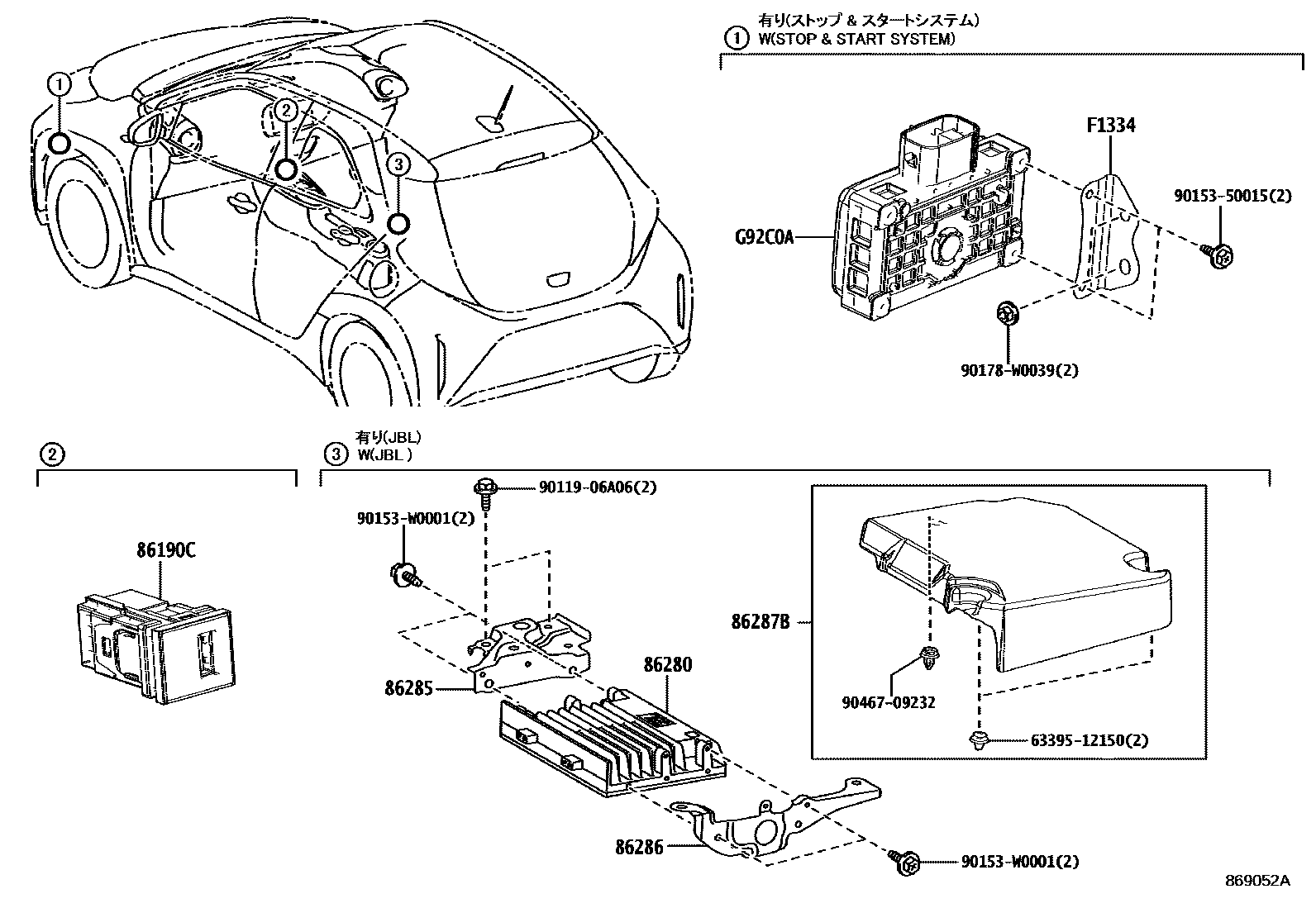

13 parts on this diagram · 1 diagram in section
