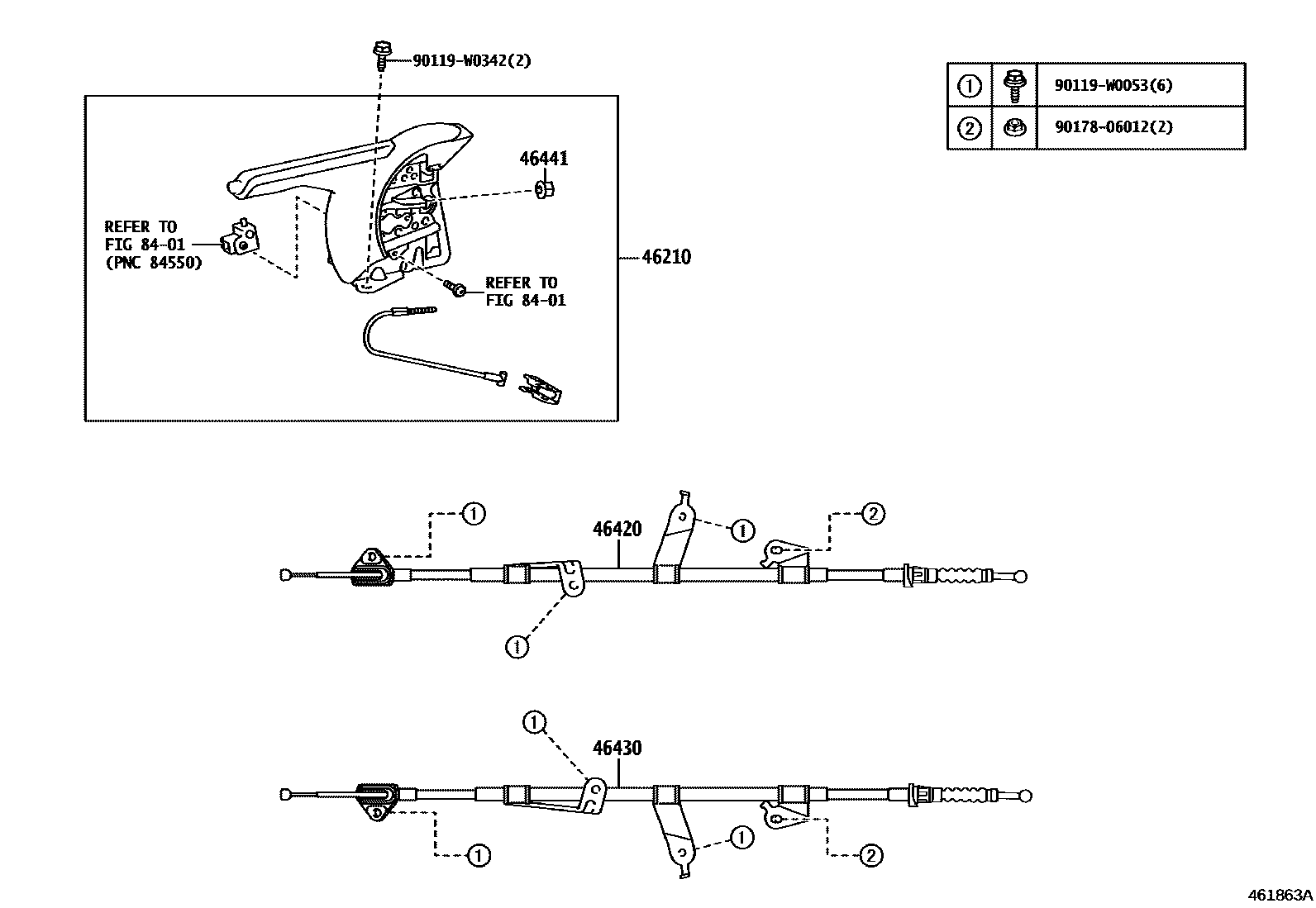

Toyota AYGO X — PARKING BRAKE & CABLE

46210LEVER ASSY, PARKING BRAKE

main46210-0H030-C0iKGB70..LHD..R202203-202401

BLACK,TRIM2#

main46210-0H030-C0iKGB70..G202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main46210-0H030-C0iKGB70..G202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-0H040iKGB70..LHD..R202203-202401

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-0H040iKGB70..LHD..R202203-202401

46441NUT, WIRE ADJUSTING, NO.1

main90177-06003iKGB70..LHD..R¥80202203-202401

8401

90119W0053

main90119-W0053¥100

90119W0342

main90119-W0342

9017806012

main90178-06012¥80

8 parts on this diagram · 1 diagram in section
