Toyota AYGO X — INSTRUMENT PANEL & GLOVE COMPARTMENT

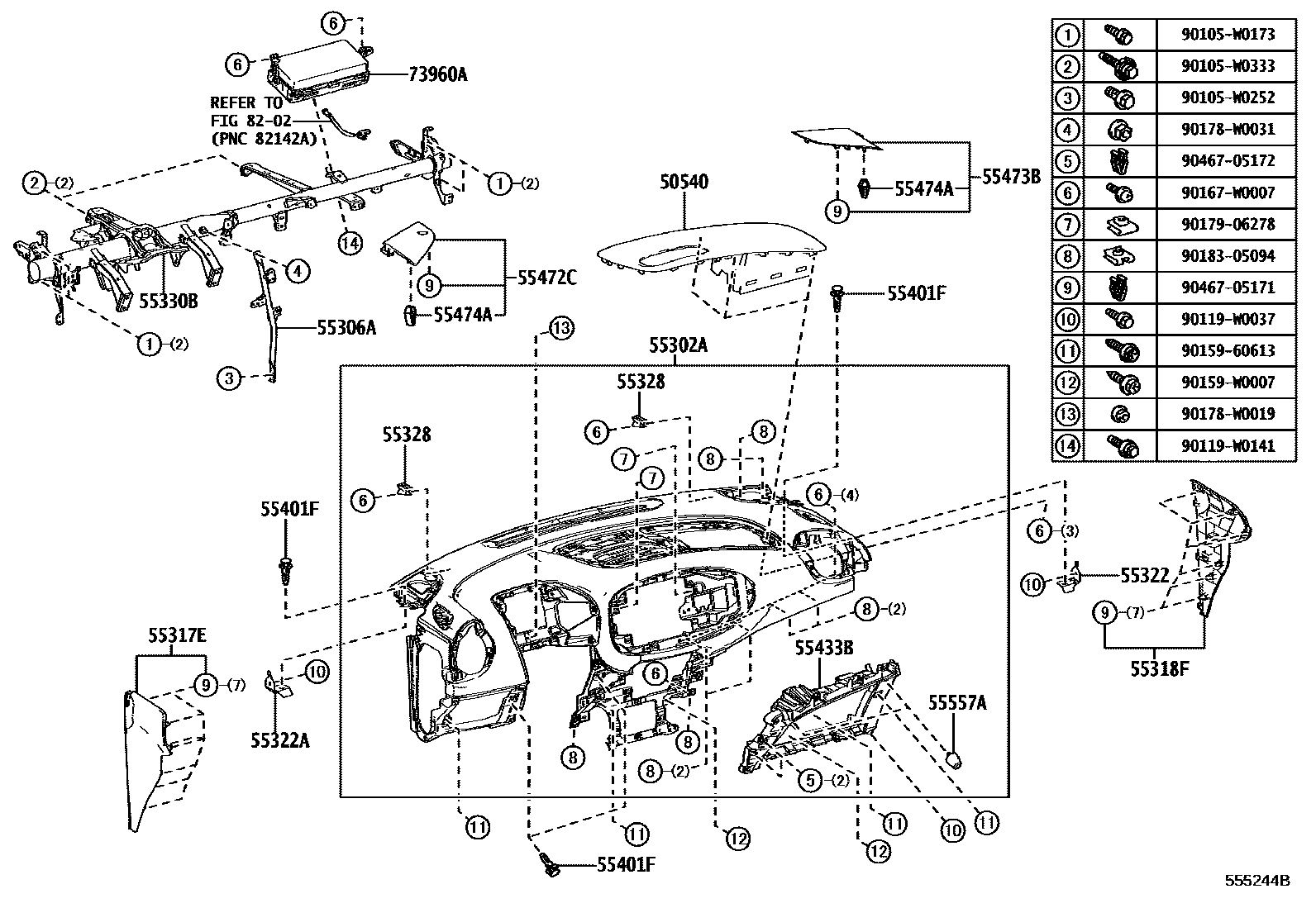

Parts diagram
50540DO0R ASSY, AIRBAG PASSENGER
main50540-0H070-C0i202203-202401
BLACK,TRIM2#
main50540-0H070-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main50540-0H070-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main50540-0H080-C0i202203
BLACK,TRIM2#
main50540-0H080-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main50540-0H080-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
main55302-0H010-C0i202203-202312
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55302-0H010-C0i202203-202312
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55302-0H010-C0i202203-202312
BLACK,TRIM2#
main55302-0H020-C0i202203-202312
TRIM1#,3#,4#,5#,6#,8#,9#
main55302-0H020-C0i202203-202312
TRIM0#,1#,3#,4#,5#,6#,8#
main55302-0H020-C0i202203-202312
TRIM2#
main55302-0H030i202312-202401
main55302-0H030-C0i202312
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55302-0H030-C0i202312
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55302-0H030-C0i202312
BLACK,TRIM2#
main55302-0H040-C0i202312
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55302-0H040-C0i202312
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55302-0H040-C0i202312
BLACK,TRIM2#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
main55306-0H050i202203-202407
main55306-0H051i202408
main55306-0H060i202203-202407
main55306-0H061i202408
55317EPANEL, INSTRUMENT SIDE, NO.1
main55317-0H020-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55317-0H020-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55317-0H020-C0i202203-202401
BLACK,TRIM2#
main55317-0H030-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55317-0H030-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55317-0H030-C0i202203
BLACK,TRIM2#
55318FPANEL, INSTRUMENT SIDE, NO.2
main55318-0H020-C0i202203-202401
BLACK,TRIM2#
main55318-0H020-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55318-0H020-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55318-0H030-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55318-0H030-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55318-0H030-C0i202203
BLACK,TRIM2#
55322BRACKET, INSTRUMENT PANEL, NO.1
main55363-0D010i202203-202401
55322ABRACKET, INSTRUMENT PANEL, NO.2
main55363-0D020i202203-202401
55328PIN, INSTRUMENT PANEL, NO.1
main55328-02110i202312-202401
main55328-12430i¥340202203-202312
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
main55330-0H050i202203-202312
main55330-0H060i202203-202312
main55330-0H070i202312-202401
main55330-0H080i202312
55401FCLIP(FOR SAFETY PAD)
main52161-02030i¥140202203-202401
55433BPANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
main55433-0H030-C0i202203-202401
BLACK,TRIM2#
main55433-0H030-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55433-0H030-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55433-0H040-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55433-0H040-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55433-0H040-C0i202203
BLACK,TRIM2#
55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1
main55472-0H030-C0i202203-202401
BLACK,TRIM2#
main55472-0H030-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55472-0H030-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55472-0H040-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55472-0H040-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55472-0H040-C0i202203
BLACK,TRIM2#
55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2
main55473-0H030-C0i202203-202401
BLACK,TRIM2#
main55473-0H030-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55473-0H030-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55473-0H040-C0i202203
BLACK,TRIM1#,3#,4#,5#,6#,8#,9#
main55473-0H040-C0i202203
BLACK,TRIM0#,1#,3#,4#,5#,6#,8#
main55473-0H040-C0i202203
BLACK,TRIM2#
55474ACLIP(FOR INSTRUMENT PANEL SPEAKER PANEL)
main90467-13082-A0i202203-202401
MELLOW WHITE
sub90467-13082¥80
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
main55557-60050i¥60202203-202401
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
main73960-0H050i202203-202401
main73960-0H060i202203
8202
90105W0173
main90105-W0173
90105W0252
main90105-W0252
90105W0333
main90105-W0333
90119W0037
main90119-W0037¥60
90119W0141
main90119-W0141
9015960613
main90159-60613¥60
90159W0007
main90159-W0007¥100
90167W0007
main90167-W0007¥110
90178W0019
main90178-W0019¥110
90178W0031
main90178-W0031¥100
9017906278
main90179-06278¥100
9018305094
main90183-05094¥90
9046705171
main90467-05171¥60
9046705172
main90467-05172¥60

31 parts on this diagram · 8 diagrams in section
