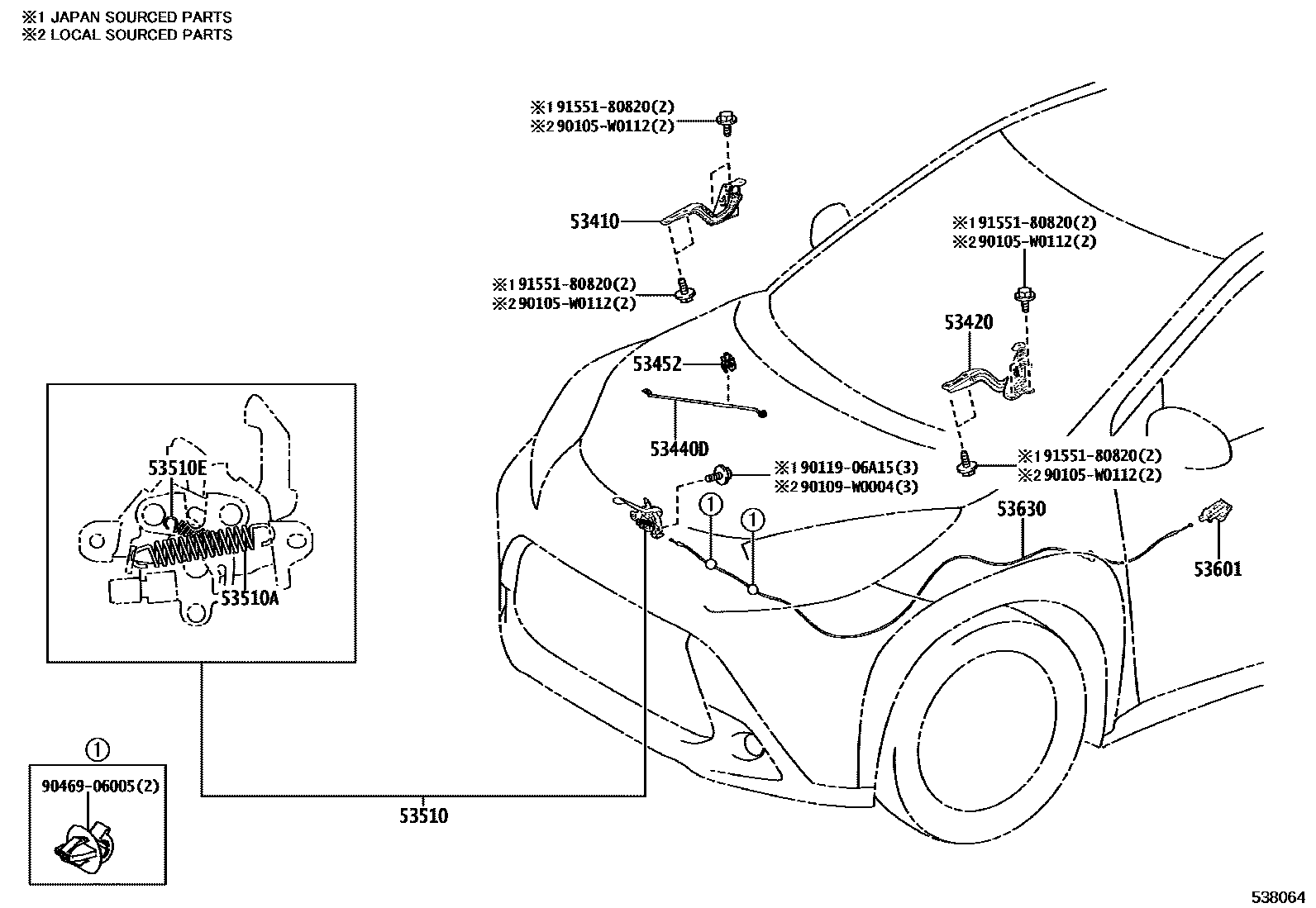

Toyota AYGO X — HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-K0020iKGB70..LHD..R202203-202401

main53410-K0020iKGB70..RHD;KGB70..LHD..(G,K,N)202203

53420HINGE ASSY, HOOD, LH

main53420-K0020iKGB70..LHD..R202203-202401

main53420-K0020iKGB70..RHD;KGB70..LHD..(G,K,N)202203

53440DSUPPORT ASSY, HOOD

main53440-0H050iKGB70..LHD..R202203-202401

main53440-0H050iKGB70..RHD;KGB70..LHD..(G,K,N)202203

53452HOLDER, HOOD STAY

main53452-K0010iKGB70..RHD;KGB70..LHD..(G,K,N)202203

main53452-K0010iKGB70..LHD..R202203-202401

53510LOCK ASSY, HOOD

main53510-0H130iKGB70..RHD202203

main53510-0H150iKGB70..LHD..(G,K,N)202203

main53510-0H150iKGB70..LHD..R202203-202401

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-W0006iKGB70..RHD;KGB70..LHD..(G,K,N)202203

WD=1.6,CW=13

main90506-W0006iKGB70..LHD..R202203-202401

WD=1.6,CW=13

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-W0004iKGB70..RHD202203

WD=1.0,CW=15.5

main90506-W0005iKGB70..LHD..R202203-202401

WD=1.0,CW=24

main90506-W0005iKGB70..LHD..(G,K,N)202203

WD=1.0,CW=24

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-F4020-C0iKGB70..K202203

BLACK,TRIM2#

sub53601-F4020¥1,860

main53601-F4020-C0iKGB70..LHD..N;KGB70..RHD..(N,R)202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

sub53601-F4020¥1,860

main53601-F4020-C0iKGB70..LHD..N;KGB70..RHD..(N,R)202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

sub53601-F4020¥1,860

main53601-F4020-C0iKGB70..LHD..R202203-202401

BLACK,TRIM2#

sub53601-F4020¥1,860

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0H030iKGB70..RHD202203

main53630-0H040iKGB70..LHD..R202203-202401

main53630-0H040iKGB70..LHD..(G,K,N)202203

90105W0112

main90105-W0112

90109W0004

main90109-W0004

9011906A15

main90119-06A15¥60

9046906005

main90469-06005¥80

9155180820

main91551-80820¥80

14 parts on this diagram · 2 diagrams in section
