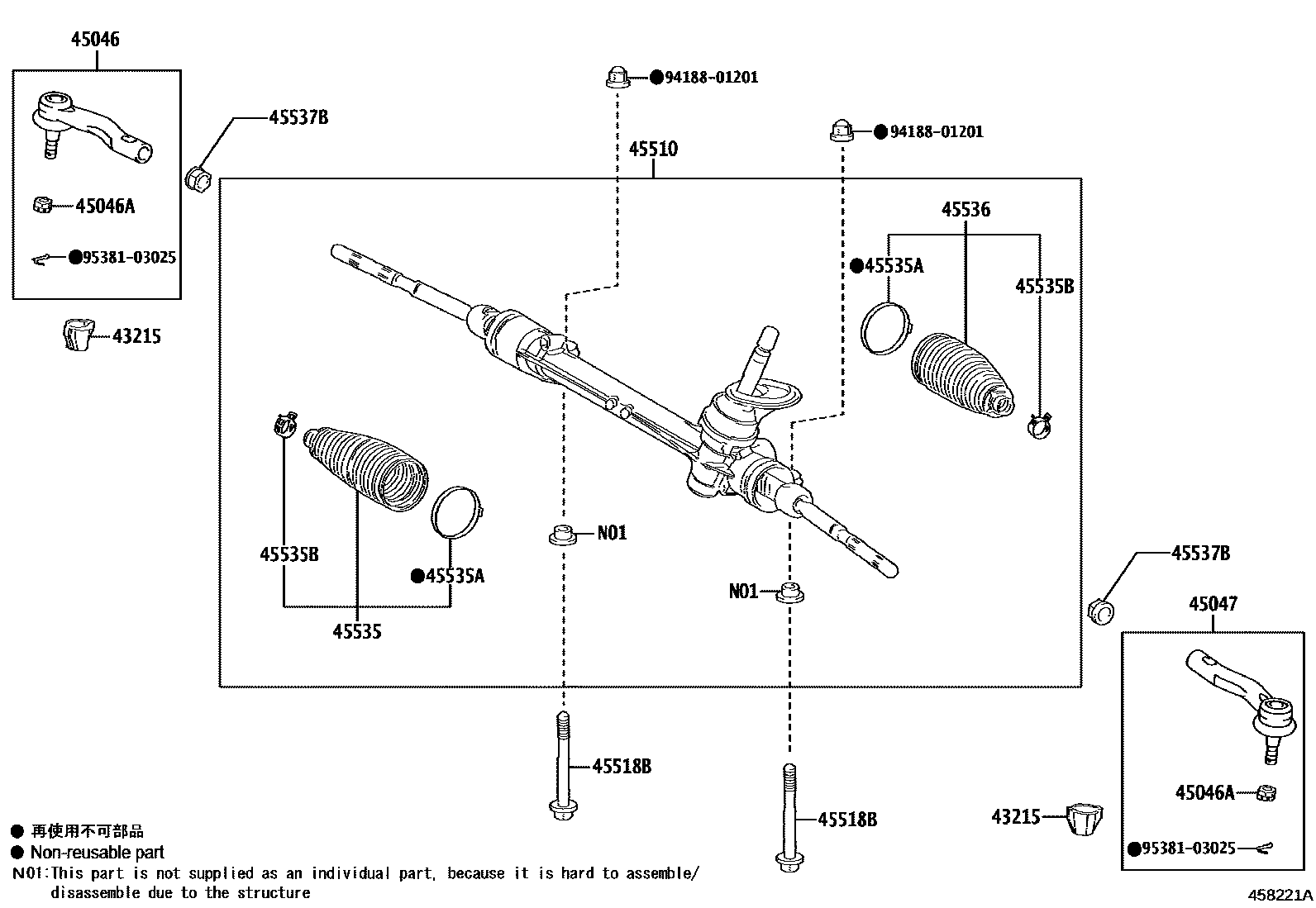

Toyota AYGO X — FRONT STEERING GEAR & LINK

0001 1 0002 1

43215SEAL, STEERING KNUCKLE

main43215-12010iKGB70..RHD;KGB70..LHD..(G,K,N)¥210202203

main43215-12010iKGB70..LHD..R¥210202203-202401

45046END SUB-ASSY, TIE ROD, RH

main45046-F9010iKGB70..LHD..R202203-202401

main45046-F9010iKGB70..RHD;KGB70..LHD..(G,K,N)202203

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iKGB70..LHD..R¥130202203-202401

main90171-12028iKGB70..RHD;KGB70..LHD..(G,K,N)¥130202203

45047END SUB-ASSY, TIE ROD, LH

main45047-F9010iKGB70..LHD..R202203-202401

main45047-F9010iKGB70..RHD;KGB70..LHD..(G,K,N)202203

45510GEAR ASSY, STEERING

main45510-0H100iKGB70..LHD..R202203-202401

main45510-0H100iKGB70..LHD..(G,K,N)202203

main45510-0H110iKGB70..RHD202203

45518BBOLT, STEERING RACK HOUSING

main90119-12458iKGB70..LHD..R¥360202203-202401

(J)

main90119-12458iKGB70..RHD;KGB70..LHD..(G,K,N)¥360202203

(J)

main90119-W0367iKGB70..RHD;KGB70..LHD..(G,K,N)202203

(L)

main90119-W0367iKGB70..LHD..R202203-202401

(L)

45535BOOT, STEERING RACK, NO.1

main45535-F9010iKGB70..LHD..R202203-202401

main45535-F9010iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202404

main45535-F9011iKGB70..G,K,N202404

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-F4010iKGB70..LHD..R202203-202401

main45538-F4010iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202403

main45538-F4011iKGB70..G,K,N202404

45535BCLIP(FOR STEERING RACK BOOT)

main45537-02010iKGB70..LHD..R¥200202203-202401

main45537-02010iKGB70..RHD;KGB70..LHD..(G,K,N)¥200202203

45536BOOT, STEERING RACK, NO.2

main45535-F9010iKGB70..LHD..R202203-202401

main45535-F9010iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202404

main45535-F9011iKGB70..G,K,N202404

45537BNUT, RACK END LOCK

main90178-16001iKGB70..LHD..R¥120202203-202401

main90178-16001iKGB70..RHD;KGB70..LHD..(G,K,N)¥120202203

9418801201

main94188-01201¥160

9538103025

main95381-03025¥130

13 parts on this diagram · 2 diagrams in section
