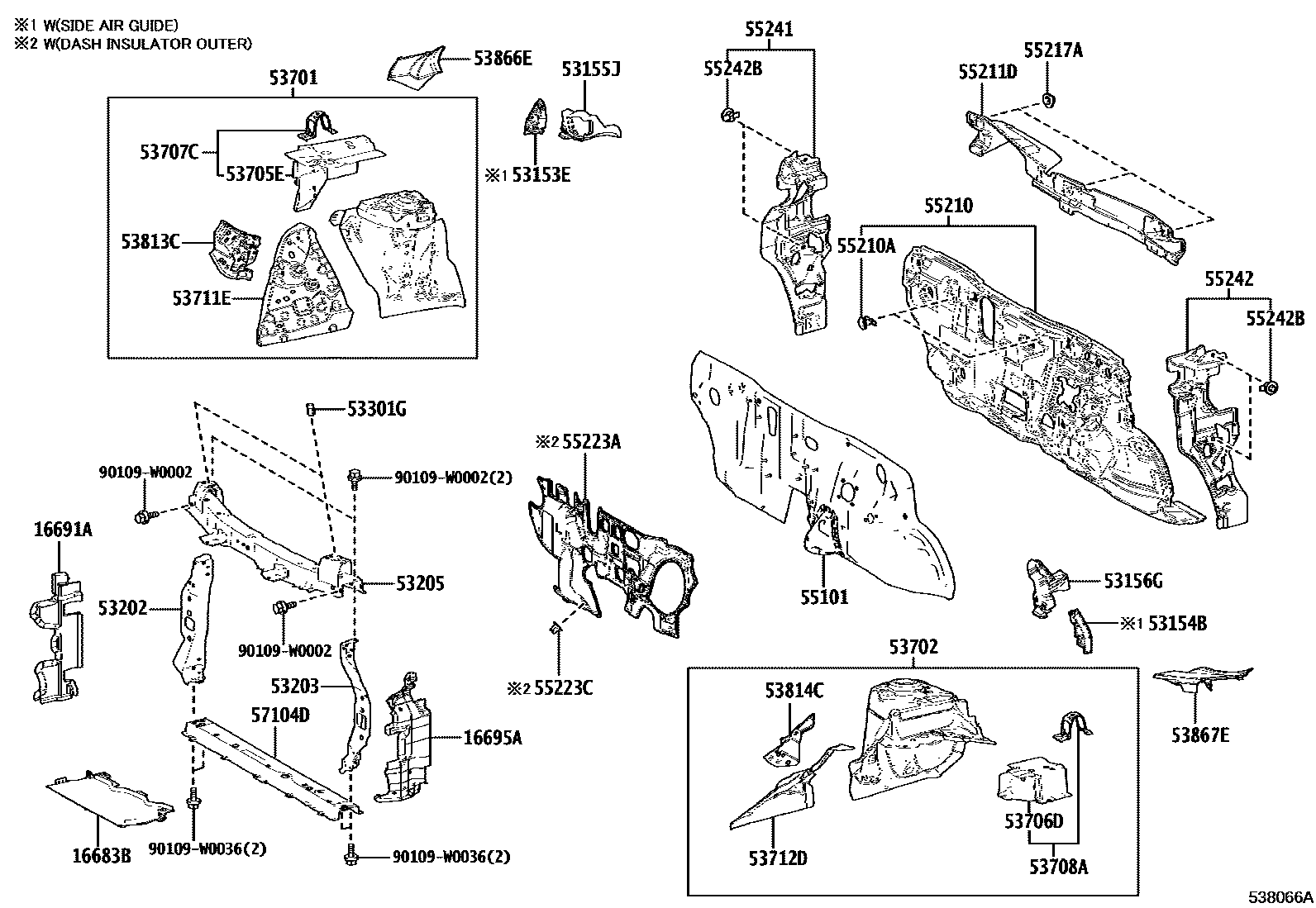

Toyota AYGO X — FRONT FENDER APRON & DASH PANEL
16683BPLATE, RADIATOR LOWER AIR GUIDE, NO.2
16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
53153EGUIDE, FRONT SIDE AIR
53154BGUIDE, FRONT SIDE AIR, NO.2
53155JSEAL, RADIATOR GRILLE, NO.1
53156GSEAL, RADIATOR GRILLE, NO.2
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53301GCUSHION, HOOD BUMPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH
53708AEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT LH
53711EAPRON, FRONT FENDER, RH
53712DAPRON, FRONT FENDER, LH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53866ESEAL, FRONT FENDER TO COWL SIDE, RH
53867ESEAL, FRONT FENDER TO COWL SIDE, LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
55210ACLIP
55211DSILENCER, FRONT PANEL, UPPER
55217ARETAINER, DASH PANEL SILENCER
55223AINSULATOR, DASH PANEL, OUTER
55223CCLIP
55241SILENCER, FRONT PANEL SIDE, NO.1 RH
55242SILENCER, FRONT PANEL SIDE, NO.1 LH
55242BCLIP, FRONT PANEL SIDE SILENCER
57104DMEMBER SUB-ASSY, FRONT CROSS
90109W0002
main90109-W0002
90109W0036
main90109-W0036
36 parts on this diagram · 2 diagrams in section
