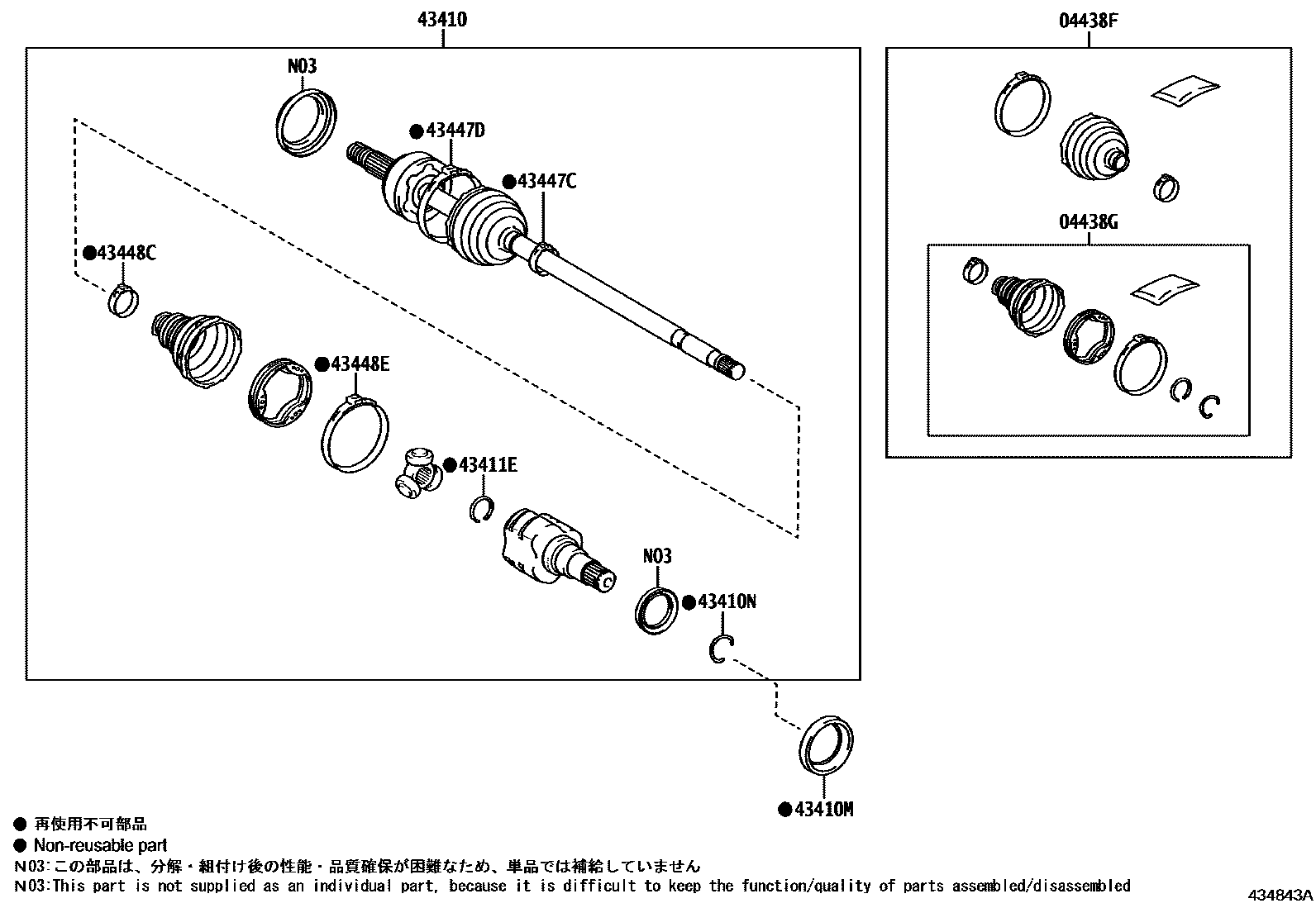

Toyota AYGO X — FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-0H050iKGB70..RHD;KGB70..LHD..(G,K,N)202203

main04427-0H050iKGB70..LHD..R202203-202401

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-0H030iKGB70..LHD..R202203-202401

main04437-0H030iKGB70..RHD;KGB70..LHD..(G,K,N)202203

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0H060iKGB70..LHD..R202203-202401

main43410-0H060iKGB70..RHD;KGB70..LHD..(G,K,N)202203

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34047iKGB70..CVT¥350202203

main90311-W0025iKGB70..LHD..R202203-202401

main90311-W0025iKGB70..RHD..5F;KGB70..LHD..5F..(G,K,N)202203

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-0H040iKGB70..LHD..R202203-202401

main43425-0H040iKGB70..RHD;KGB70..LHD..(G,K,N)202203

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-0H010iKGB70..LHD..R202203-202401

main43425-0H010iKGB70..RHD;KGB70..LHD..(G,K,N)202203

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0H060iKGB70..RHD;KGB70..LHD..(G,K,N)202203

main42345-0H060iKGB70..LHD..R202203-202401

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-0H090iKGB70..LHD..R202203-202401

main42345-0H090iKGB70..RHD;KGB70..LHD..(G,K,N)202203

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-F4090iKGB70..LHD..R202203-202401

main42345-F4090iKGB70..RHD;KGB70..LHD..(G,K,N)202203

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0H100iKGB70..LHD..R202203-202401

main42345-0H100iKGB70..RHD;KGB70..LHD..(G,K,N)202203

10 parts on this diagram · 2 diagrams in section
