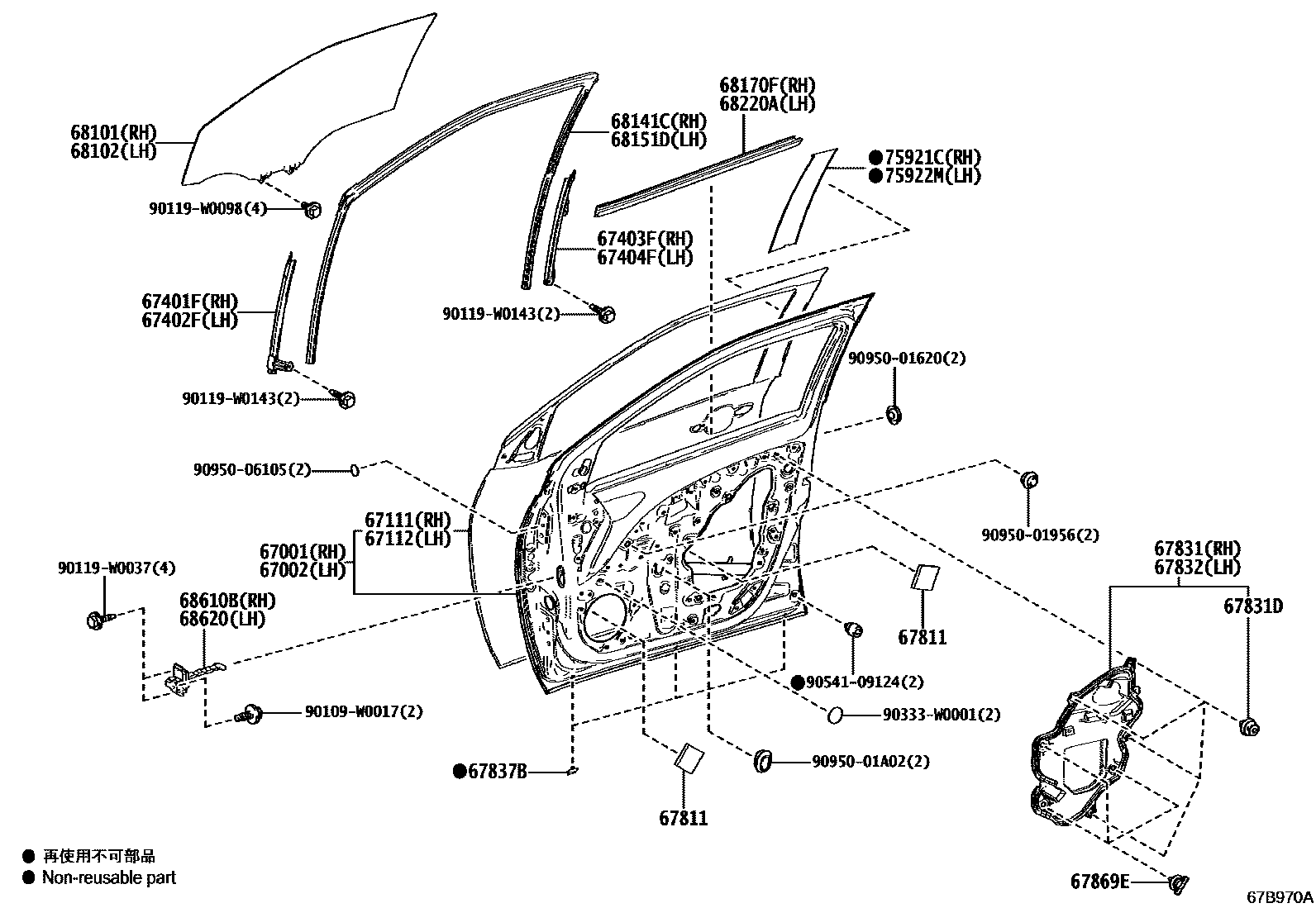

Toyota AYGO X — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0H080iKGB70..LHD..N;KGB70..RHD..(N,R)202203-202401

main67001-0H090iKGB70..G,K202203

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0H080iKGB70..LHD..N;KGB70..RHD..(N,R)202203-202401

main67002-0H090iKGB70..G,K202203

67111PANEL, FRONT DOOR, OUTER RH

main67111-0H050iKGB70..LHD..N;KGB70..RHD..(N,R)202203-202401

main67111-0H060iKGB70..G,K202203

67112PANEL, FRONT DOOR, OUTER LH

main67112-0H050iKGB70..LHD..R202203-202401

main67112-0H060iKGB70..G,K202203

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0H030iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0H030iKGB70..LHD..R202203-202401

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0H070iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0H070iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

67811PAD, FRONT DOOR SILENCER

main67811-12190iKGB70..LHD..R¥720202203-202401

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0H050iKGB70..LHD..R202203-202401

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iKGB70..RHD;KGB70..LHD..(G,K,N)¥80202203-202401

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0H050iKGB70..LHD..R202203-202401

67837BSEAL, FRONT DOOR DUST PROOF

main67837-48050iKGB70..LHD..R¥80202203-202401

67869ECLIP, FRONT DOOR WEATHERSTRIP

main67869-47010iKGB70..LHD..R¥140202203-202401

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0H010iKGB70..LHD..R202203-202401

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0H010iKGB70..RHD;KGB70..LHD..(G,K,N)202203-202401

68141CRUN, FRONT DOOR GLASS, RH

main68141-0H050iKGB70..LHD..R202203-202401

68151DRUN, FRONT DOOR GLASS, LH

main68151-0H050iKGB70..LHD..R202203-202401

68170FWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER RH

main68170-0H070iKGB70..LHD..R202203-202401

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-0H070iKGB70..LHD..R202203-202401

68610BCHECK ASSY, FRONT DOOR, RH

main68610-0H030iKGB70..R202305-202401

main68610-70010iKGB70202203-202304

sub68610-0H030

68620CHECK ASSY, FRONT DOOR, LH

main68610-0H030iKGB70..R202305-202401

main68610-70010iKGB70202203-202304

sub68610-0H030

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0H070iKGB70..N202203

main75921-0H080iKGB70..G,K202203

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0H070iKGB70..N202203

main75922-0H080iKGB70..G,K202203

90109W0017

main90109-W0017¥60

90119W0037

main90119-W0037¥60

90119W0098

main90119-W0098¥60

90119W0143

main90119-W0143

90333W0001

main90333-W0001¥120

9054109124

main90541-09124¥100

9095001620

main90950-01620¥110

9095001956

main90950-01956¥100

9095001A02

main90950-01A02¥100

9095006105

main90950-06105¥110

34 parts on this diagram · 2 diagrams in section
