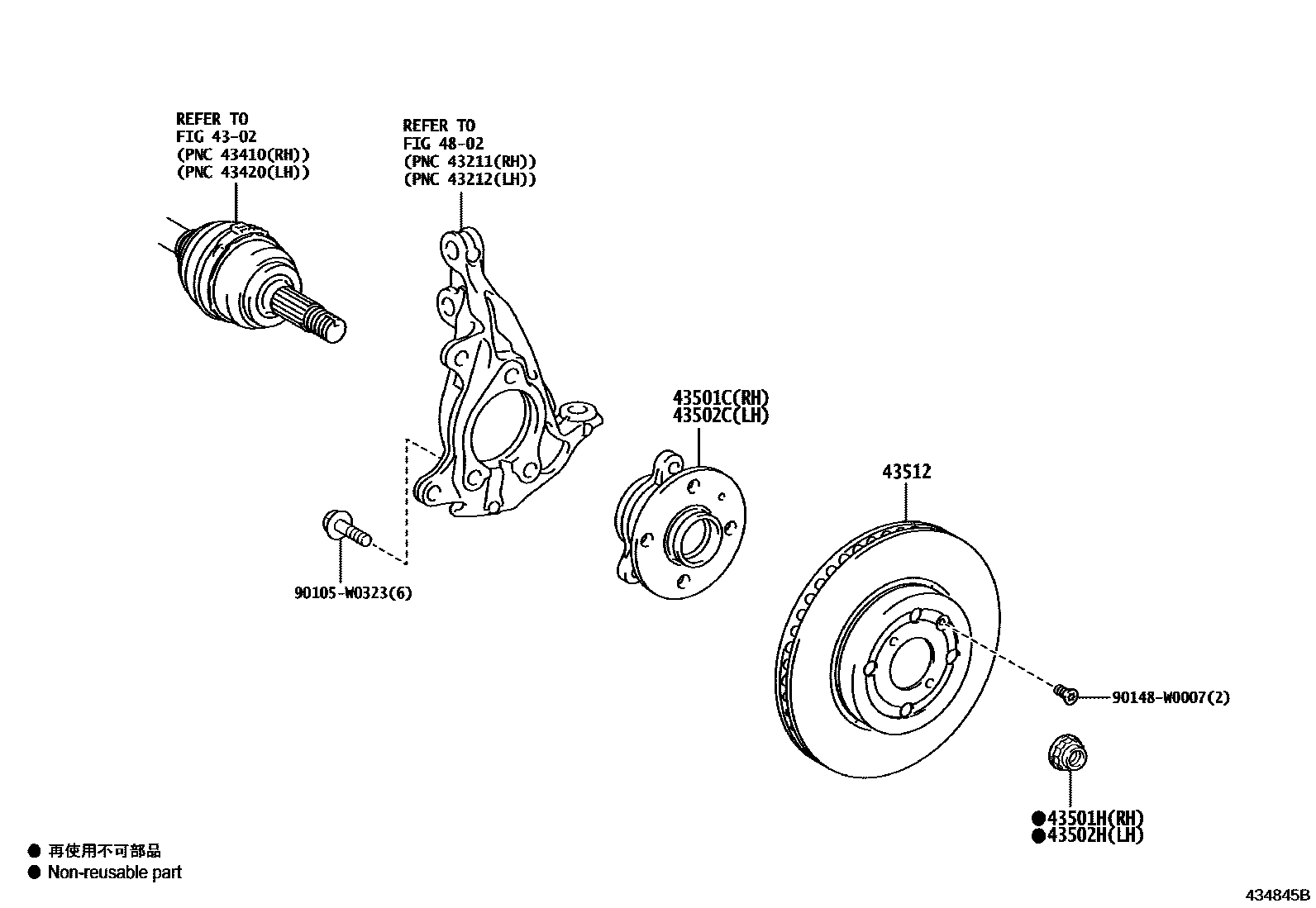

Toyota AYGO X — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0H010iKGB70..LHD..R202203-202401

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKGB70..LHD..R¥220202203-202401

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0H010iKGB70..LHD..R202203-202401

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iKGB70..LHD..R¥220202203-202401

43512DISC, FRONT

main43512-0H030iKGB70..LHD..R202203-202401

4802

90105W0323

main90105-W0323

90148W0007

main90148-W0007

9 parts on this diagram · 1 diagram in section
