Toyota AYGO X — FLOOR SIDE MEMBER

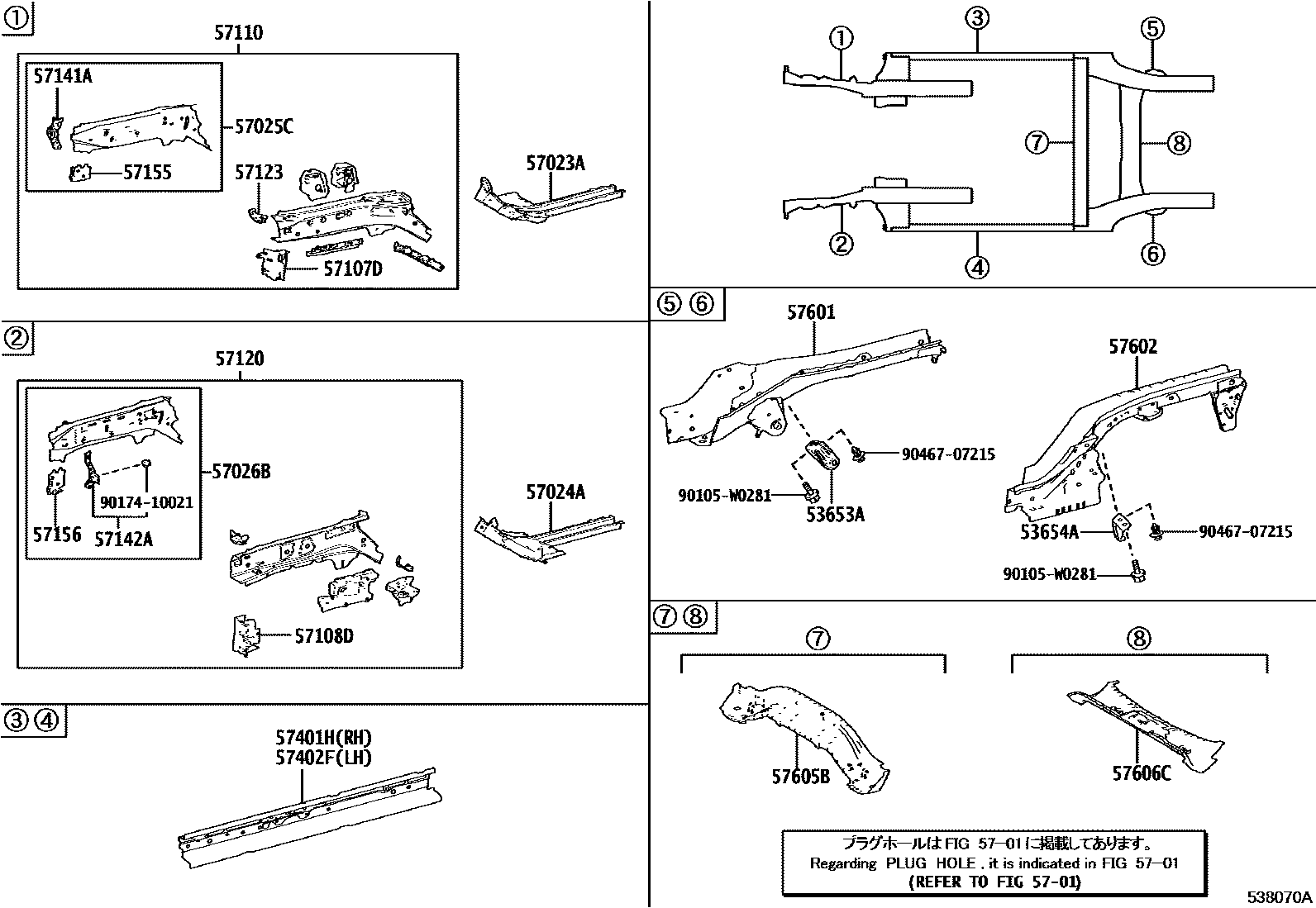

Parts diagram

53653ABRACE, REAR SUSPENSION, LOWER RH

main53653-K0010i¥1,060202203-202401

53654ABRACE, REAR SUSPENSION, LOWER LH

main53654-K0010i¥1,060202203-202401

5701

57023AMEMBER SUB-ASSY, REAR SIDE, RH

main57023-0D240i202203-202401

57024AMEMBER SUB-ASSY, REAR SIDE, LH

main57024-0D220i202203-202401

57025CMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D110i202203-202401

57026BMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D110i202203-202401

57107DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-0H020i202203-202401

57108DREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57108-0H020i202203-202401

57110MEMBER ASSY, FRONT SIDE, RH

main57110-0H010i202203-202401

57120MEMBER ASSY, FRONT SIDE, LH

main57120-0H010i202203-202401

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-0H020i202203-202401

57141ASUPPORT, FRONT BUMPER ARM, RH

main57141-0D010i202203-202401

57142ASUPPORT, FRONT BUMPER ARM, LH

main57142-0D010i202203-202401

57155REINFORCEMENT, FRONT SIDE MEMBER, NO.3, RH

main57155-0D120i202203-202401

57156REINFORCEMENT, FRONT SIDE MEMBER, NO.3, LH

main57156-0D060i202203-202401

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0D310i202203-202401

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0D290i202203-202401

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0H030i202203-202401

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0H040i202203-202401

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0H020i202203-202401

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0H030i202203-202401

90105W0281

main90105-W0281

9017410021

main90174-10021¥170

9046707215

main90467-07215¥80

25 parts on this diagram · 1 diagram in section
