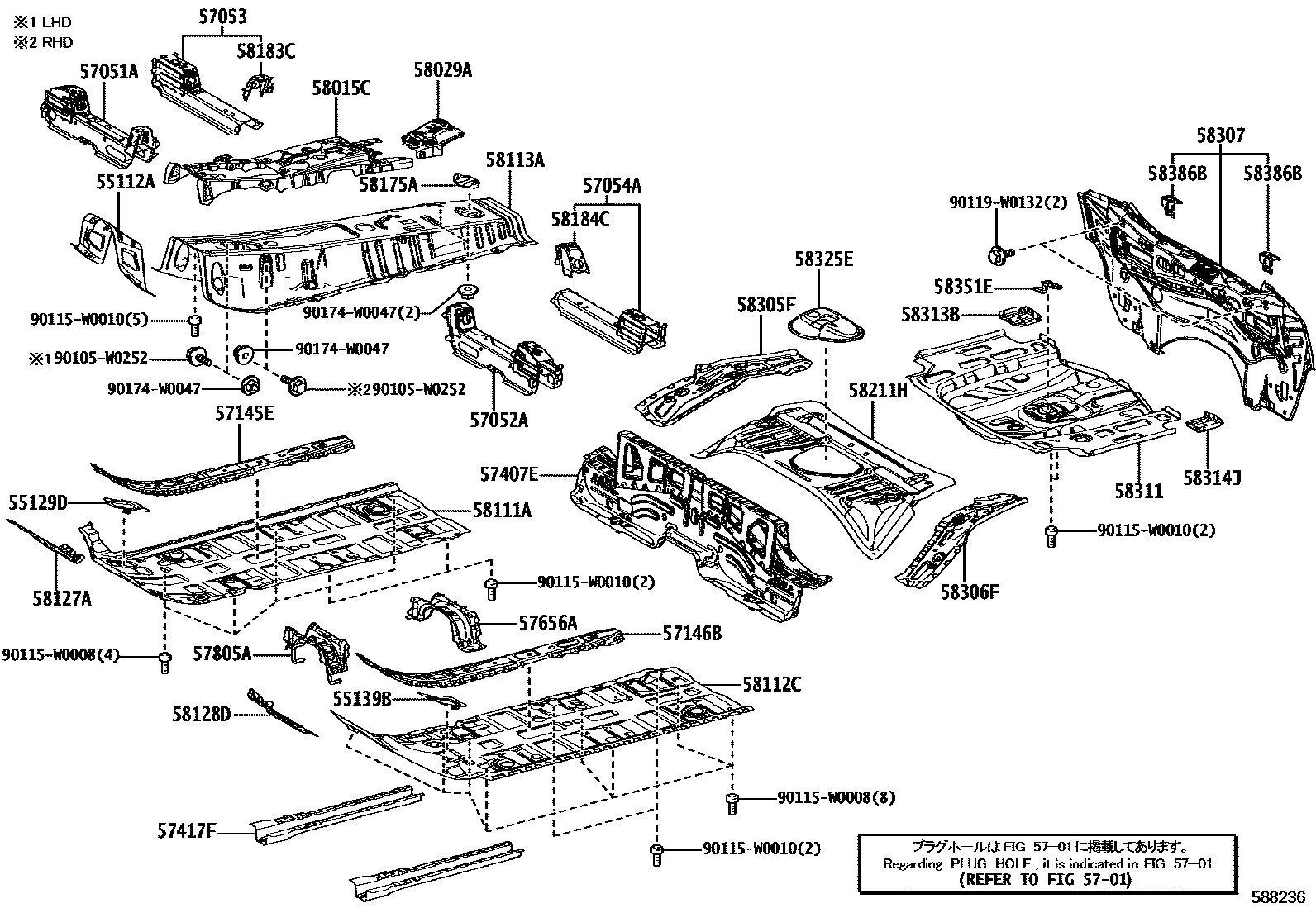

Toyota AYGO X — FLOOR PAN & LOWER BACK PANEL
55112APANEL, DASH, NO.2
55129DCOVER, DASH PANEL HOLE, RH
55139BCOVER, DASH PANEL HOLE, LH
5701
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57145EREINFORCEMENT, FRONT SIDE MEMBER, REAR RH
57146BREINFORCEMENT, FRONT SIDE MEMBER, REAR LH
57407EMEMBER SUB-ASSY, CENTER FLOOR CROSS
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57805AREINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
58015CPANEL SUB-ASSY, FRONT FLOOR HOUSING
58029ABRACKET SUB-ASSY, PARKING BRAKE WIRE CLAMP
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58127AREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH
58128DREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58183CBRACKET, FRONT SEAT MOUNTING, INSIDE RH
58184CBRACKET, FRONT SEAT MOUNTING, INNER LH
58211HPAN, CENTER FLOOR
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313BPANEL, REAR FLOOR SIDE, RH
58314JPANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58386BBRACKET, REAR BUMPER COVER, NO.2
90105W0252
main90105-W0252
90115W0008
90115W0010
90119W0132
main90119-W0132
90174W0047
main90174-W0047
39 parts on this diagram · 1 diagram in section
