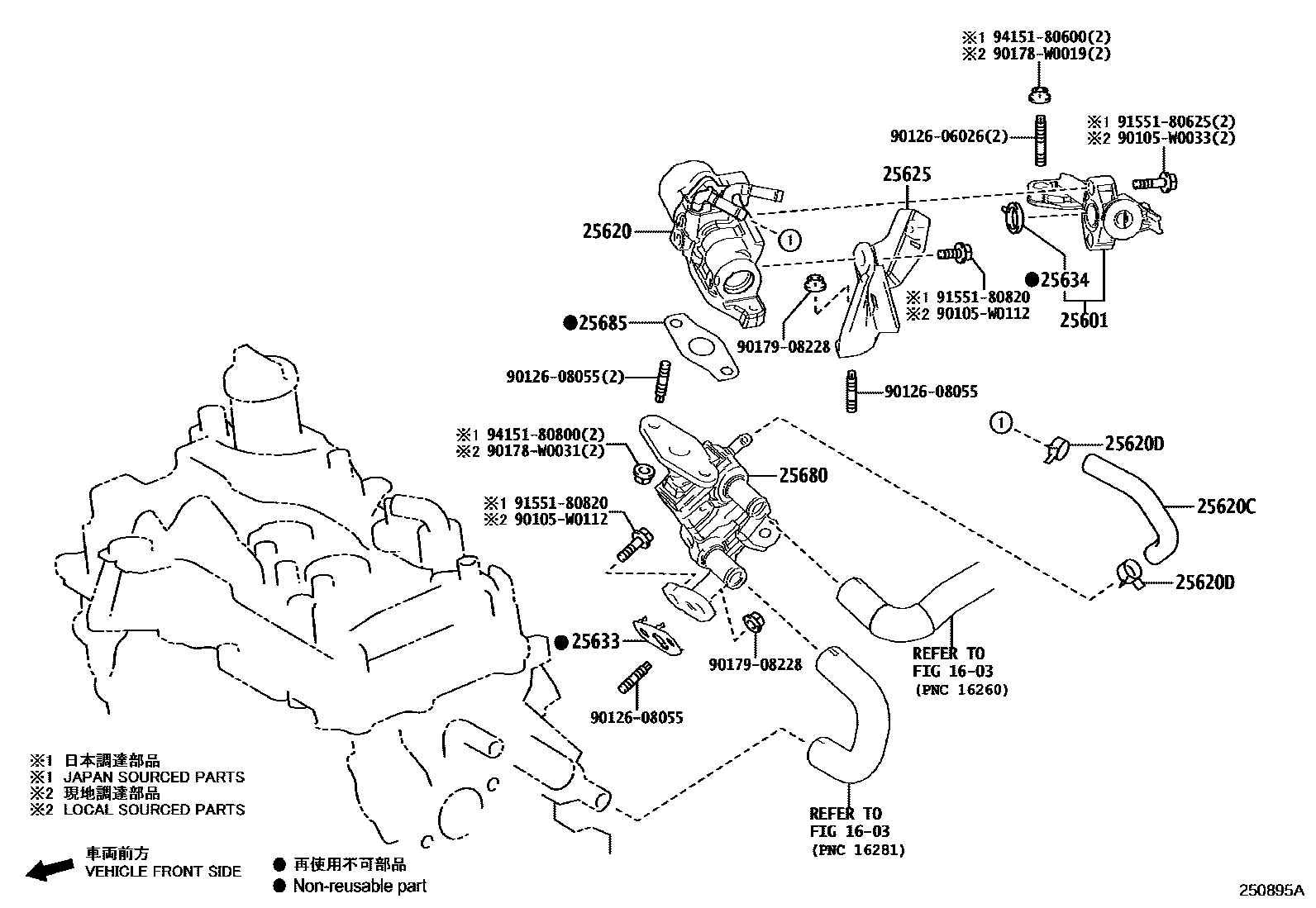

Toyota AYGO X — EXHAUST GAS RECIRCULATION SYSTEM

1603

25601PIPE SUB-ASSY, EGR, NO.1

main25601-0Q010i1KRFE..KGB70..LHD..R202203-202401

25620VALVE ASSY, EGR

main25620-40040i1KRFE..KGB70..LHD..R202203-202401

25620CHOSE, WATER BY-PASS, NO.1

main16267-0Q010i1KRFE..KGB70..LHD..R202203-202401

25620DCLIP(FOR WATER BY-PASS HOSE, NO.1)

main96138-41501i1KRFE..KGB70..LHD..R¥120202203-202401

25625BRACKET, EGR VALVE

main25625-0Q010i1KRFE..KGB70..LHD..R202203-202401

25633GASKET, EGR VALVE

main25633-0Q030i1KRFE..KGB70..LHD..R202203-202401

25634GASKET, EGR PIPE

main25634-40010i1KRFE..KGB70..LHD..R202203-202401

25680COOLER ASSY, EGR

main25680-0Q010i1KRFE..KGB70..LHD..R202203-202401

25685GASKET, EGR COOLER, NO.1

main25685-0Q010i1KRFE..KGB70..LHD..R202203-202401

90105W0033

main90105-W0033¥60

90105W0112

main90105-W0112

9012606026

main90126-06026¥60

9012608055

main90126-08055¥80

90178W0019

main90178-W0019¥110

90178W0031

main90178-W0031¥100

9017908228

main90179-08228¥90

9155180625

main91551-80625¥60

9155180820

main91551-80820¥80

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

21 parts on this diagram · 1 diagram in section
