Toyota AYGO X — DISC WHEEL & WHEEL CAP

0001 1 0002 1

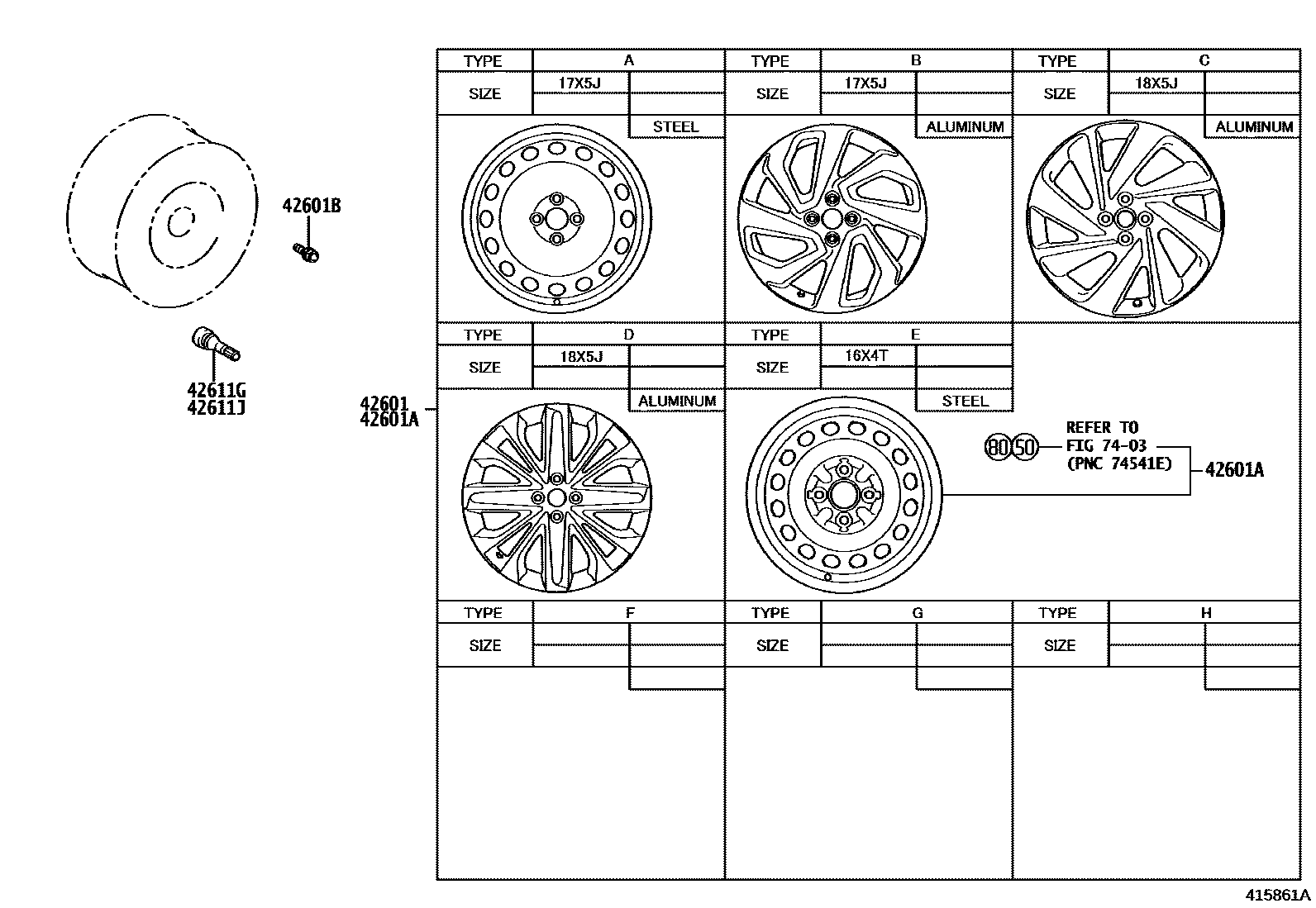

42601WHEEL, DISC

main42611-0H070iKGB70..K202203-202212

17X5J, #,TYPE B:REFER ILLUST.

main42611-0H070iKGB70..K202203-202212

17X5J, #,TIRE & DISK WHEEL-175/65R17 5J ALUMINUM,TYPE B:REFER ILLUST.

main42611-0H080iKGB70..G202203

18X5J, #,TYPE C:REFER ILLUST.

main42611-0H080iKGB70..K202203

18X5J, #,TIRE & DISK WHEEL-175/60R18 5J ALUMINUM,TYPE C:REFER ILLUST.

main42611-0H090iKGB70..LHD..R202203-202401

17X5J, #,TYPE A:REFER ILLUST.

main42611-YP460iKGB70..K202212

17X5J,#,TYPE B:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

42601BBOLT, HUB (FOR AXLE)

main90942-02089iKGB70..LHD..R¥310202203-202401

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iKGB70..LHD..R¥390202203-202401

42611JVALVE (FOR TUBELESS TIRE SPARE)

7403

6 parts on this diagram · 2 diagrams in section
