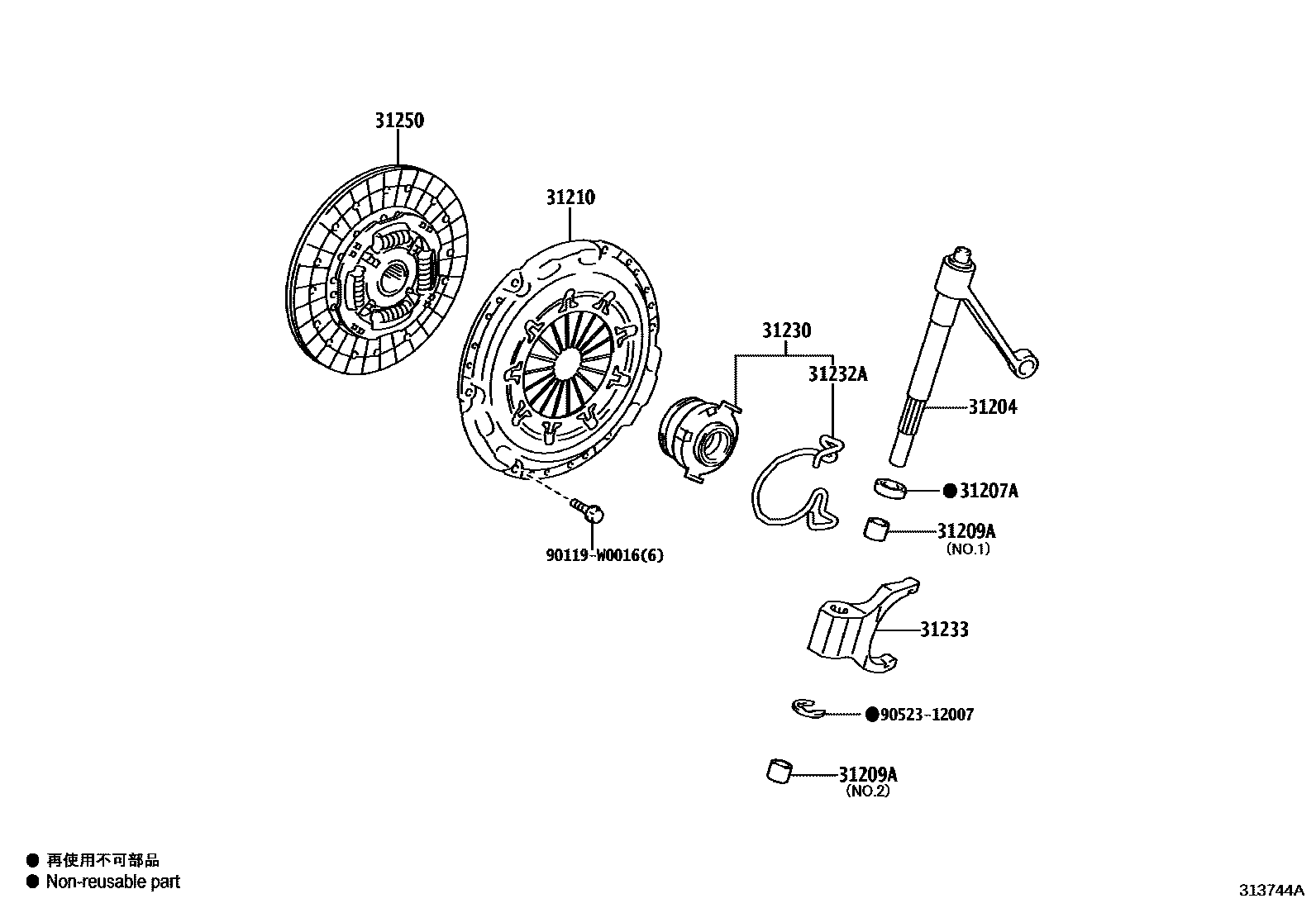

Toyota AYGO X — CLUTCH & RELEASE FORK

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-52060iKGB70..RHD..5F;KGB70..LHD..5F..(G,K,N)202203-202401

31207ASEAL, OIL(FOR CLUTCH RELEASE FORK LEVER)

main90310-W0002iKGB70..LHD..R202203-202401

31209ABUSH, BIMETAL FORMED(FOR CLUTCH RELEASE LEVER SUPPORT)

main90384-W0004iKGB70..LHD..R202203-202401

NO.2:REFER ILLUST.

main90384-W0005iKGB70..RHD..5F;KGB70..LHD..5F..(G,K,N)202203-202401

NO.1:REFER ILLUST.

31210COVER ASSY, CLUTCH

main31210-K0020iKGB70..RHD..5F;KGB70..LHD..5F..(G,K,N)202203-202401

31230BEARING ASSY, CLUTCH RELEASE

main31230-52041iKGB70..LHD..R202203-202401

31232ACLIP, RELEASE BEARING HUB

main31232-52042iKGB70..LHD..R202203-202401

31233FORK, CLUTCH RELEASE

main31233-0D012iKGB70..LHD..R202203-202401

31250DISC ASSY, CLUTCH

main31250-K0020iKGB70..LHD..R202203-202401

90119W0016

main90119-W0016

9052312007

main90523-12007¥70

10 parts on this diagram · 1 diagram in section
