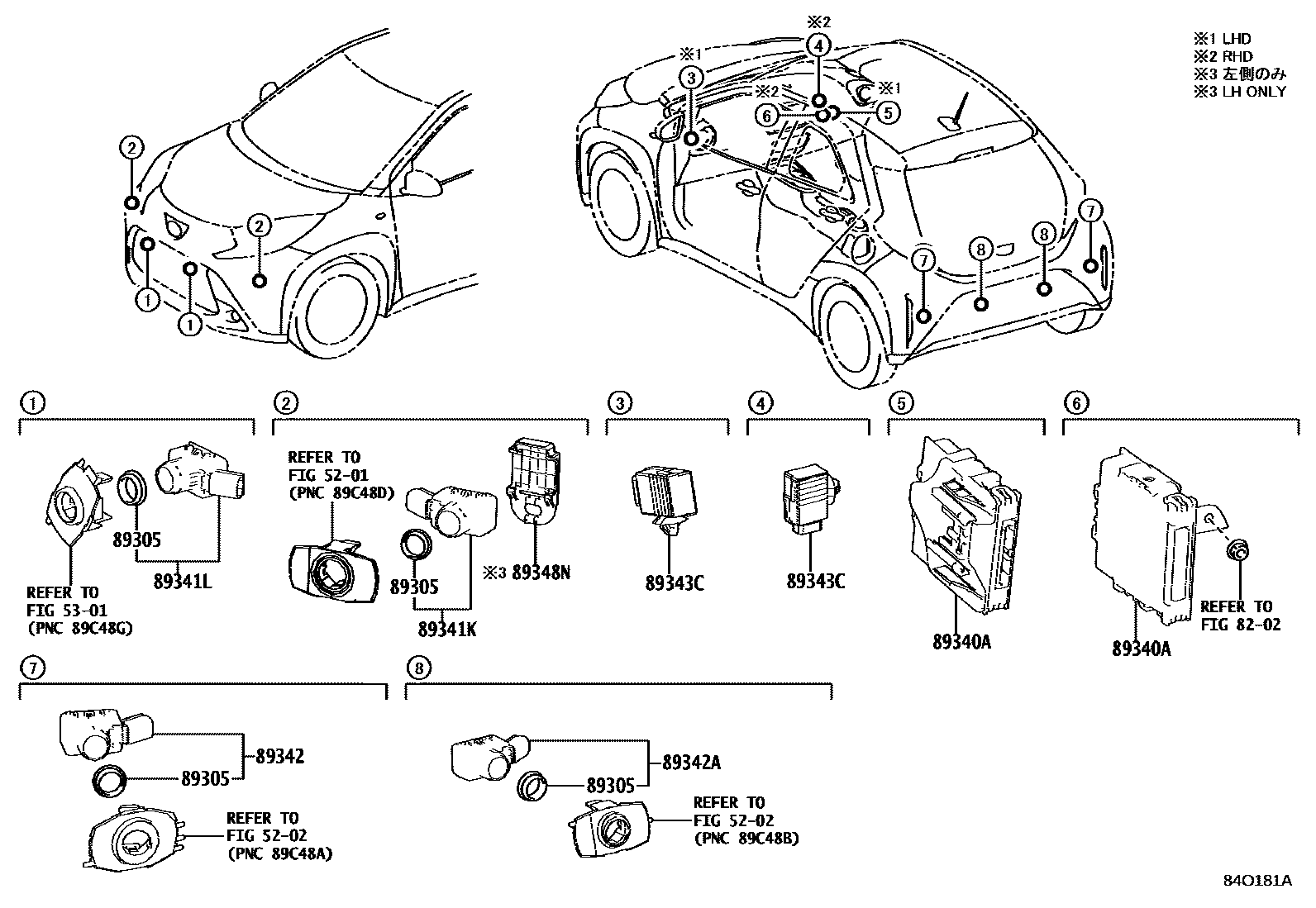

Toyota AYGO X — CLEARANCE & BACK SONAR
5201
5202
5301
8202
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
*614
*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
89341LSENSOR, ULTRASONIC, FRONT CENTER
89342SENSOR, ULTRASONIC, REAR CORNER
BLACK MC.,2TY ,2UP ,2VH ,2VJ ,2VK ,2VL ,2VN ,M14
89342ASENSOR, ULTRASONIC, REAR CENTER
89343CBUZZER, CLEARANCE WARNING, NO.1
89348NCLIP, ULTRASONIC SENSOR, NO.1
12 parts on this diagram · 1 diagram in section
