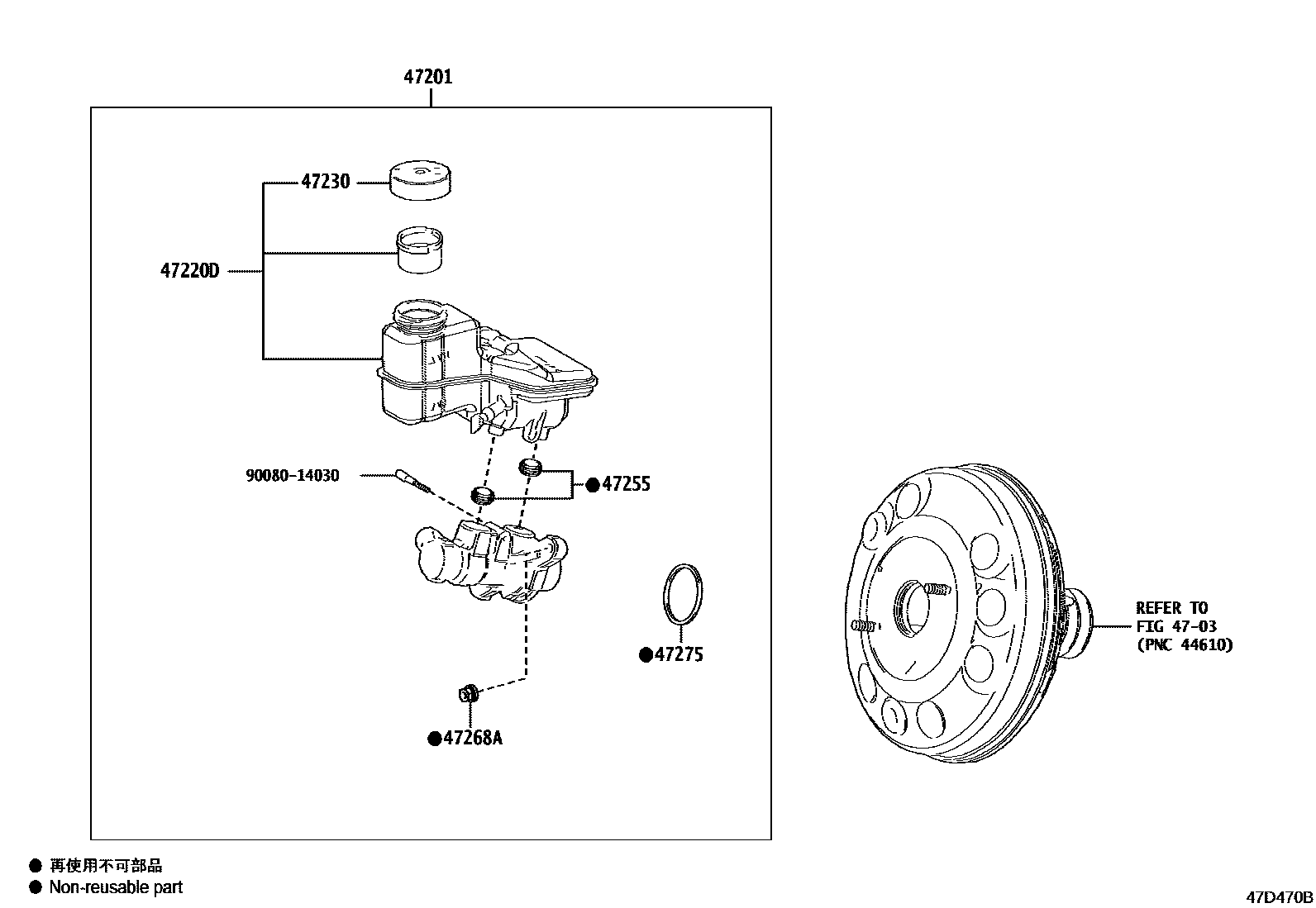

Toyota AYGO X — BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-K9025iKGB70..LHD..R202203-202401

main47201-K9035iKGB70..RHD202203

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-K0030iKGB70..LHD..R202203-202401

main47220-K0040iKGB70..RHD202203

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D180iKGB70..LHD..R202203-202401

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09030iKGB70..LHD..R202203-202401

47268ANUT, BRAKE MASTER CYLINDER

main47268-05010iKGB70..LHD..R202203-202401

47275GASKET, BRAKE MASTER CYLINDER

main47275-0D020iKGB70..LHD..R202203-202401

9008014030

main90080-14030

8 parts on this diagram · 2 diagrams in section
