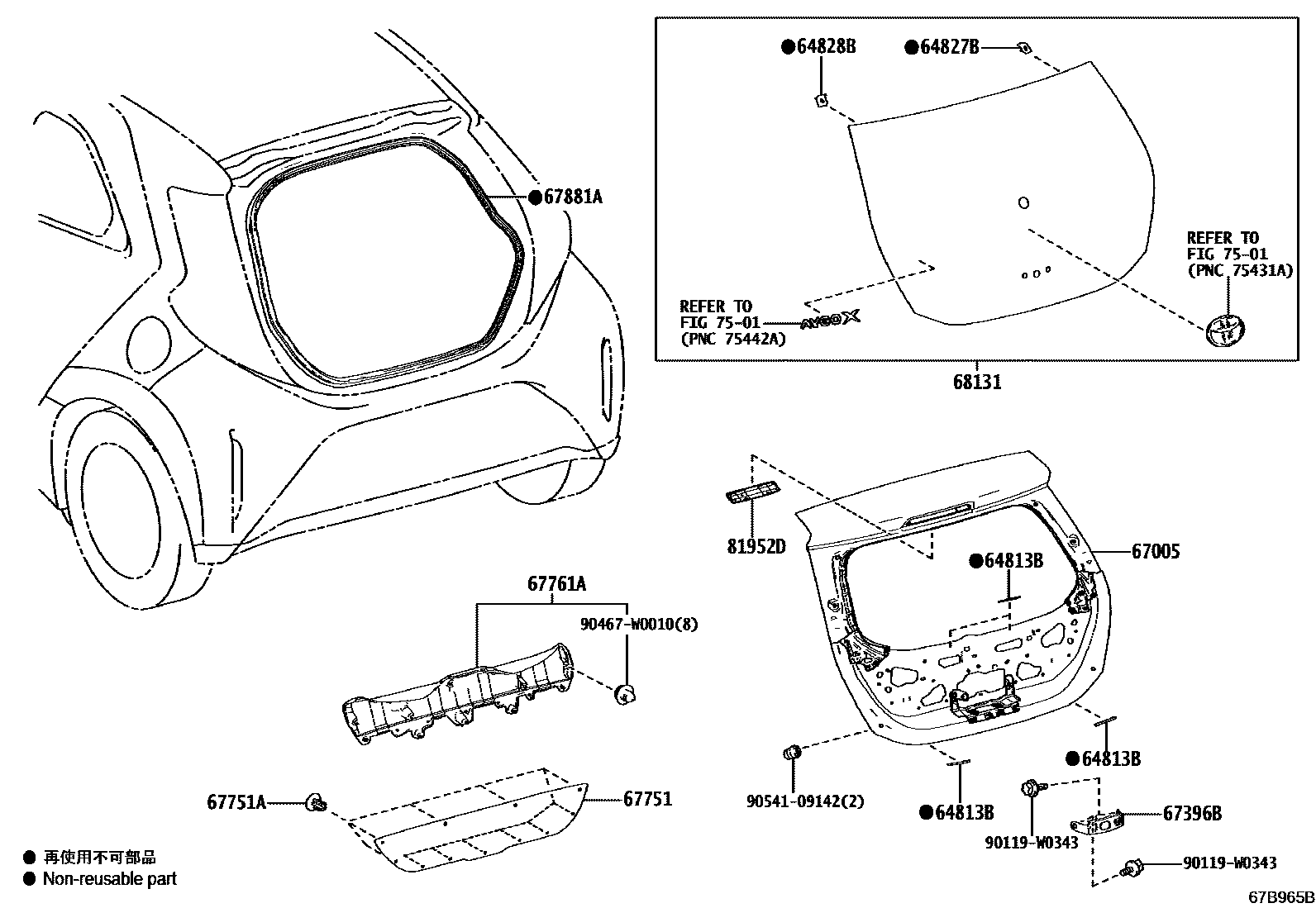

Toyota AYGO X — BACK DOOR PANEL & GLASS

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iKGB70..LHD..R¥870202203-202401

main56117-50140iKGB70..RHD;KGB70..LHD..(G,K,N)¥870202203

64827BCLIP, BACK WINDOW GLASS, RH

main64827-0H020iKGB70..LHD..R202203-202401

main64827-0H020iKGB70..RHD;KGB70..LHD..(G,K,N)202203

64828BCLIP, BACK WINDOW GLASS, LH

main64828-0H010iKGB70..LHD..R202203-202401

main64828-0H010iKGB70..RHD;KGB70..LHD..(G,K,N)202203

67005PANEL SUB-ASSY, BACK DOOR

main67005-0H030iKGB70..LHD..R202203-202401

main67005-0H030iKGB70..RHD;KGB70..LHD..(G,K,N)202203

67396BSTIFFENER, BACK DOOR

main67396-0H010iKGB70..LHD..R202203-202401

main67396-0H010iKGB70..RHD;KGB70..LHD..(G,K,N)202203

67751BOARD, BACK DOOR TRIM

main67751-0H010-C1iKGB70..LHD..R202203-202401

BLACK,TRIM2#

main67751-0H010-C1iKGB70..G202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main67751-0H010-C1iKGB70..G202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

main67751-0H010-C1iKGB70..G202203

BLACK,TRIM2#

67751ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-W0007iKGB70..LHD..R¥80202203-202401

main90467-W0007iKGB70..RHD;KGB70..LHD..(G,K,N)¥80202203

67761ACOVER, BACK DOOR TRIM

main67761-0H010-C0iKGB70..LHD..R202203-202401

BLACK,TRIM2#

main67761-0H010-C0iKGB70..G202203

BLACK,TRIM1#,3#,4#,5#,6#,8#,9#

main67761-0H010-C0iKGB70..G202203

BLACK,TRIM0#,1#,3#,4#,5#,6#,8#

main67761-0H010-C0iKGB70..G202203

BLACK,TRIM2#

67881AWEATHERSTRIP, BACK DOOR

main67881-0H030iKGB70..LHD..R202203-202401

main67881-0H030iKGB70..RHD;KGB70..LHD..(G,K,N)202203

68131GLASS, BACK DOOR

main68105-0H270iKGB70..LHD..R202203-202401

main68105-0H270iKGB70..LHD..N;KGB70..RHD..(N,R)202203

main68105-0H280iKGB70..G,K202203

BACK GLASS-PRIVACY

7501

81952DCOVER, REAR LAMP

main81952-0H030iKGB70..LHD..R202203-202401

main81952-0H030iKGB70..RHD;KGB70..LHD..(G,K,N)202203

90119W0343

main90119-W0343

90467W0010

main90467-W0010

9054109142

main90541-09142¥100

15 parts on this diagram · 1 diagram in section
